CAT40 ER11 3.5 TAPERED NOSE COLLET CHUCK TOOL HOLDER $133.95

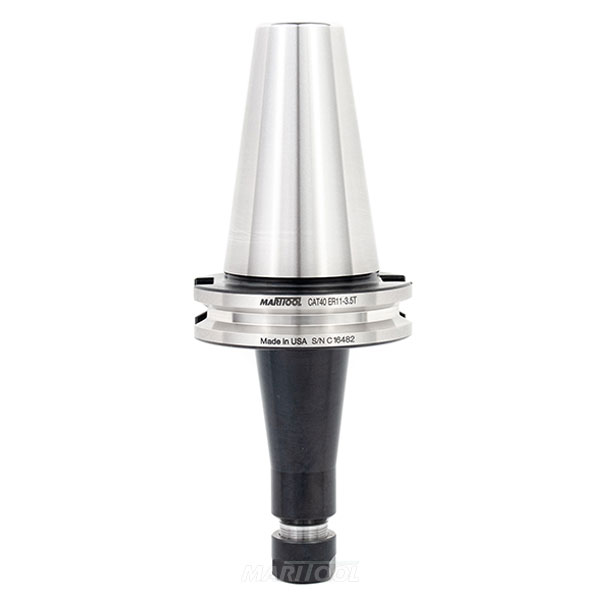

CAT40 ER11 3.5 TAPERED NOSE COLLET CHUCK TOOL HOLDER
Click to enlarge

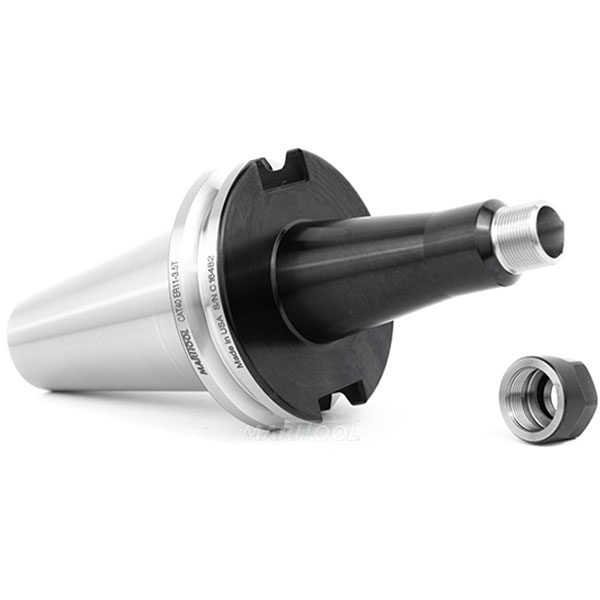

CAT40 ER11 3.5 TAPERED NOSE COLLET CHUCK TOOL HOLDER

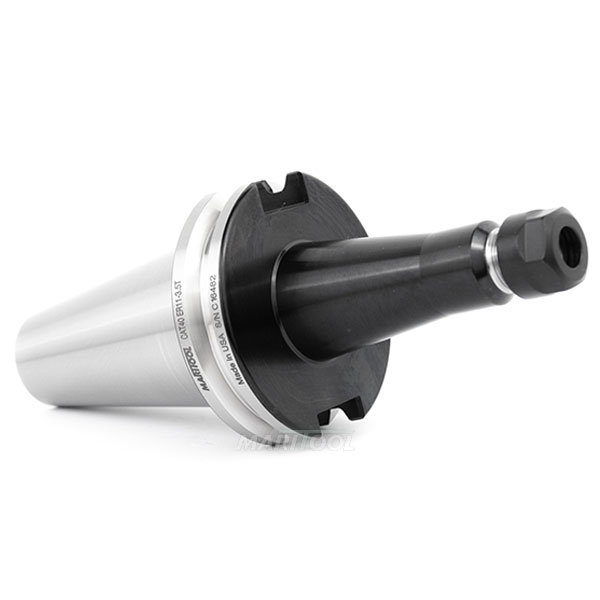

Click to enlarge 		CAT40 ER11 3.5 TAPERED NOSE COLLET CHUCK TOOL HOLDER
Click to enlarge

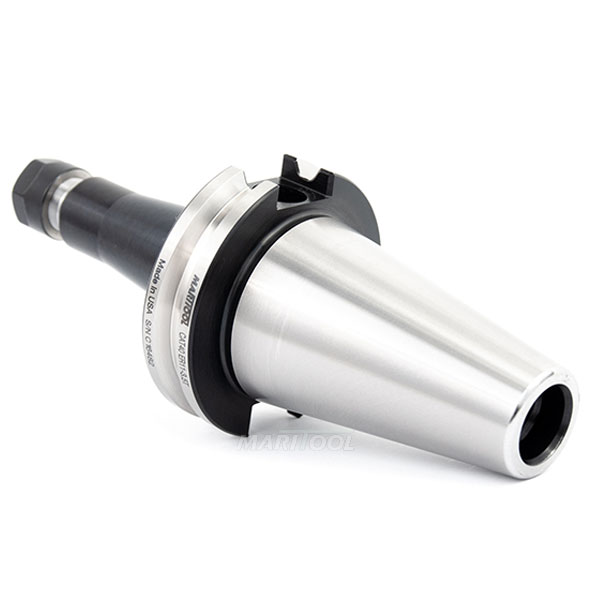

CAT40 ER11 3.5 TAPERED NOSE COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. CAT40-ER11-3.5T
Price: $133.95
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate
Available Downloads for CAT40-ER11-3.5T
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • Collet Chuck accepts all ER11 collets
  • Works on all CAT 40 machines
  • Not threaded for internal stop screw
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Tool Holder is Balanced to G2.5 at 20,000 rpms
  • Gage length is 3.5 inches
  • Collet nut is included
  • Coolant thru capability
  • Concentricity is less than .0001 at collet face
  • Rear thread for pull stud is 5/8—11
  • MariTool Part# is CAT40-ER11-3.5T
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .020-.276 inches
Collet Size:  ER 11
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  3.5
Material:  Hardened Alloy Steel
Rear Thread:  5/8-11
Taper:  CAT40
