CAT40 ER11 4.0 MINI NUT COLLET CHUCK TOOL HOLDER $149.80

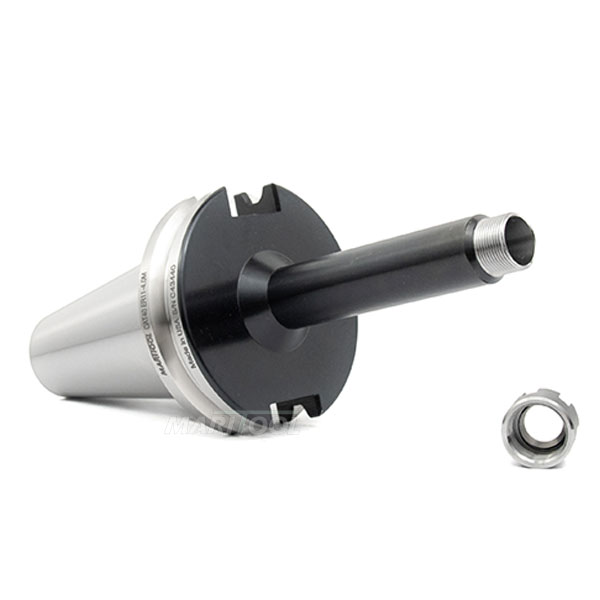

CAT40 ER11 4.0 MINI NUT COLLET CHUCK TOOL HOLDER
Click to enlarge

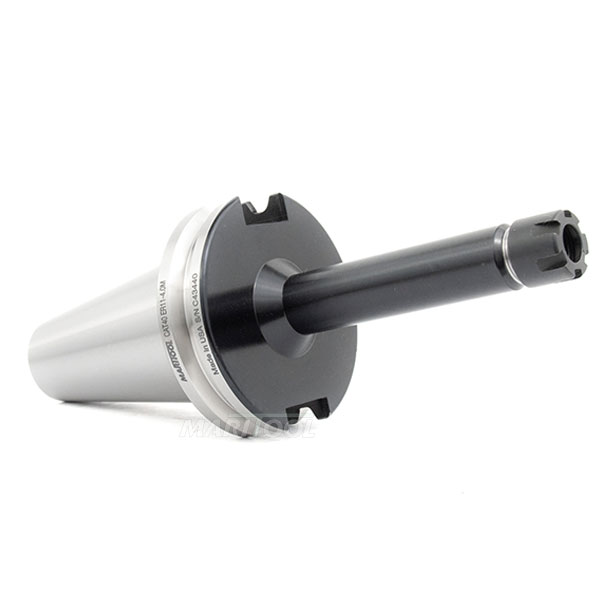

CAT40 ER11 4.0 MINI NUT COLLET CHUCK TOOL HOLDER

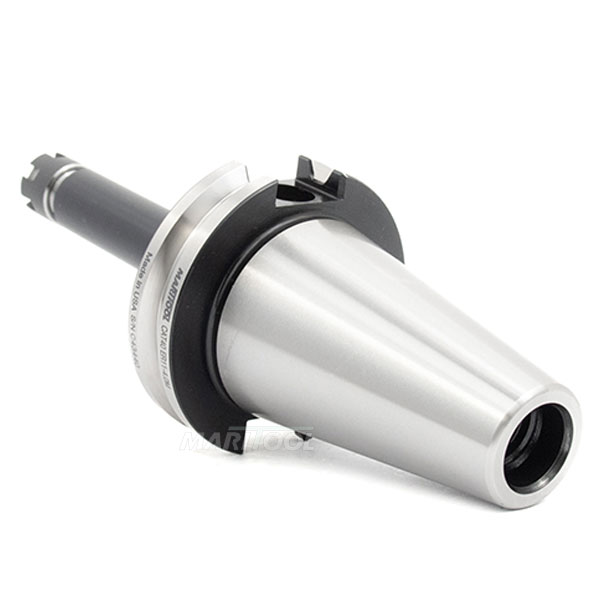

Click to enlarge 		CAT40 ER11 4.0 MINI NUT COLLET CHUCK TOOL HOLDER
Click to enlarge

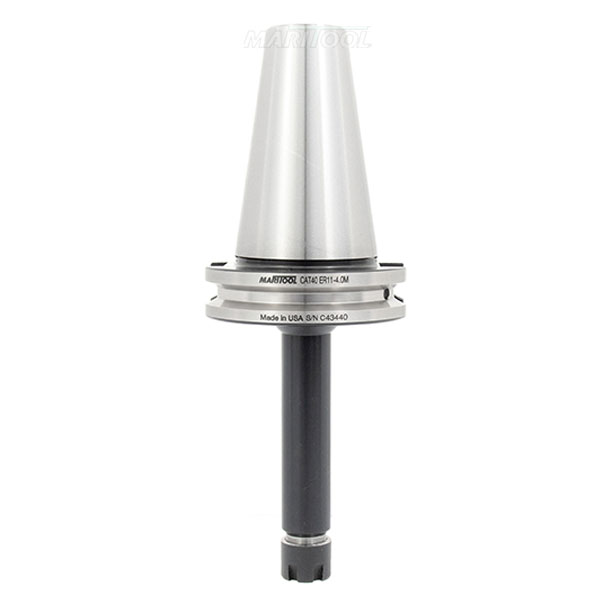

CAT40 ER11 4.0 MINI NUT COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. CAT40-ER11-4.0M
Price: $149.80
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate
Available Downloads for CAT40-ER11-4.0M
PDF file  STP file  DXF file  DWG file
Product Info

View complete catalog page

  • Collet Chuck accepts all ER11 collets
  • Works on all CAT40 machines
  • Not threaded for internal stop screw
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Tool Holder is Balanced to G2.5 at 20,000 rpms
  • Tool holder is coolant thru the center
  • Gage length is 4.0 inches
  • Concentricity is less than .0001 at collet face
  • Rear thread for pull stud is 5/8—11
  • Collet nut is included
  • Collet nut is .640 dia. and uses wrench part number ER11M-WRENCH
  • Must use ER11M collet wrench
  • MariTool Part# is CAT40-ER11-4.0M
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .020-.276 inches
Collet Nut:  ER11M
Collet Size:  ER 11
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  4.0
Material:  Hardened Alloy Steel
Rear Thread:  5/8-11
Taper:  CAT40
