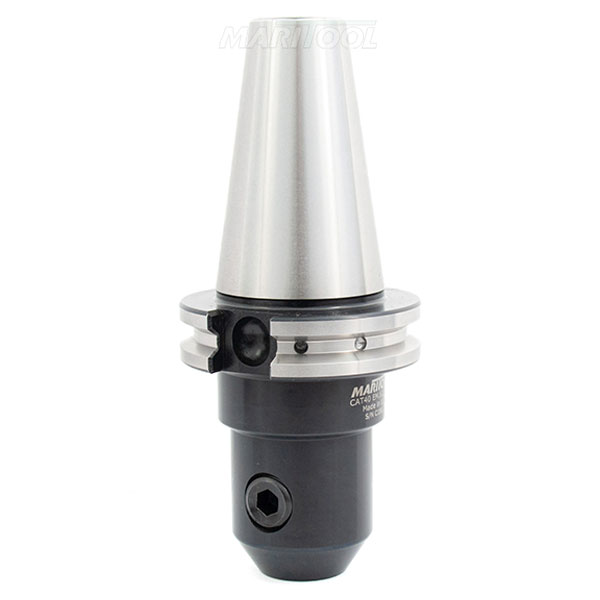

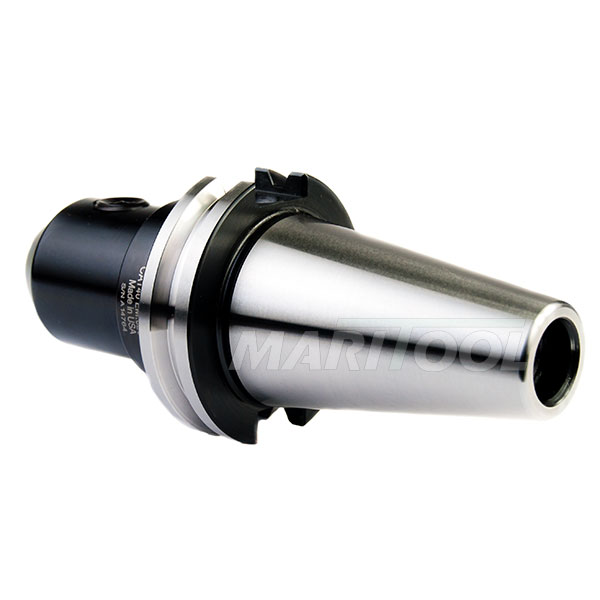

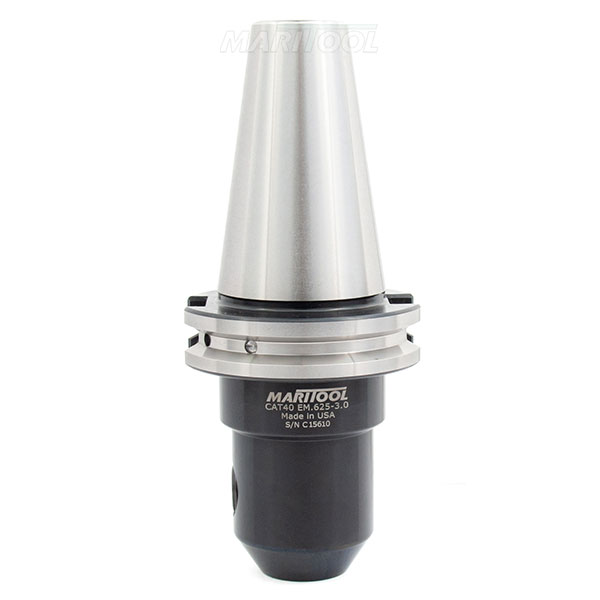

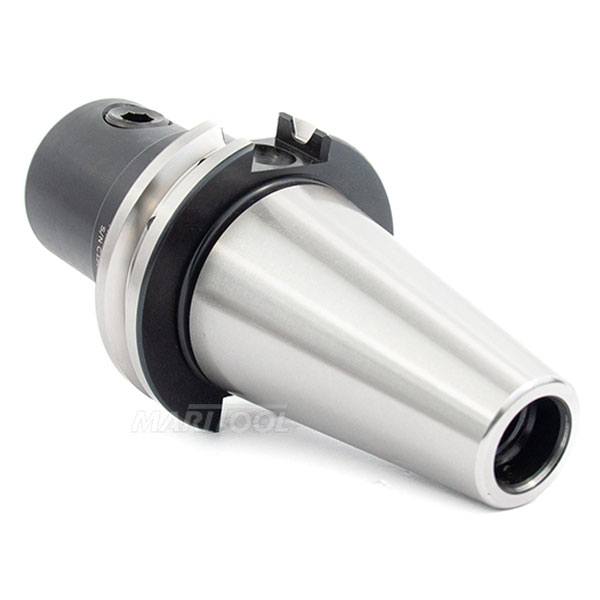

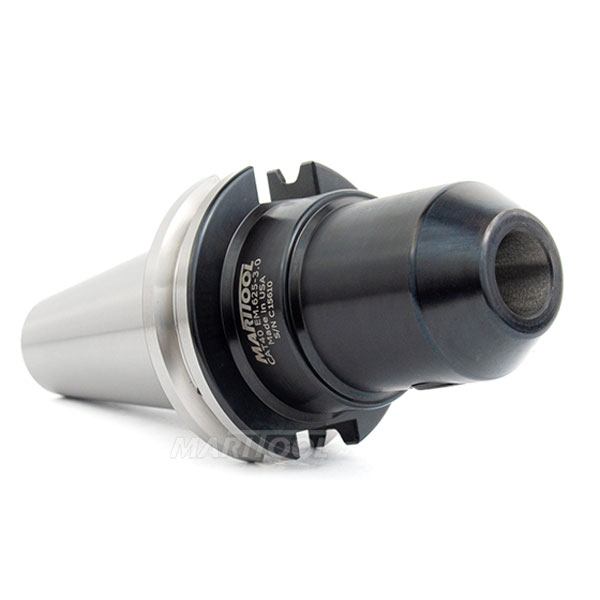

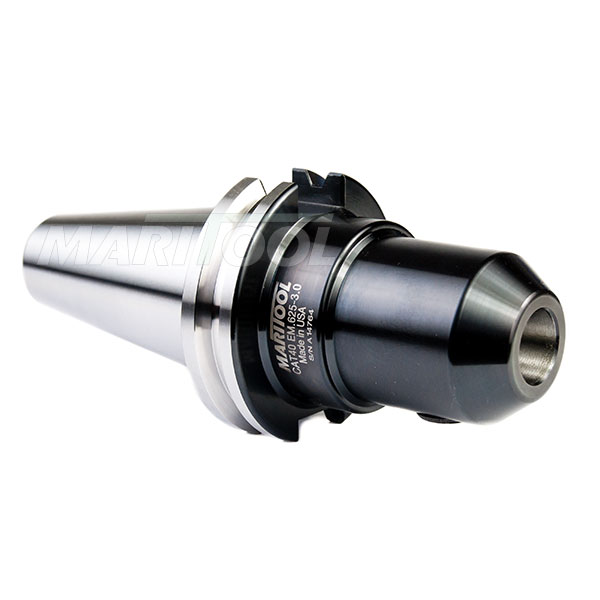

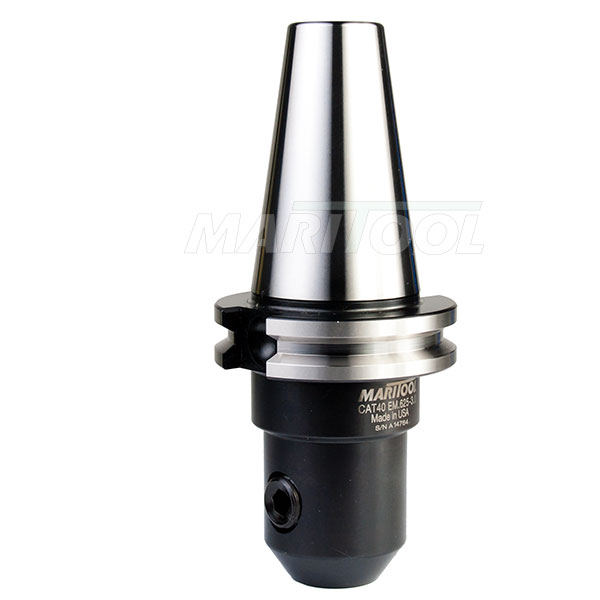

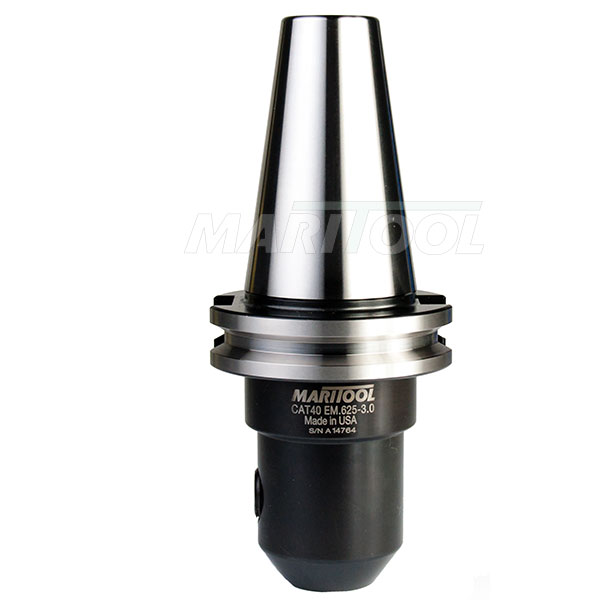

CAT40 5/8 END MILL TOOL HOLDER .625-3.0 $94.15
CAT40 5/8 END MILL TOOL HOLDER .625-3.0
Click to enlarge


CAT40 5/8 END MILL TOOL HOLDER .625-3.0
Click to enlarge
CAT40 5/8 END MILL TOOL HOLDER .625-3.0
Click to enlarge
CAT40 5/8 END MILL TOOL HOLDER .625-3.0
Click to enlarge
Item No. CAT40-EM.625-3.0
Price: $94.15
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Available Downloads for CAT40-EM.625-3.0
STP file  DWG file  DXF file  PDF file
Product Info

View complete catalog page

  • Works on all CAT 40 Machines
  • This tool holder accepts all .625 shank tooling
  • All critical surfaces precision ground
  • Made from alloy steel hardened to 54 – 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 3 inches
  • Concentricity is less than .0001
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# is CAT40-EM.625-3.0

Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  .0001
Finish:  Black Oxide
Gage Length:  3.0
Material:  Hardened Alloy Steel
Rear Thread:  5/8-11
Shank Size:  .625
Taper:  CAT40
