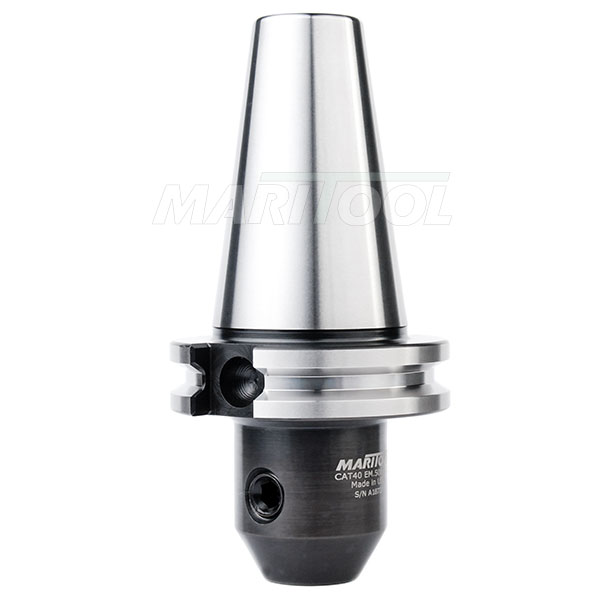

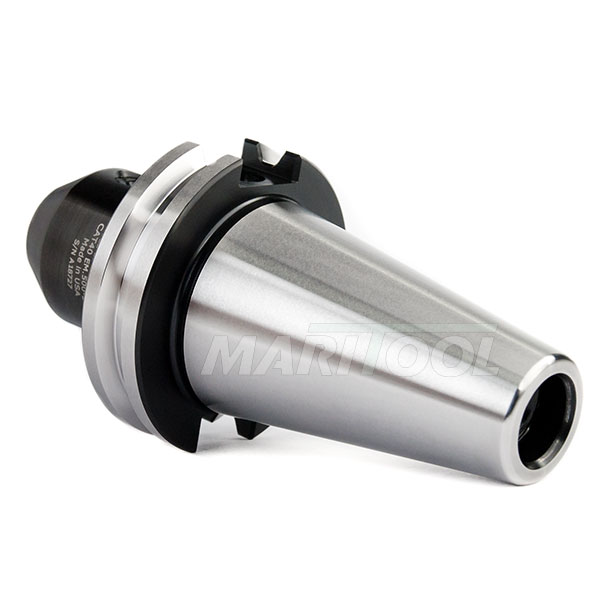

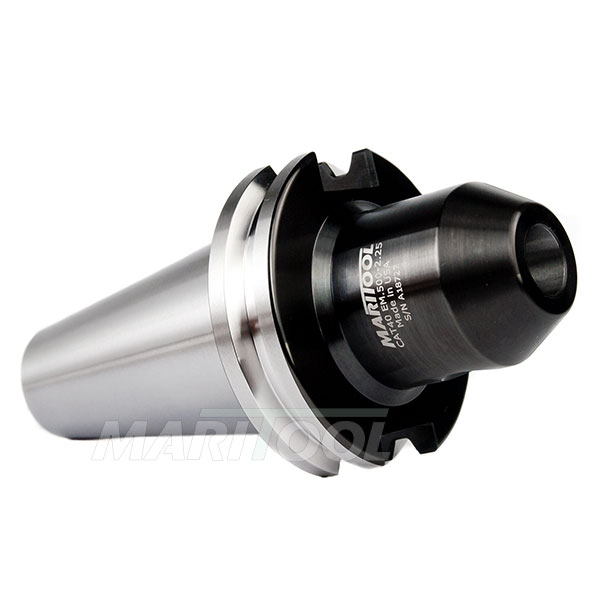

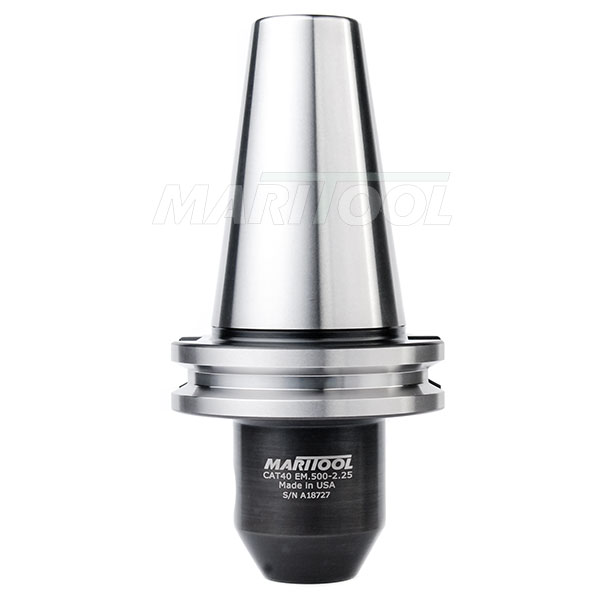

CAT40 1/2 END MILL TOOL HOLDER .500-2.25 $94.15
CAT40 1/2 END MILL TOOL HOLDER .500-2.25
Click to enlarge

CAT40 1/2 END MILL TOOL HOLDER .500-2.25
Click to enlarge 		CAT40 1/2 END MILL TOOL HOLDER .500-2.25
Click to enlarge
CAT40 1/2 END MILL TOOL HOLDER .500-2.25
Click to enlarge
Item No. CAT40-EM.500-2.25
Price: $94.15
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-EM.500-2.25
PDF file  STP file  DXF file  DWG file
Product Info

View complete catalog page

  • This tool holder accepts all .500 shank tooling
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 2.25 inches
  • Nose diameter is 1.375 inches
  • Concentricity is less than .0001
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# is CAT40-EM.500-2.25
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  .0001
Finish:  Black Oxide
Gage Length:  2.25
Material:  Hardened Alloy Steel
Rear Thread:  5/8-11
Shank Size:  .500
Taper:  CAT40
