CAT40 3/16 END MILL TOOL HOLDER .1875-2.25NS $95.00
CAT40 3/16 END MILL TOOL HOLDER .1875-2.25NS
Click to enlarge

CAT40 3/16 END MILL TOOL HOLDER .1875-2.25NS
Click to enlarge 		CAT40 3/16 END MILL TOOL HOLDER .1875-2.25NS
Click to enlarge
CAT40 3/16 END MILL TOOL HOLDER .1875-2.25NS
Click to enlarge
Item No. CAT40-EM.1875-2.25NS
Price: $95.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-EM.1875-2.25NS
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • This end mill holder accepts all .1875 shank tooling
  • Nose diameter is .875 Inches

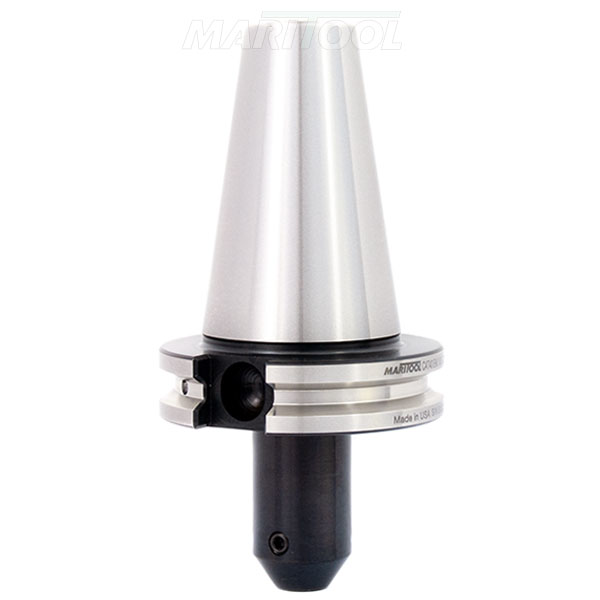

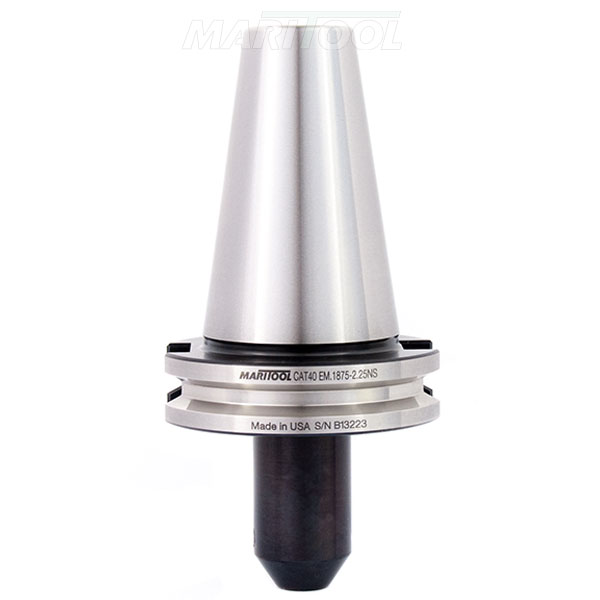

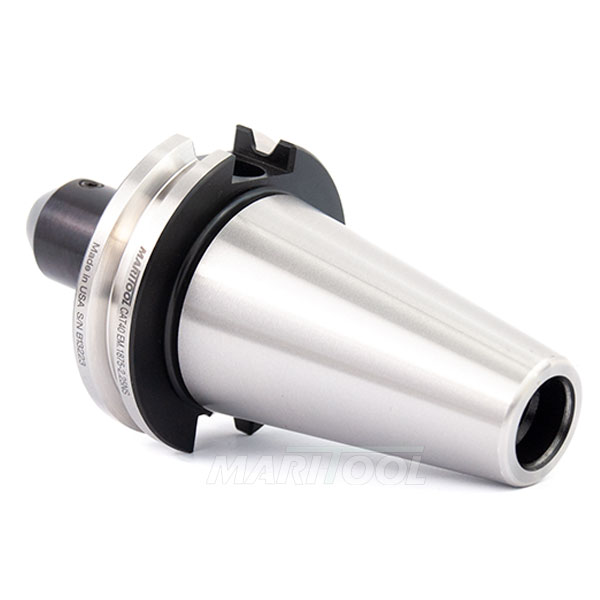

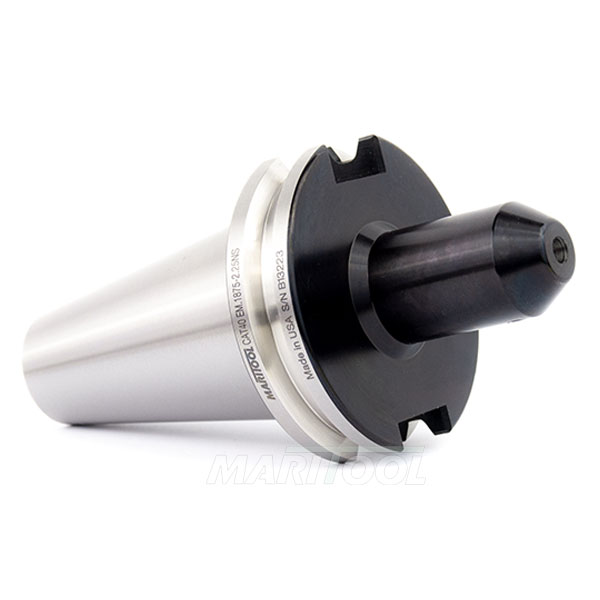

  • Nose diameter goes all the way to the flange. See pictures
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 2.250 inches
  • Concentricity is less than .0001
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# is CAT40-EM.1875-2.25NS
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  .0001
Finish:  Black Oxide
Gage Length:  2.250
Material:  Hardened Alloy Steel
Nose Diameter:  .875 Inches
Rear Thread:  5/8-11
Shank Size:  .1875
Taper:  CAT40
