CAT40 3/16 END MILL TOOL HOLDER .1875-3.0 $94.15

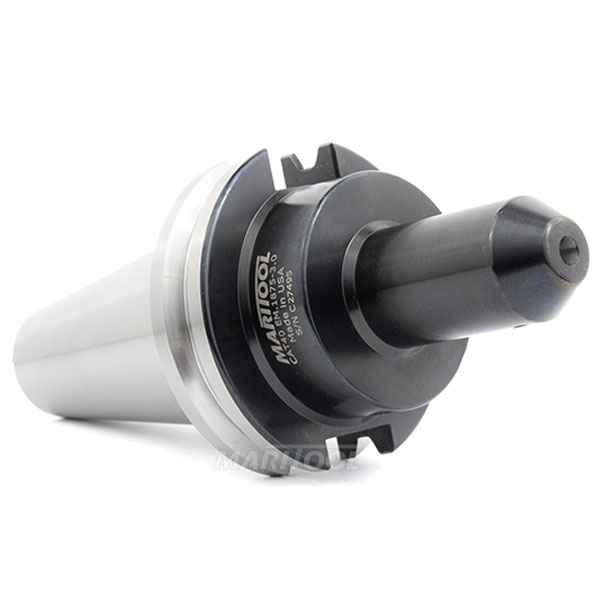

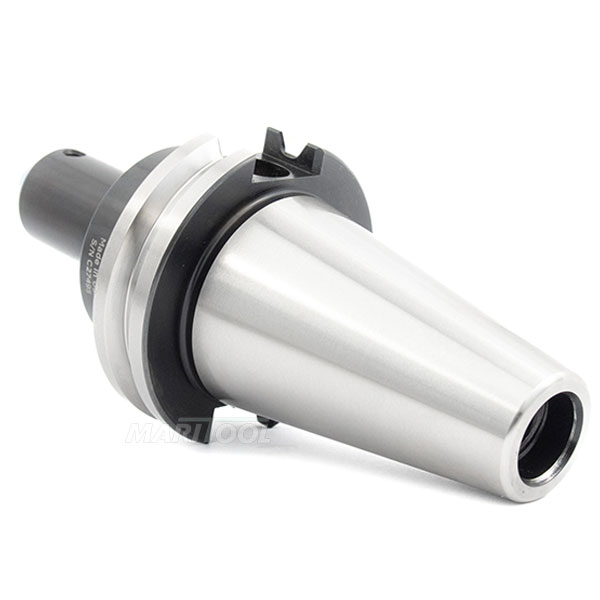

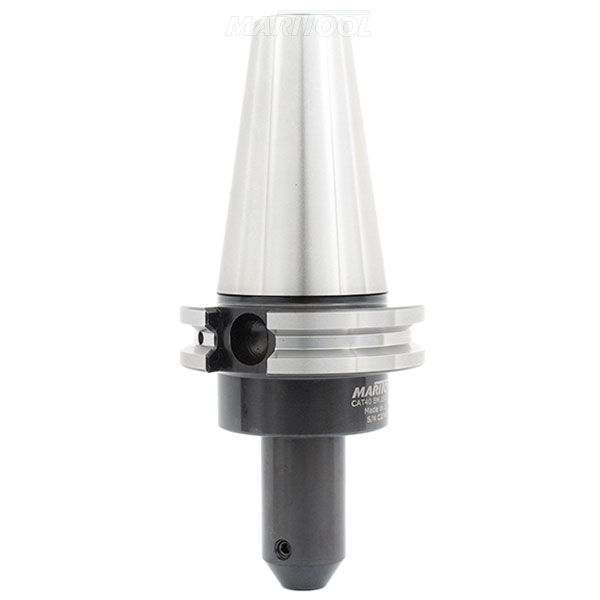

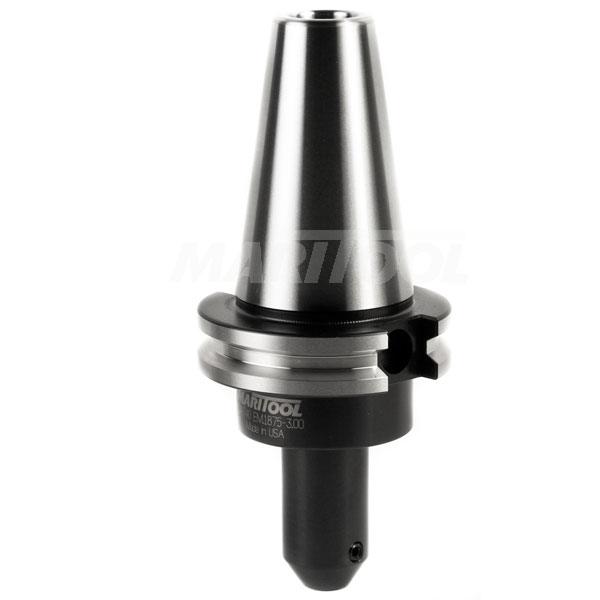

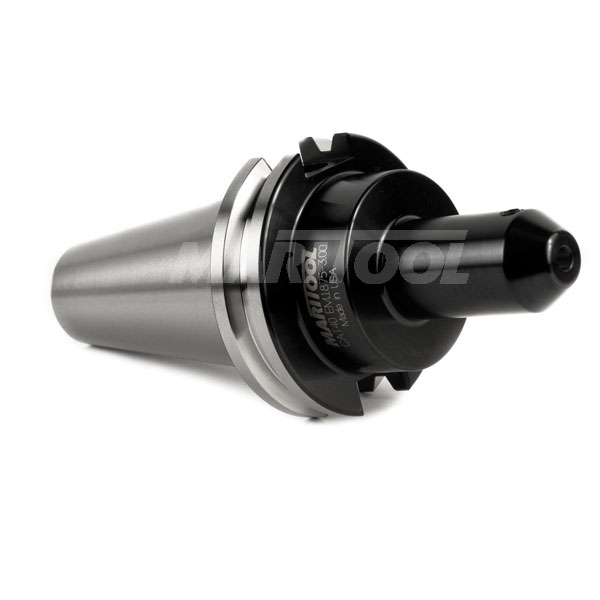

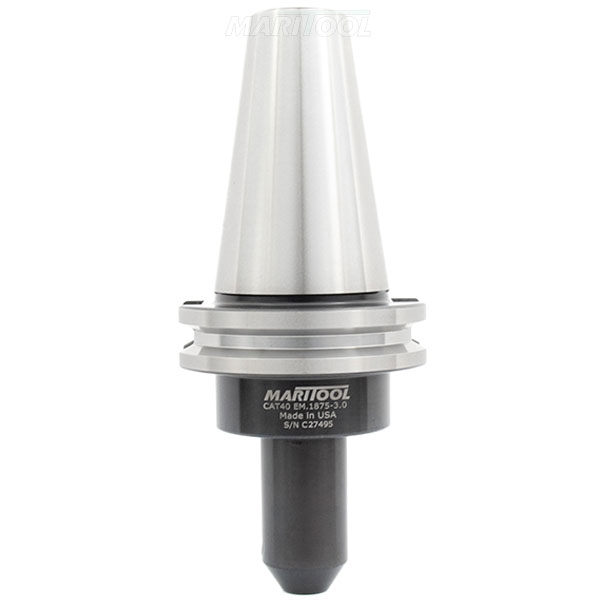

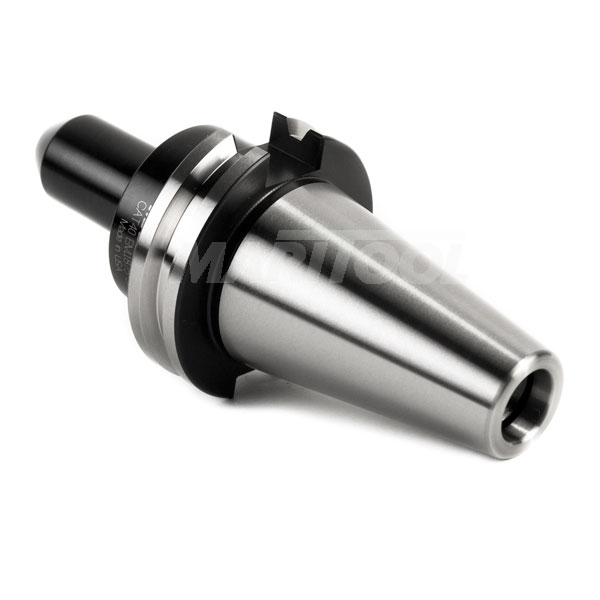

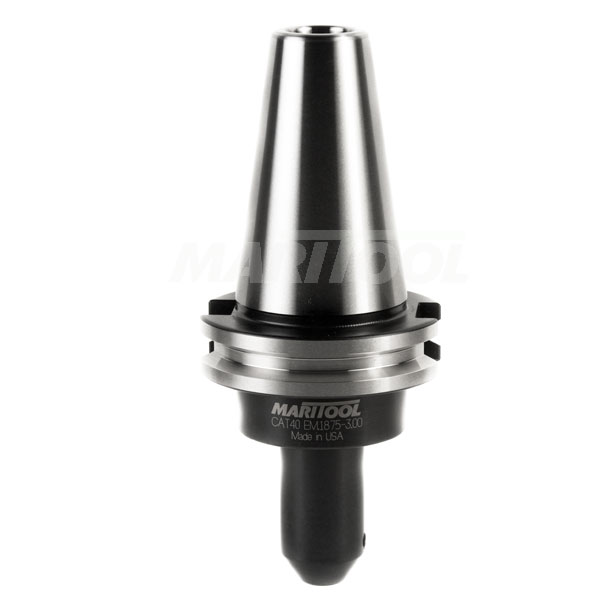

CAT40 3/16 END MILL TOOL HOLDER .1875-3.0
Click to enlarge


CAT40 3/16 END MILL TOOL HOLDER .1875-3.0
Click to enlarge
CAT40 3/16 END MILL TOOL HOLDER .1875-3.0
Click to enlarge
CAT40 3/16 END MILL TOOL HOLDER .1875-3.0
Click to enlarge
Item No. CAT40-EM.1875-3.0
Price: $94.15
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Available Downloads for CAT40-EM.1875-3.0
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • This end mill holder accepts all .1875 shank tooling
  • Nose diameter is .875 Inches
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 3.0 inches
  • Concentricity is less than .0001
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# is CAT40-EM.1875-3.0

Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  .0001
Finish:  Black Oxide
Gage Length:  3.0
Material:  Hardened Alloy Steel
Nose Diameter:  .875 Inches
Rear Thread:  5/8-11
Shank Size:  .1875
Taper:  CAT40
