CAT40 1/8 Hydraulic Chuck .125-2.5 $247.70

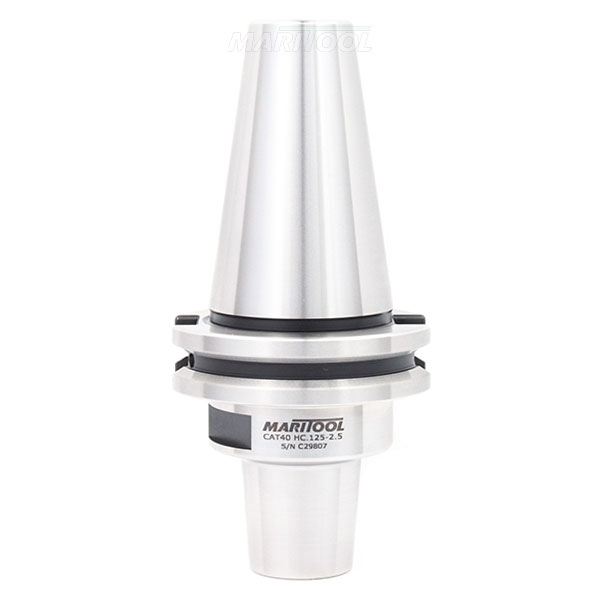

CAT40 1/8 Hydraulic Chuck .125-2.5
Click to enlarge

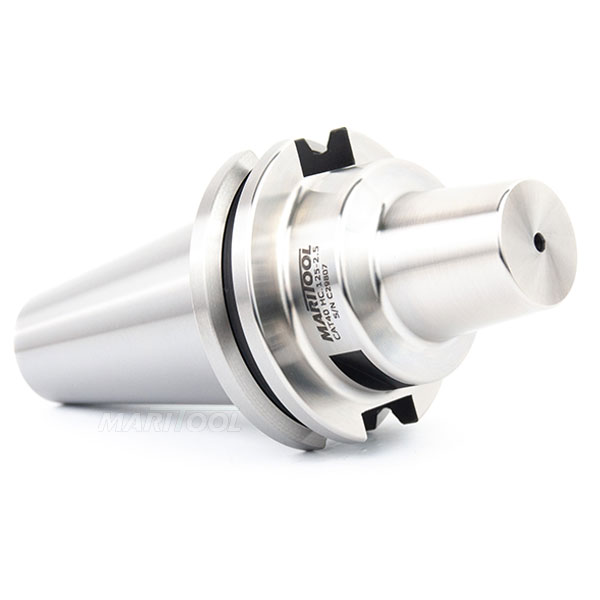

CAT40 1/8 Hydraulic Chuck .125-2.5
Click to enlarge

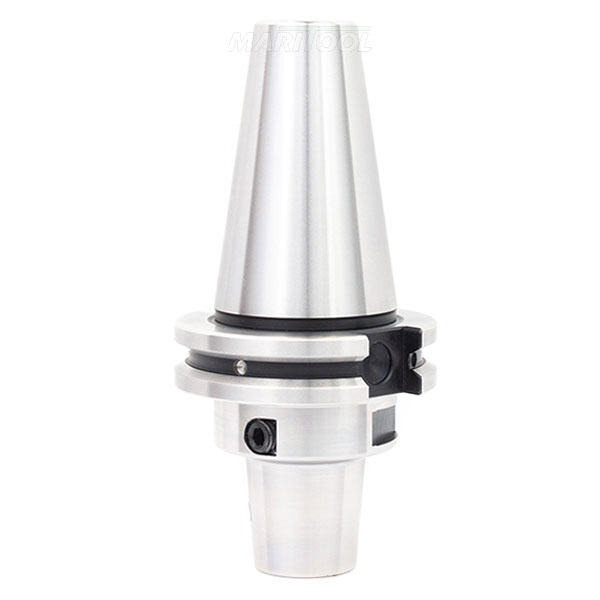

CAT40 1/8 Hydraulic Chuck .125-2.5
Click to enlarge

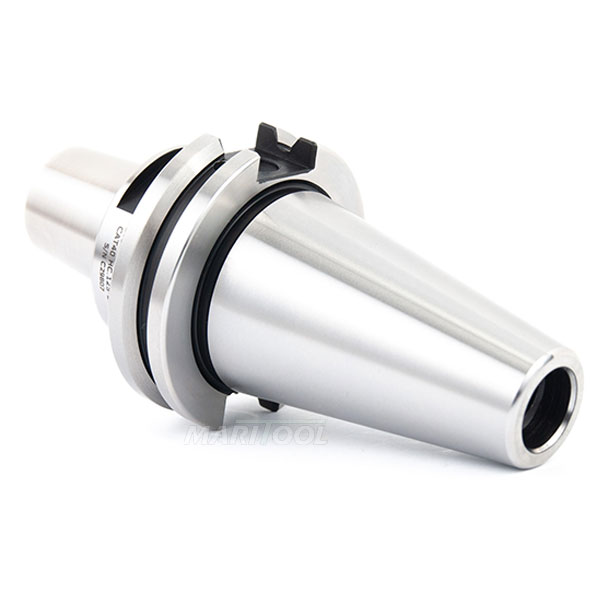

CAT40 1/8 Hydraulic Chuck .125-2.5
Click to enlarge
Item No. CAT40-HC.125-2.5
Price: $247.70
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate

Available Downloads for CAT40-HC.125-2.5
PDF file  DXF file  DWG file
Product Info

View complete catalog page

Hydraulic Holders have the best dampening abilities of all holders resulting in....

  • Minimal noise emissions
  • Increased tool life
  • Improved surface finish and less chatter
  • Less chipping of sharp corner tooling

Product Details

  • Works on all CAT40 Machines
  • These holders are maintenance free
  • Fast tool change, simply insert tool and tighten screw until it stops
  • This Tool Holder has a thru hole, coolant thru capable
  • Maximum operating temperature 120 deg Fahrenheit
  • Super accurate .0001 TIR or less at 4x diameter
  • Balanced to G2.5 @ 25,000 rpms
  • For .125 shank tooling only
  • Unlimited shank depth, this holder does not have a rear stop
  • Shank must be inserted min .500" deep for proper clamping
  • 4mm allen key is not included but available here
  • Gage length is 2.5 Inches
  • View CAT40 Pull Studs

Product Specifications
Balance Spec:  G2.5 @ 25,000 rpms
Concentricity:  < .0001
Coolant Thru:  Yes
Gage Length:  2.5
Hydraulic Type:  HC
Material:  Hardened Alloy Steel
Rear Thread:  5/8-11
Shank Size:  .125
Taper:  CAT40
