CAT40 SK16 2.0 High Torque Collet Chuck Tool Holder $147.80

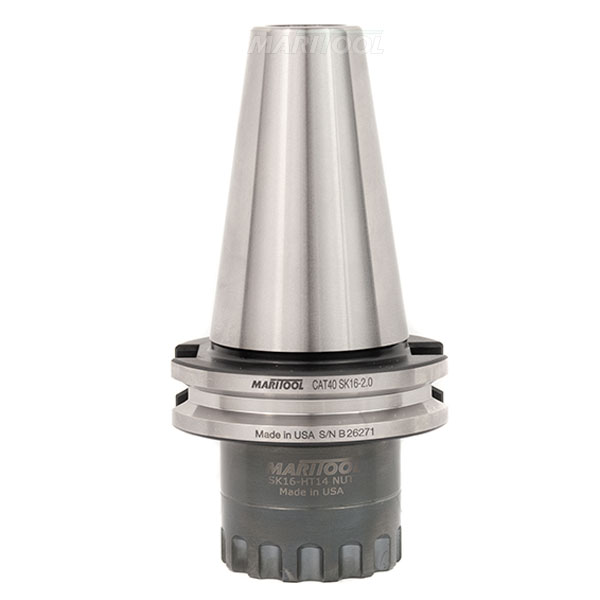

CAT40 SK16 2.0 High Torque Collet Chuck Tool Holder
Click to enlarge

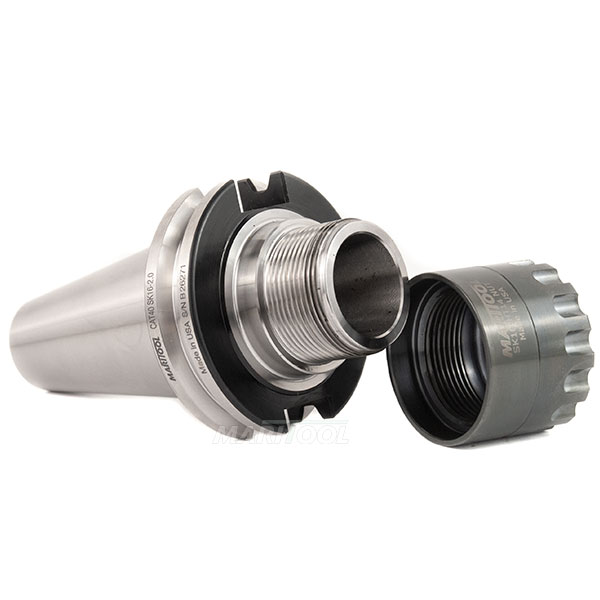

CAT40 SK16 2.0 High Torque Collet Chuck Tool Holder
Click to enlarge

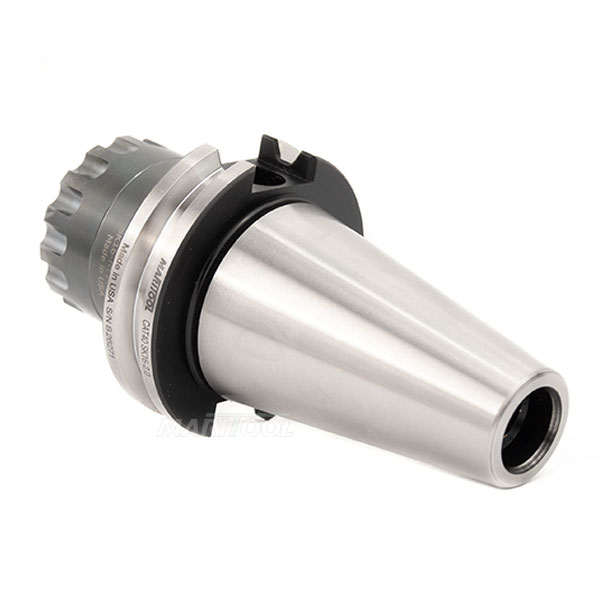

CAT40 SK16 2.0 High Torque Collet Chuck Tool Holder
Click to enlarge

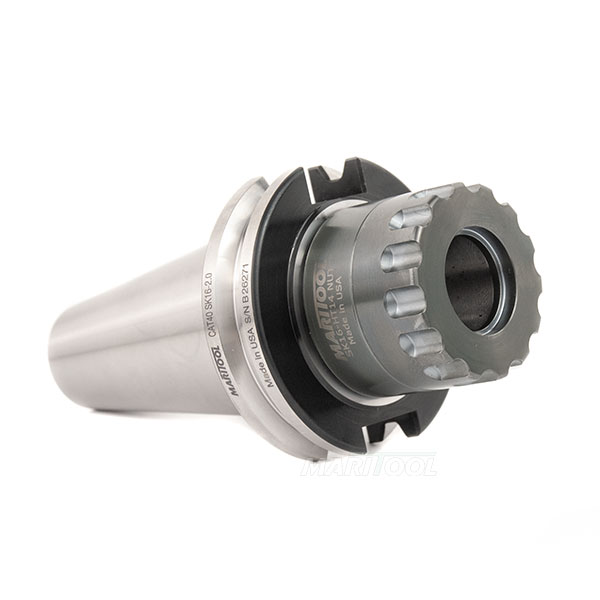

CAT40 SK16 2.0 High Torque Collet Chuck Tool Holder
Click to enlarge
Item No. CAT40-SK16-2.0-HT
Price: $147.80
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Available Downloads for CAT40-SK16-2.0-HT
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • Recommended max torque for SK16-HT: 130 FT-LBS
  • With SK16-HT nut high metal removal rates are possible without shank slippage
  • Collet Chuck accepts all SK16 collets
  • Works on all CAT 40 machines
  • Threaded for stop screw type 2 (not included)
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Tool Holder is balanced to G2.5 at 20,000 rpms
  • Gage length is 2.0 inches
  • Concentricity is less than .0001 at collet face
  • High Torque Collet nut is included
  • Uses HT14-TWA torque wrench adaptor (not included)
  • We also recommend CTW-45-220 torque wrench for proper tightening
  • Coolant thru capability
  • Rear thread for pull stud is 5/8—11
  • MariTool Part# is CAT40-SK16-2.0-HT

Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .09-.630 inches
Collet Size:  SK16
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  2.0
Material:  Hardened Alloy Steel
Rear Thread:  5/8-11
Taper:  CAT40
