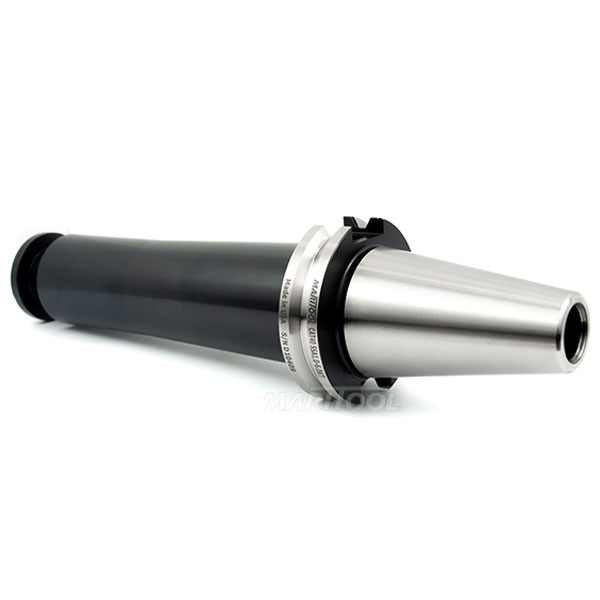

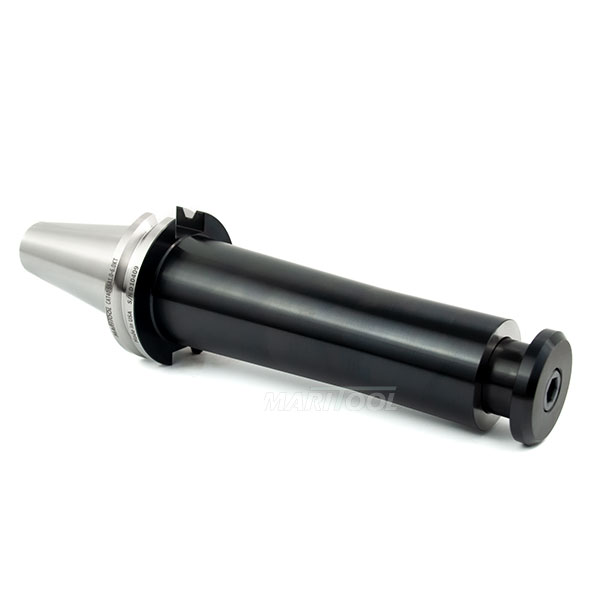

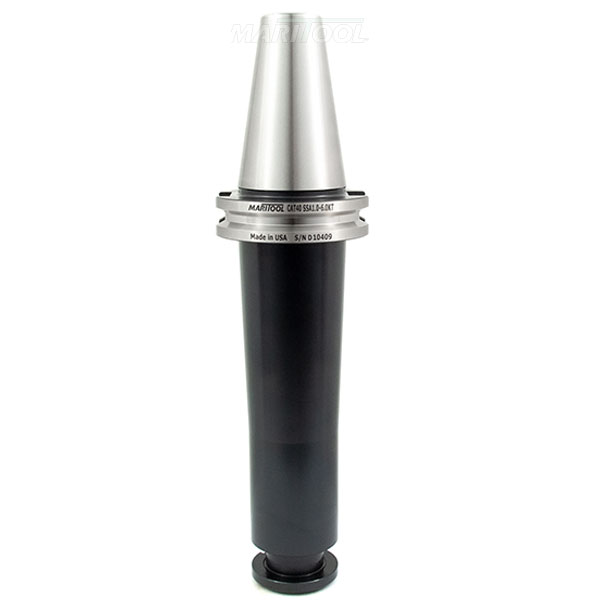

CAT40-SSA1.0-6.0 Tapered Nose Keyed Slitting Saw Arbor Holder

Click to enlarge

CAT40-SSA1.0-6.0 Tapered Nose Keyed Slitting Saw Arbor Holder

Item No.	CAT40-SSA1.0-6.0KT
Price:	$245.80
Shipping:	In Stock - Ships Same Day *
Quantity:
* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

PDF file

PDF file

STP file

DXF file

DWG file

View complete catalog page

Works on all CAT40 Machines
Keyed slitting saw holder, for saws with 1.0" arbor hole
Concentricity is less than .0001 at arbor hole
Balanced to G2.5 @20,000 rpms
Gage length is 6.0 inches

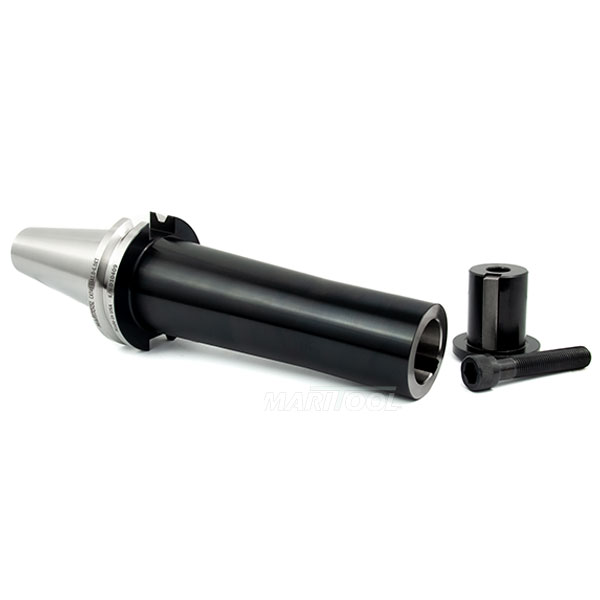

Screw for cap is 3/8-24 X 1-1/4 long
Saw cap is .250 Inches thick and .9999 diameter boss is .730 long
Nose dia and saw cap are 1.5 Inches diameter
Width of removable drive key is .250"
Included cap SSA1.0-CAPK1 is not coolant thru capable
Saw stack range with included cap is 0-.33
Replacement cap is available here
Additional length caps and coolant thru caps are available here
Rear thread for pull stud is 5/8-11
MariTool Part# is CAT40-SSA1.0-6.0KT

Arbor Diameter:	1.0
Balance Spec:	G2.5 @ 20,000 rpms
Concentricity:	< .0001 at Arbor Hole
Finish:	Black Oxide
Gage Length:	6.0 Tapered
Keyed:	Yes
Material:	Hardened Alloy Steel
Nose Diameter:	1.5
Rear Thread:	5/8-11
Taper:	CAT40
Weight:	4.5
