CAT50 1" Dual Contact Hydraulic Chuck 1.0-3.0 $361.25

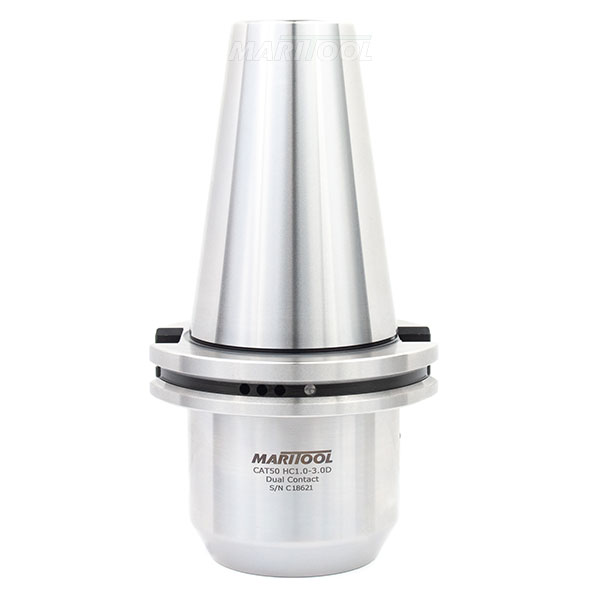

CAT50 1" Dual Contact Hydraulic Chuck 1.0-3.0
Click to enlarge

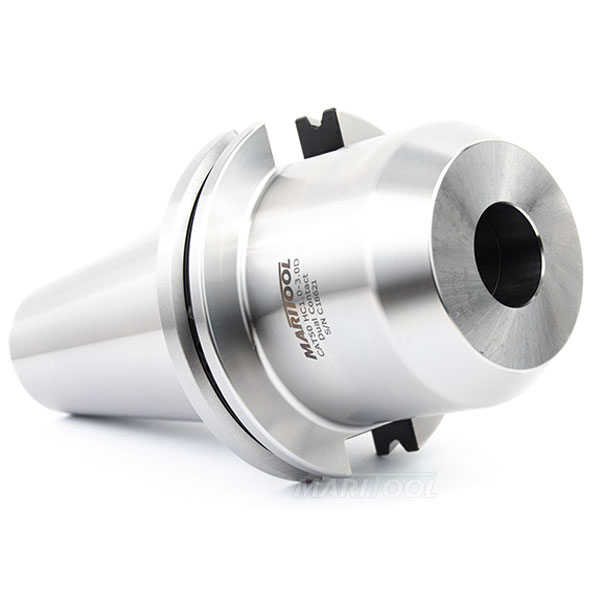

CAT50 1" Dual Contact Hydraulic Chuck 1.0-3.0
Click to enlarge

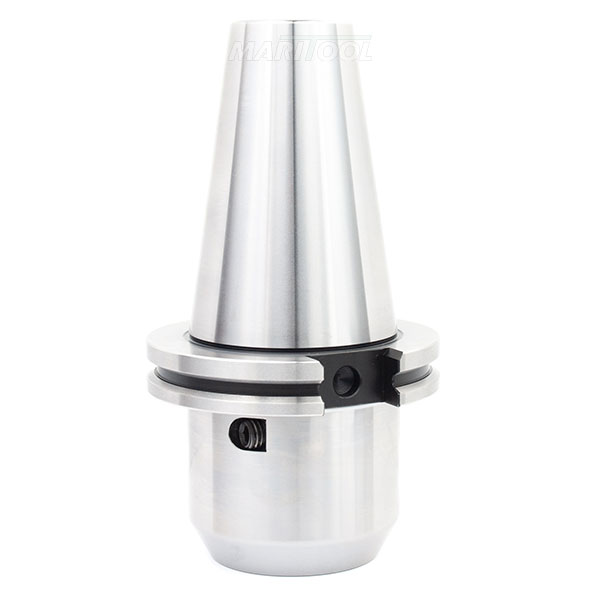

CAT50 1" Dual Contact Hydraulic Chuck 1.0-3.0
Click to enlarge

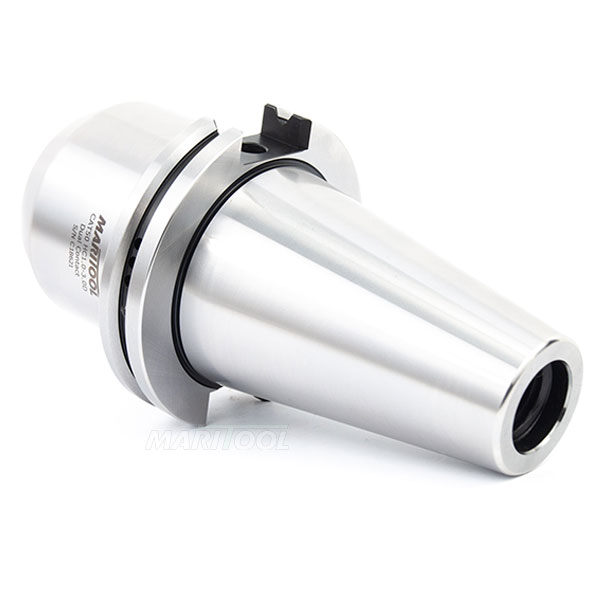

CAT50 1" Dual Contact Hydraulic Chuck 1.0-3.0
Click to enlarge
Item No. CAT50-HC1.0-3.0D
Price: $361.25
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Available Downloads for CAT50-HC1.0-3.0D
PDF file  DXF file  DWG file
Product Info

View complete catalog page

Hydraulic Holders have the best dampening abilities of all holders resulting in....

  • Minimal noise emissions
  • Increased tool life
  • Improved surface finish and less chatter
  • Less chipping of sharp corner tooling

Product Details

  • These holders are maintenance free
  • Fast tool change, simply insert tool and tighten screw until it stops
  • Holder and stop screw have thru holes, coolant thru capable
  • Sleeves are available for holding different diameters
  • MariTool offers standard and coolant sealing sleeves
  • Super accurate .0001 TIR or less at 4x diameter
  • Works on all CAT 50 machines with Dual Contact spindles
  • Compatible with BIG-PLUS® spindles
  • Balanced to G2.5 @ 25,000 rpms
  • Max shank without sleeve is 1.00 Inches
  • Uses HC1.0-XXX sleeves available here
  • 5mm allen key is not included but available here
  • Bore depth is 4.0 Inches
  • Shank must be inserted min 1.375 deep
  • When using sleeve shank must be in at least 80% of sleeve bore
  • Gage length is 3.0 Inches
  • Maximum operating temperature 140 deg Fahrenheit
  • Internal stop screw is included

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp. and is used only for identification purposes.
Compatible with BIG-PLUS® spindles, but not licensed.

Product Specifications
Balance Spec:  G2.5 @ 25,000 rpms
Concentricity:  < .0001
Coolant Thru:  Yes
Gage Length:  3.0
Material:  Hardened Alloy Steel
Rear Thread:  1" X 8
Shank Size:  1.0
Taper:  CAT50 Dual Contact
