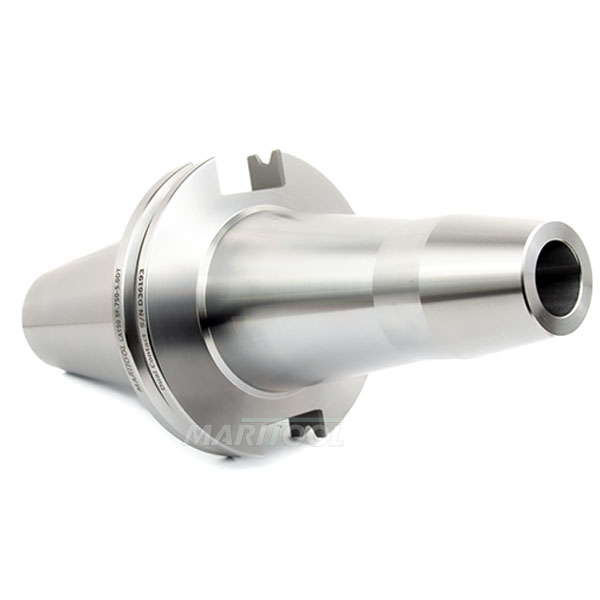

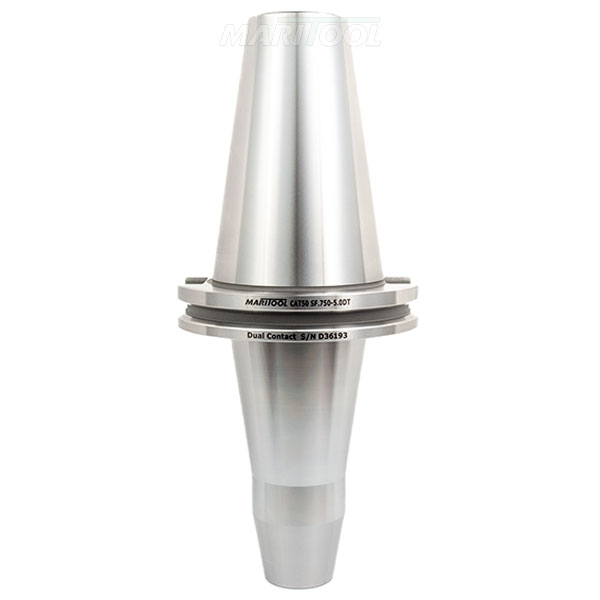

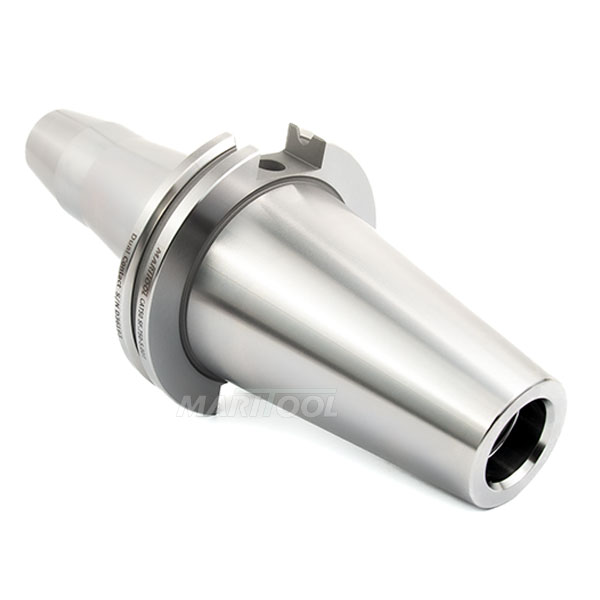

CAT50 3/4 DUAL CONTACT TAPERED NOSE SHRINK FIT TOOL HOLDER .750-5.0 $342.00
CAT50 3/4 DUAL CONTACT TAPERED NOSE SHRINK FIT TOOL HOLDER .750-5.0
Click to enlarge

CAT50 3/4 DUAL CONTACT TAPERED NOSE SHRINK FIT TOOL HOLDER .750-5.0
Click to enlarge 		CAT50 3/4 DUAL CONTACT TAPERED NOSE SHRINK FIT TOOL HOLDER .750-5.0
Click to enlarge
Item No. CAT50-SF.750-5.0DT
Price: $342.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Works on all CAT50 machines with Dual Contact spindles
  • Compatible with BIG-PLUS® spindles
  • This Shrink Fit Tool Holder accepts all .750 shank tooling
  • All critical tool holder surfaces precision ground
  • Made from hardened H-13 alloy steel
  • Balanced to G2.5 at 15,000 rpms
  • Gage length is 5.0 inches
  • Tool holder is coolant thru compatible
  • Concentricity is less than .0002
  • Rear thread for pull stud is 1" X 8
  • Read more about Shrink Fit Tool Holders Here
  • MariTool Part# is CAT50-SF.750-5.0DT

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
Product Specifications
Balance Spec:  G2.5 @ 15,000 rpms
Concentricity:  .0002
Gage Length:  5.0 Tapered
Material:  Hardened H-13 Alloy Steel
Nose Diameter:  1.56
Rear Thread:  1" x 8
Shank Size:  .750
Taper:  CAT50 DUAL CONTACT
Weight:  8.0
