HSK25E ER16 Mini Nut Collet Chuck Tool Holder 1.75 $187.45

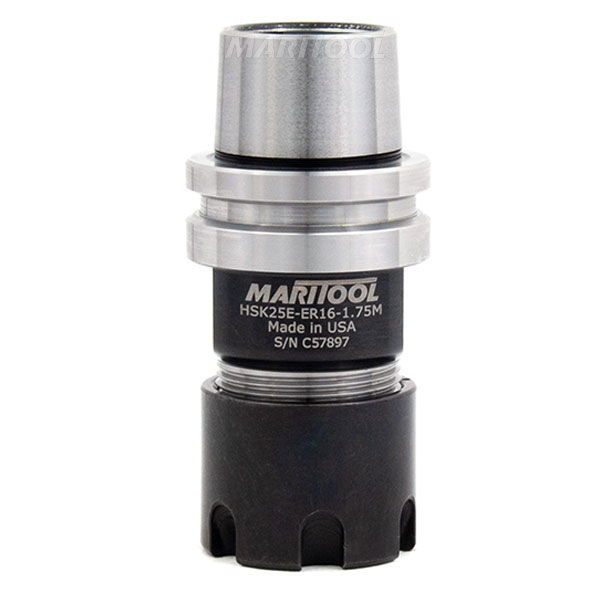

HSK25E ER16 Mini Nut Collet Chuck Tool Holder 1.75
Click to enlarge

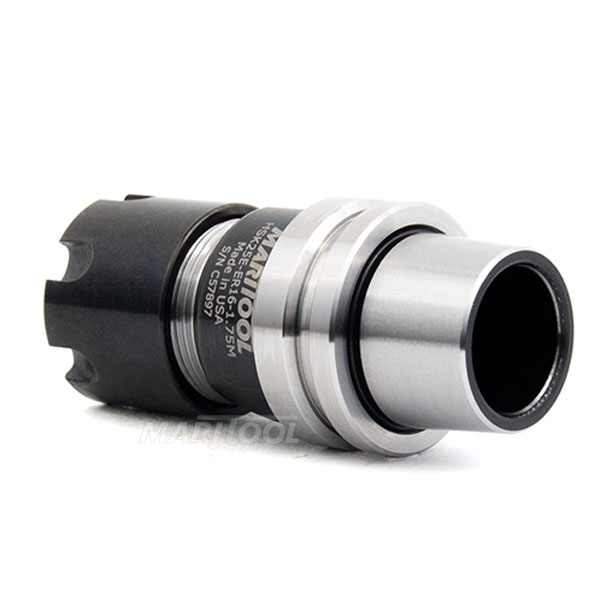

HSK25E ER16 Mini Nut Collet Chuck Tool Holder 1.75

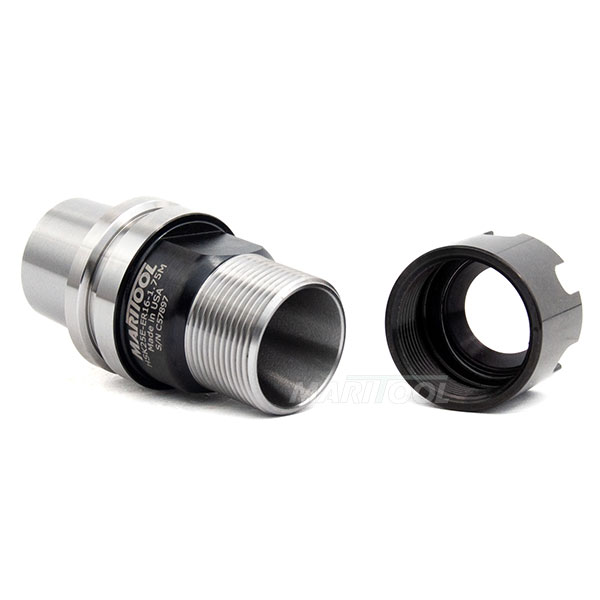

Click to enlarge 		HSK25E ER16 Mini Nut Collet Chuck Tool Holder 1.75
Click to enlarge

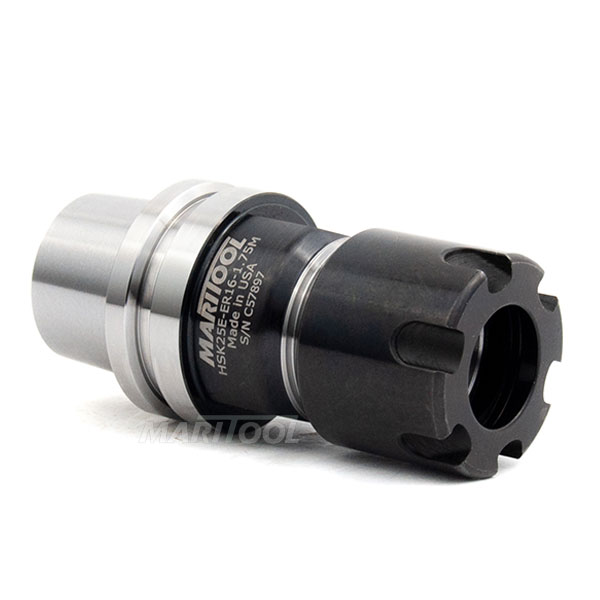

HSK25E ER16 Mini Nut Collet Chuck Tool Holder 1.75
Click to enlarge
Item No. HSK25E-ER16-1.75M
Price: $187.45
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for HSK25E-ER16-1.75M
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • Works on all HSK25E machines
  • All critical tool holder surfaces precision ground
  • Made from hardened alloy steel
  • Tool Holder is Balanced to G2.5 at 40,000 rpms
  • Gage length is 1.75 inches
  • Concentricity is less than .00015 inches
  • Collet nut is included
  • Mini Collet Nut is slimmer than standard collet nut
  • ER16 Mini Nut has an id thread of 19mm X 1.0 pitch. Outside diameter is .866 inches (22mm)
  • Must use ER16M collet wrench
  • MariTool Part# is HSK25E-ER16-1.75M
Product Specifications
Balance Spec:  G2.5 @ 40,000 rpms
Collet Grip Range:  .020-.4375 inches
Collet Size:  ER16
Concentricity:  < .00015
Coolant Thru:  Yes
Gage Length:  1.75
Material:  Hardened Alloy Steel
Taper:  HSK25E
