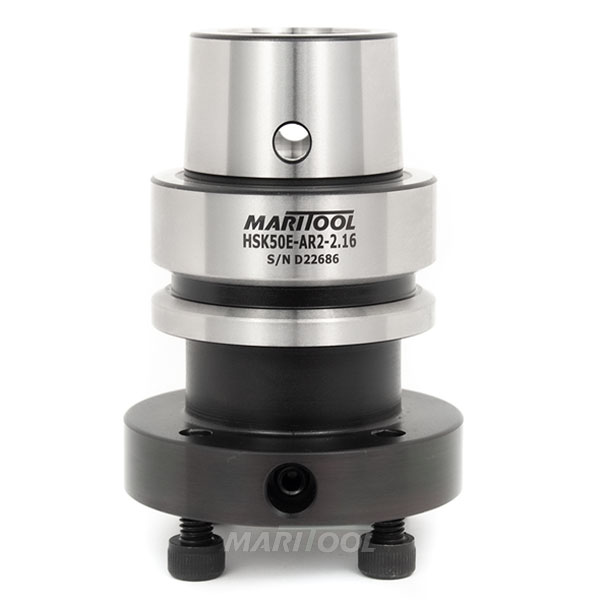

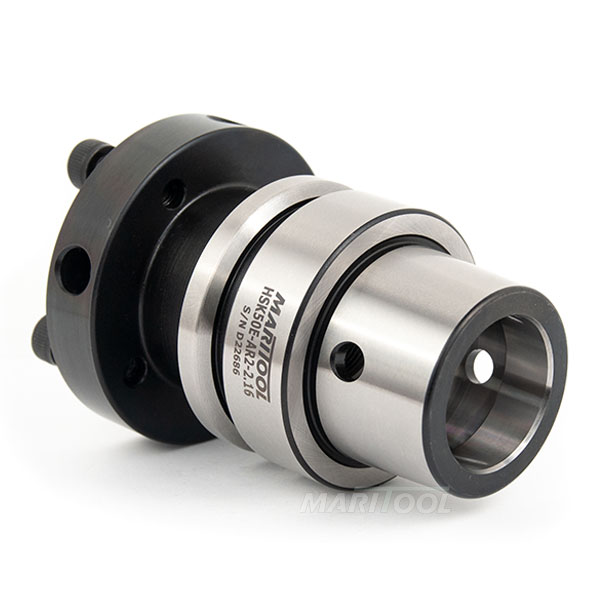

These adjustable reamer holders allow you to adjust cutter runout to zero
With zero runout, reamers will hold size better, last longer and give better roundness

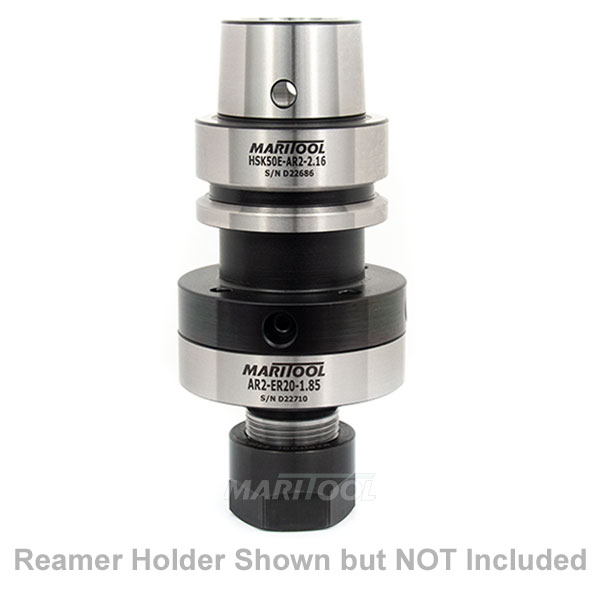

- This AR2 tool holder body is made to accept AR2 series reamer holders available here
- Works on all HSK50E machines
- All critical tool holder surfaces precision ground
- Made from hardened alloy steel
- These holders are not balanced to any high rpm specification. Keep under 6000 rpm

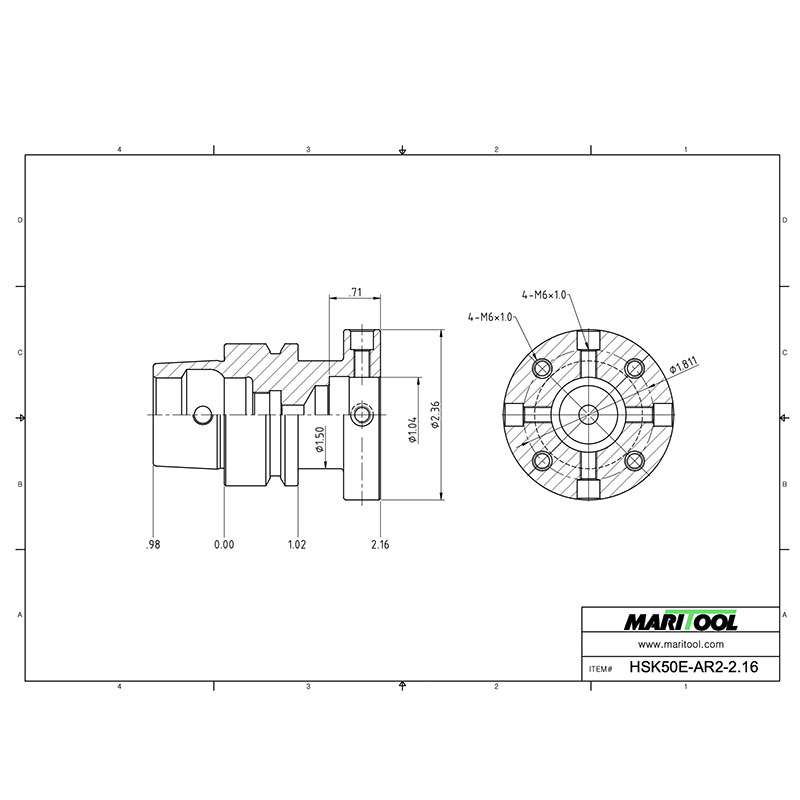

- Gage length is 2.16 inches
- 4 fine pitch set screws (M6x1) along OD are for adjusting the AR2 concentricity

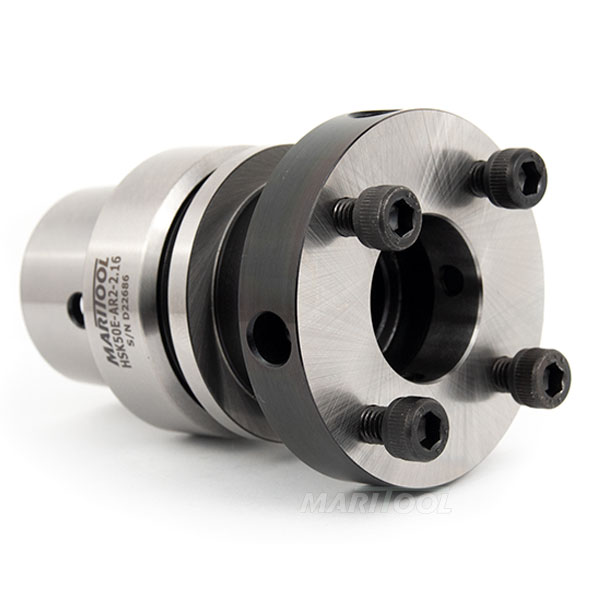

- 4 screws on face (included) are for clampling the AR2 once adjusted to desired runout
- Tool holder is coolant thru compatible
- Coolant tube not included but available here
- Coolant tube wrench not included but available here
- MariTool Part# is HSK50E-AR2-2.16
