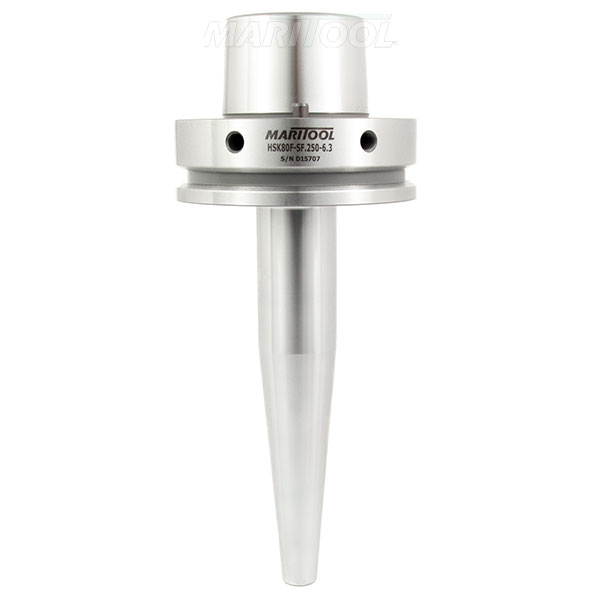

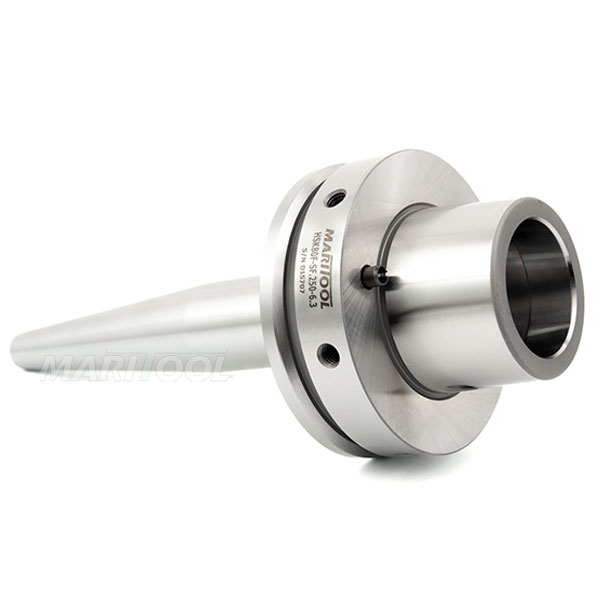

HSK80F Shrink Fit Tool Holder .250-6.3 $480.00
HSK80F Shrink Fit Tool Holder .250-6.3
Click to enlarge

HSK80F Shrink Fit Tool Holder .250-6.3
Click to enlarge 		HSK80F Shrink Fit Tool Holder .250-6.3
Click to enlarge
Item No. HSK80F-SF.250-6.3
Price: $480.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for HSK80F-SF.250-6.3
DXF file  PDF file  DWG file
Product Info

View complete catalog page

  • Works on all HSK80F machines
  • All critical tool holder surfaces precision ground
  • This Shrink Fit Tool Holder accepts all .250 shank tooling
  • Made from hardened H-13 alloy steel
  • Tool Holder is Balanced to G2.5 at 25,000 rpms
  • Gage length is 6.3 inches
  • Nose diameter is 1.06 Inches
  • Tip diameter is .5 Inches
  • Length of angle from tip to nose is 3.31 Inches
  • Concentricity is less than .0002 Inches
  • Tool holder is coolant thru compatible
  • Coolant tube not included but available here
  • Coolant tube wrench not included but available here
  • MariTool Part# is HSK80F-SF.250-6.3
Product Specifications
Balance Spec:  G2.5 @ 25,000 rpms
Concentricity:  .0002
Coolant Thru:  Yes
Gage Length:  6.3
Material:  Hardened H-13 Alloy Steel
Shank Size:  .250
Taper:  HSK80F
Weight:  3.0
