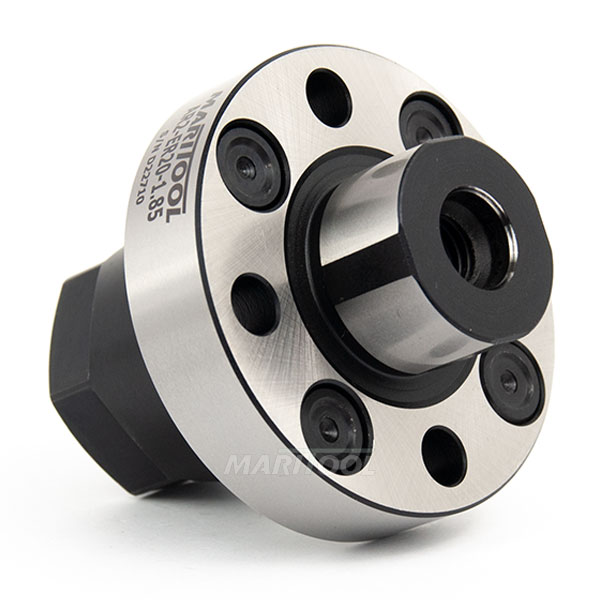

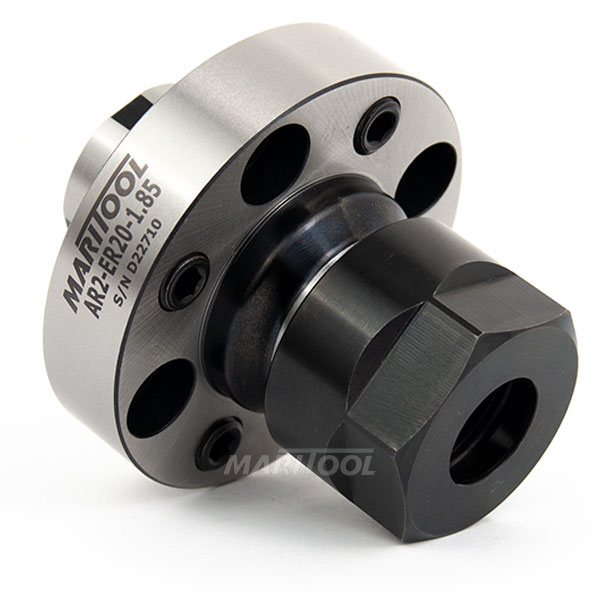

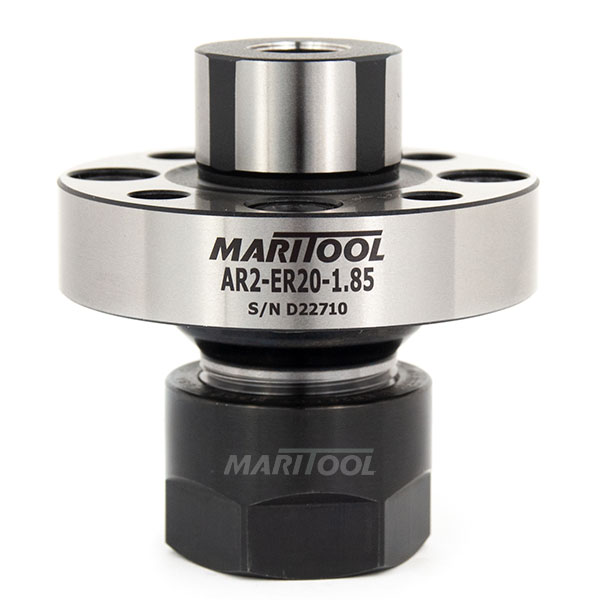

AR2 Reamer Holder ER20-1.85 $195.70
AR2 Reamer Holder ER20-1.85
Click to enlarge

AR2 Reamer Holder ER20-1.85
Click to enlarge 		AR2 Reamer Holder ER20-1.85
Click to enlarge
AR2 Reamer Holder ER20-1.85
Click to enlarge 		AR2 Reamer Holder ER20-1.85
Click to enlarge
AR2 Reamer Holder ER20-1.85
Click to enlarge
Item No. AR2-ER20-1.85
Price: $195.70
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

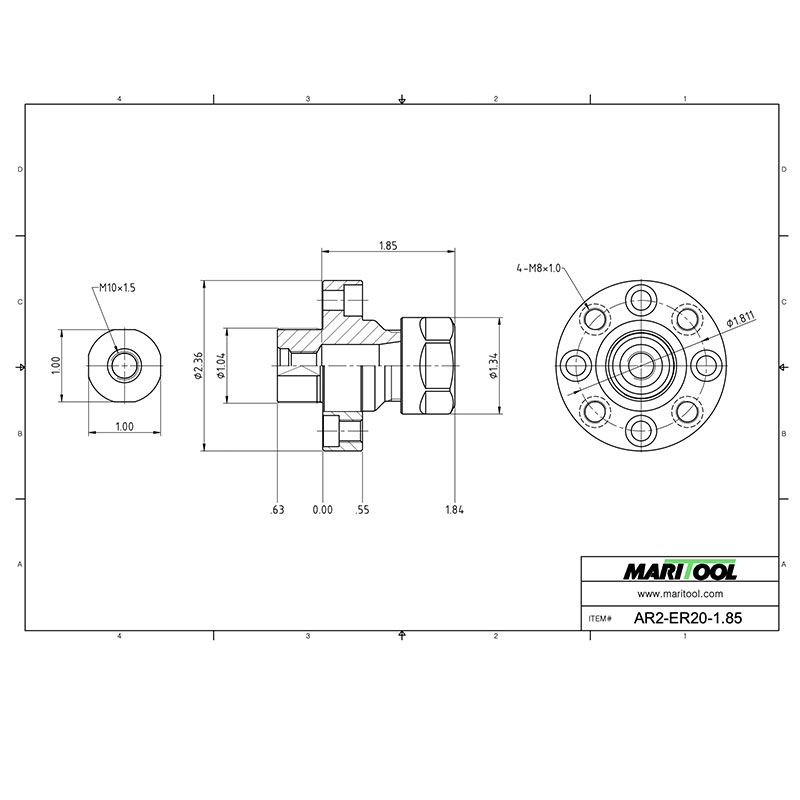

Available Downloads for AR2-ER20-1.85
PDF file  DWG file  DXF file
Product Info

View complete catalog page

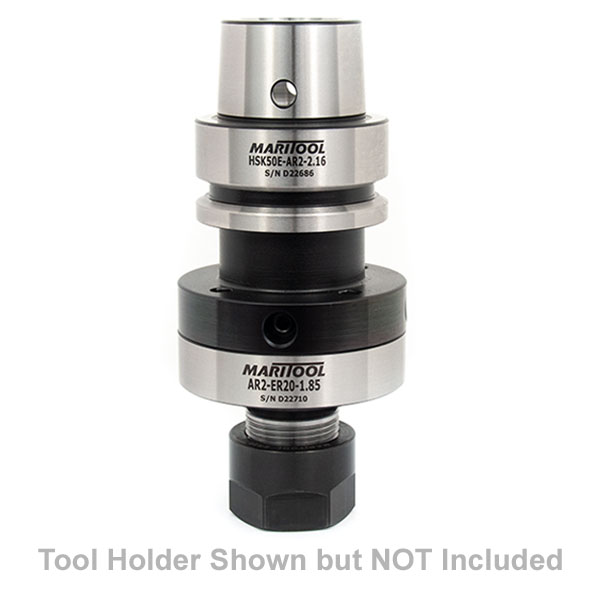

  • This AR2 reamer holder is made to hold reamers and adapt to any AR2 series tool holder
  • Shaft in back goes into the AR2 tool holder and allows set screws to adjust runout
  • 4 screws on the reamer holder also allows you to slightly tilt if you desire to adjust runout that way
  • These reamer holders are not balanced to any high rpm specification. Keep under 6000 rpms
  • Collet Chuck accepts all ER20 collets
  • All critical tool holder surfaces precision ground
  • Made from hardened alloy steel
  • Gage length is 1.85 inches
  • Concentricity is less than .0001 at collet face

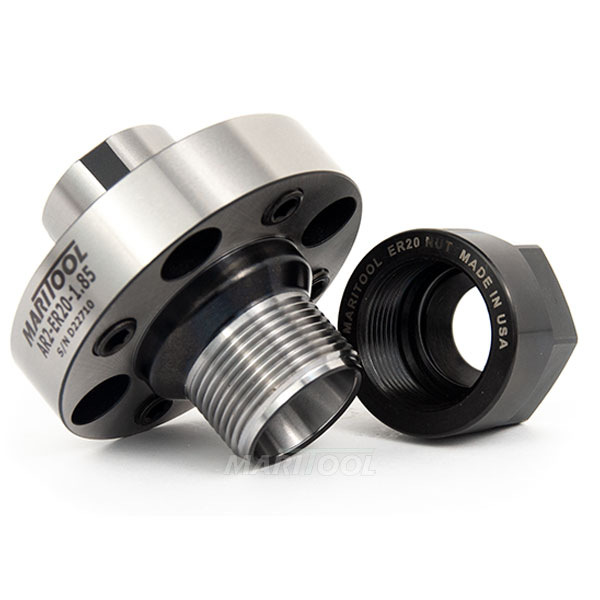

  • Collet nut is included
  • Coolant thru capability
  • MariTool Part# is AR2-ER20-1.85
Product Specifications
Collet Grip Range:  .024-.5625 inches
Collet Size:  ER 20
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  1.85
Material:  Hardened Alloy Steel
