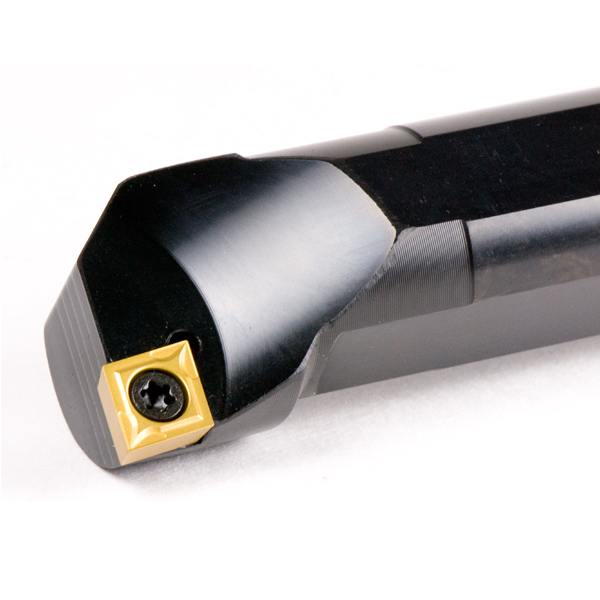

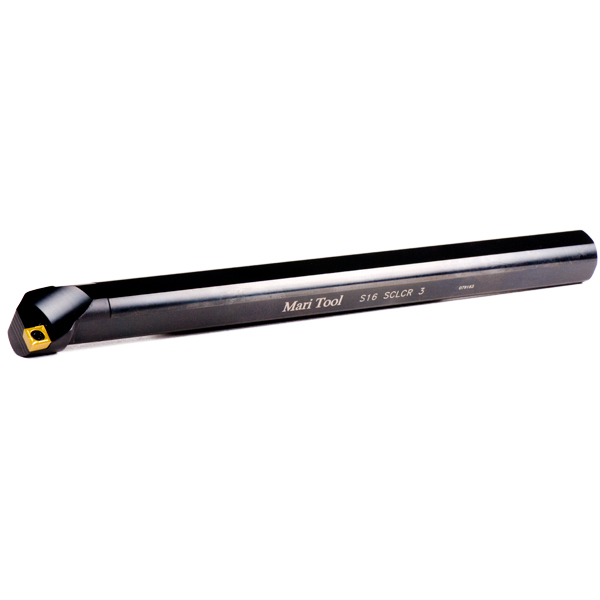

• Shank diameter is 1.00 , Bar length is 12.0 inches
• Minimum bore diameter of 1.18 inches
• Bars have a flat on the top and bottom for easy alignment
• Boring bar includes 2 insert screws (1 spare)
• Insert is not included
• Torque insert screw to 45 in/lbs
• Uses series CCMT 32.5XXXX and CCMT 09T3XXXX insert
• Also uses CCGT and CCET inserts, insert tolerance is the only difference
• 5 deg lead angle allows you to profile up to a 90 deg shoulder
• MariTool Part# is S16-SCLCR-3
