6" x 16" Deluxe Single Station Orange Vise $1,999.95
6" x 16" Deluxe Single Station Orange Vise
Click to enlarge

6" x 16" Deluxe Single Station Orange Vise
Click to enlarge
6" x 16" Deluxe Single Station Orange Vise
Click to enlarge
Item No. OV-100-106
Price: $1,999.95
Shipping: In Stock - Ships Same Day *

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Available Downloads for OV-100-106
STP file  STP file
Product Info

View complete catalog page

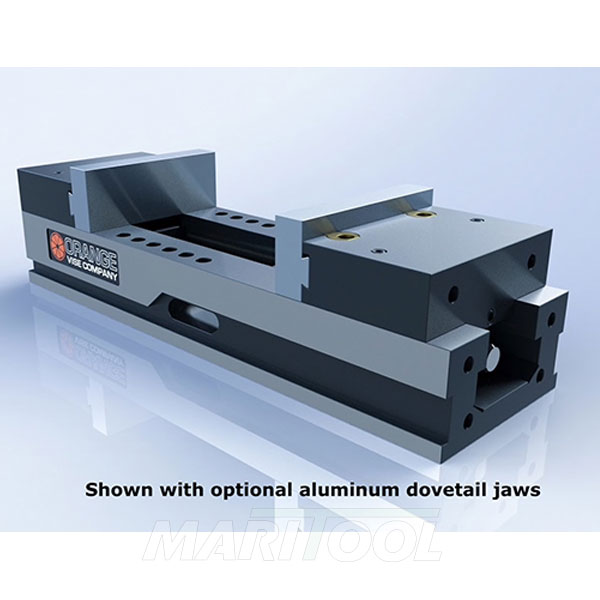

Fourth-generation vise with a dovetailed jaw interface as standard equipment. Compatible with CarveSmart™ dovetailed quick-change jaws as well as 1/2"-13 bolt-on jaws in a 3.875" x 0.9375" bolt hole pattern.

The deluxe single-station vises are identical to our dual-station vises, but without center jaws. You may purchase any of our center jaws separately to convert deluxe single-station vises into dual-station vises. No additional hardware is necessary.

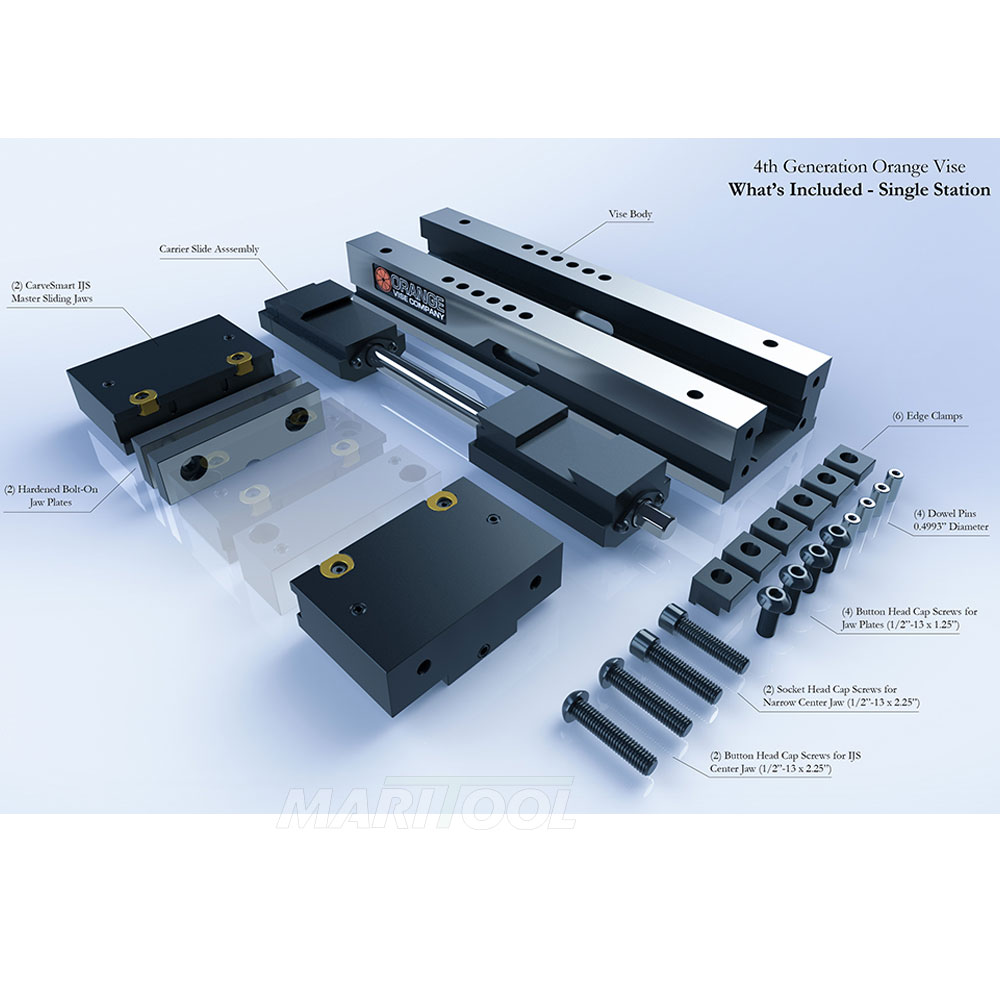

What's Included:
  • Two (2) sliding jaws with dovetail jaw integration

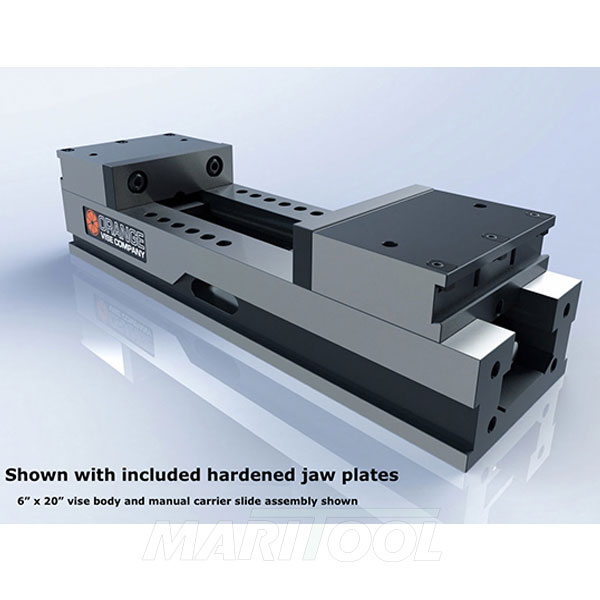

  • Two (2) hardened bolt-on jaw plates
  • Six (6) edge clamps (T-slot nuts and 1/2" or M12 hardware not included)
  • Four (4) dowel pins, 0.4993" OD x 1.0" length
  • Assorted cap screws
*Ball couplers and receivers sold separately.

Is a vise handle included?
The short answer is no. The sealed design of our carrier slide assembly makes it so that the main screw floats axially as the jaws open and close. The changing position of the screw's hex-end means that a typical vise handle won't work without extensions. Instead, we recommend using a standard 1/2" ratchet handle with a 6-point, 3/4" socket, and appropriate extensions as necessary. For precision work, we recommend using a torque wrench for repeatable clamping and a breaker bar for unclamping. The maximum torque that can be applied to the vise screw is 120 lb-ft. Rapid repositioning of the jaws can be done with an 18-volt cordless impact driver (40 lb-ft maximum). Unlike other vises on the market with thrust bearings that are susceptible to brinnelling, our vises are bearing-free and thus able to withstand impact forces without any detrimental effects.
