Solid Carbide PCD Tipped Drill .236 dia X 1.25 flute $204.80

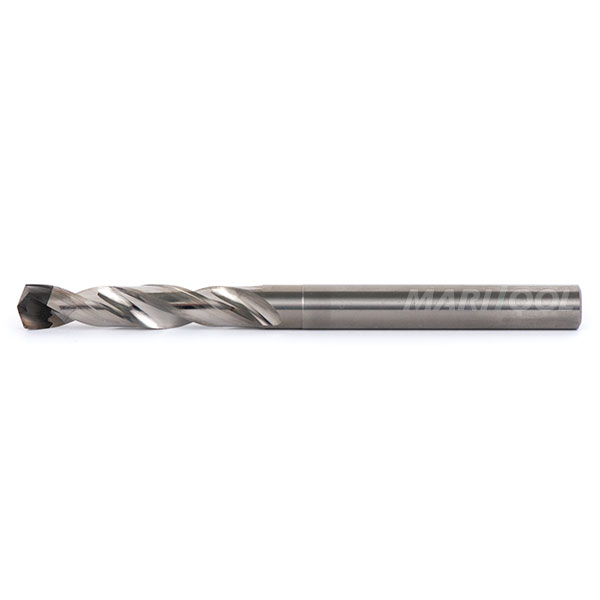

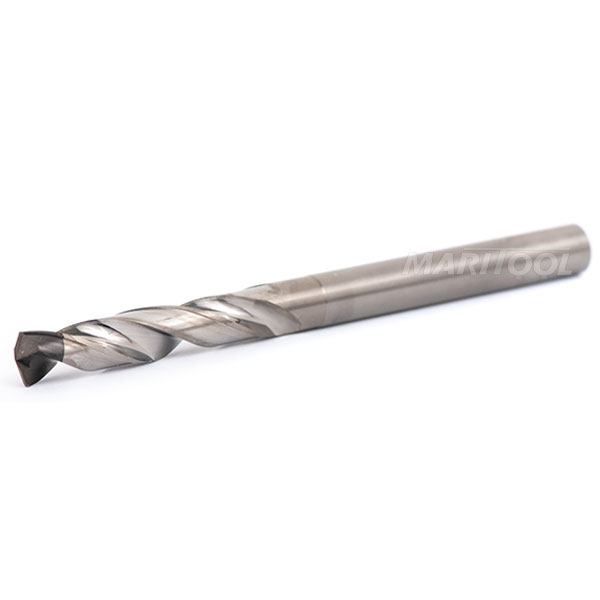

Solid Carbide PCD Tipped Drill .236 dia X 1.25 flute
Click to enlarge

Solid Carbide PCD Tipped Drill .236 dia X 1.25 flute
Click to enlarge 		Solid Carbide PCD Tipped Drill .236 dia X 1.25 flute
Click to enlarge
Item No. 2103-.236-1-SM
Price: $204.80
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for 2103-.236-1-SM
PDF file
Product Info

View complete catalog page

  • Solid carbide increases rigidity, tool life, and reduces drill walking
  • 135 deg split point tip
  • PCD tipped

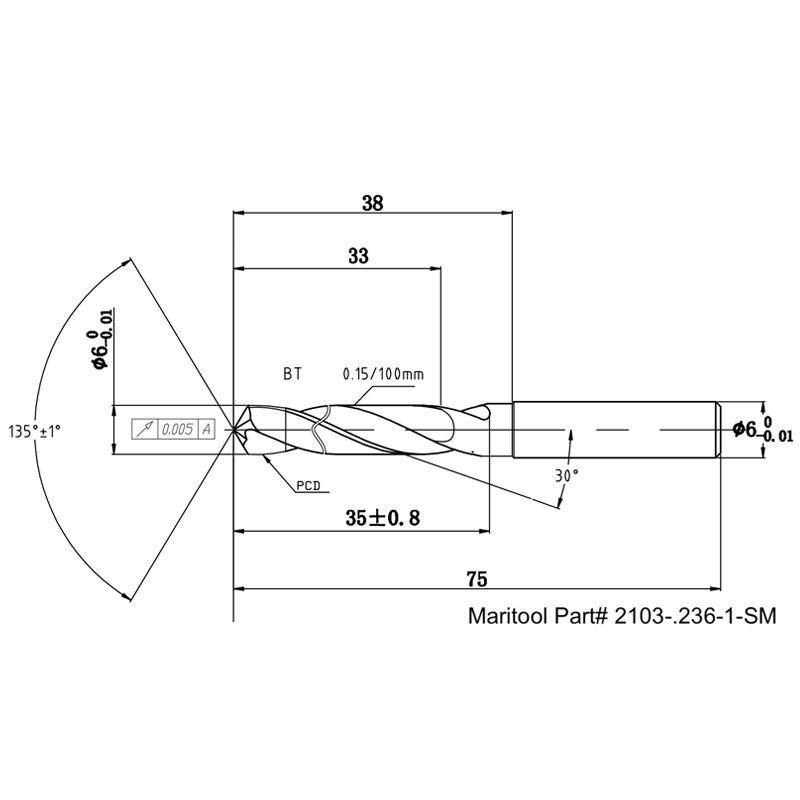

Product Specifications
Coolant Thru:  No
Cutting Diameter:  .236 inches (6mm)
End Style:  135 deg split point
Flute Length:  1.25
Helix Angle:  30 Degrees
Material:  Solid Micrograin Carbide With PCD Tip
Number of Flutes:  2
Shank Size:  6mm (.236 inches)
Total Length:  2.95 Inches (75mm)
