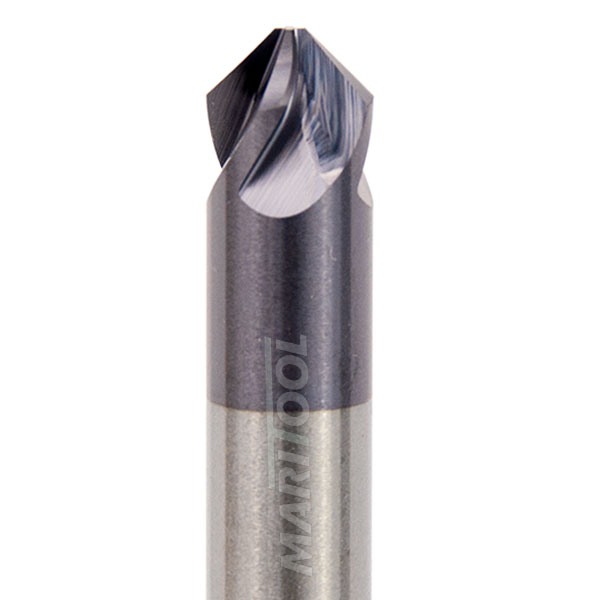

Helical Chamfer Mill .250 Dia X 90 Degree 4 Flute DE $26.30
Helical Chamfer Mill .250 Dia X 90 Degree 4 Flute DE
Click to enlarge


Helical Chamfer Mill .250 Dia X 90 Degree 4 Flute DE
Click to enlarge
Helical Chamfer Mill .250 Dia X 90 Degree 4 Flute DE
Click to enlarge
Item No. 3500-.250-90DEG-H
Price: $26.30
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Product Info

View complete catalog page

Helical chamfer mills will leave a nicer finish and are less prone to chatter than straight flute chamfer mills. Chamfer mills are used for milling a chamfer on an edge. These are not intended for spotting or center drilling. This tool is double ended for cost savings, made from Solid Carbide and TiAlN coated for longer tool life. Made in USA.

Product Specifications
Centercutting:  Yes
Coating:  TiAlN
Double Ended:  Yes
End Style:  Helical
Included Angle:  90 Degrees (45 Deg per side)
Material:  Solid Micrograin Carbide
Number of Flutes:  4
Shank Size:  .250
Tip Diameter:  0.040
Total Length:  2.00
