Pointed Long Reach Chamfer Mill .093 Dia X 90 Degree 4 Flute SE $22.00

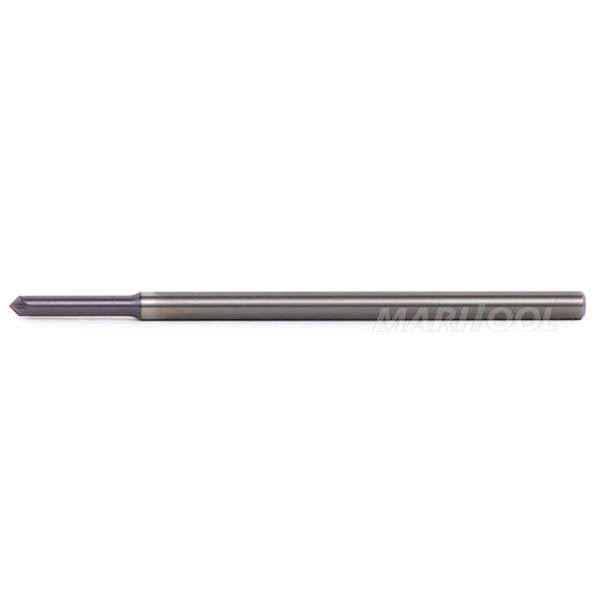

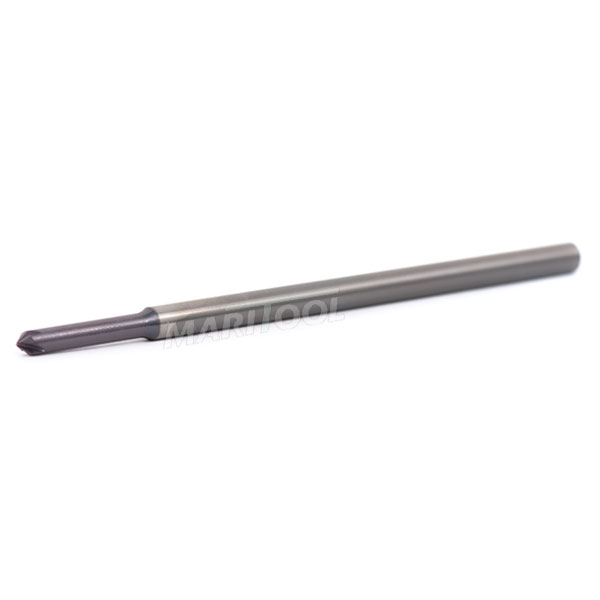

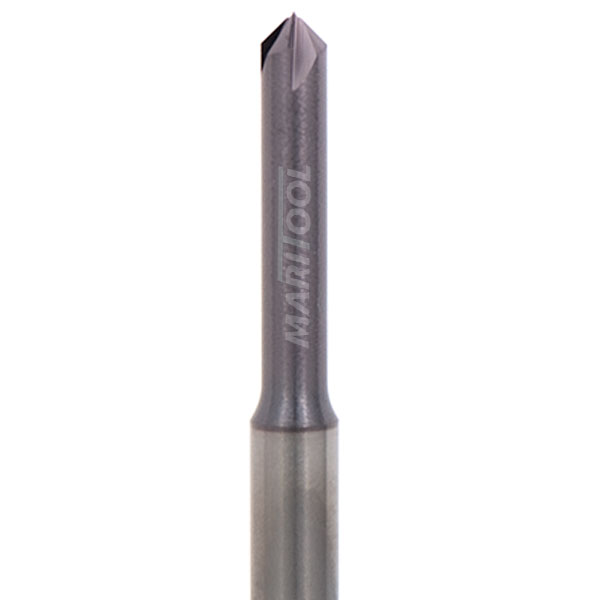

Pointed Long Reach Chamfer Mill .093 Dia X 90 Degree 4 Flute SE
Click to enlarge

Pointed Long Reach Chamfer Mill .093 Dia X 90 Degree 4 Flute SE
Click to enlarge 		Pointed Long Reach Chamfer Mill .093 Dia X 90 Degree 4 Flute SE
Click to enlarge
Pointed Long Reach Chamfer Mill .093 Dia X 90 Degree 4 Flute SE
Click to enlarge
Item No. 3500-.093-90-1
Price: $22.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for 3500-.093-90-1
PDF file
Product Info

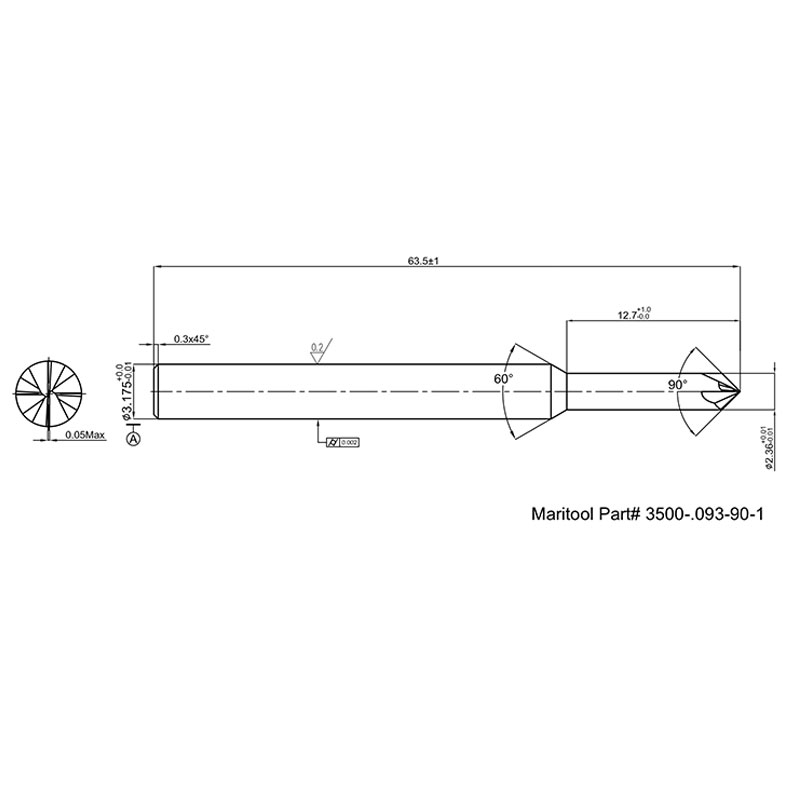

View complete catalog page

Chamfer mills are used for milling a chamfer on an edge. These are not intended for spotting or center drilling. This tool is made from Solid Carbide and TiAlN coated for longer tool life.
Product Specifications
Centercutting:  Yes
Coating:  TiAlN
Double Ended:  No
Included Angle:  90 Degrees (45 Deg per side)
Material:  Solid Micrograin Carbide
Number of Flutes:  4
Shank Size:  .125
Stem Diameter:  .093
Tip Diameter:  0.002
Total Length:  2.5
Total Reach:  .500
