8-32 Spiral Point Plug Tap TiN Coated H5 class $15.65

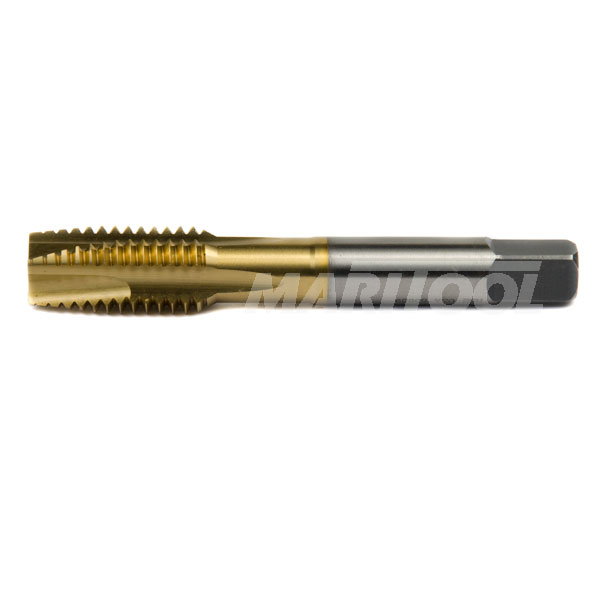

8-32 Spiral Point Plug Tap TiN Coated H5 class
Click to enlarge

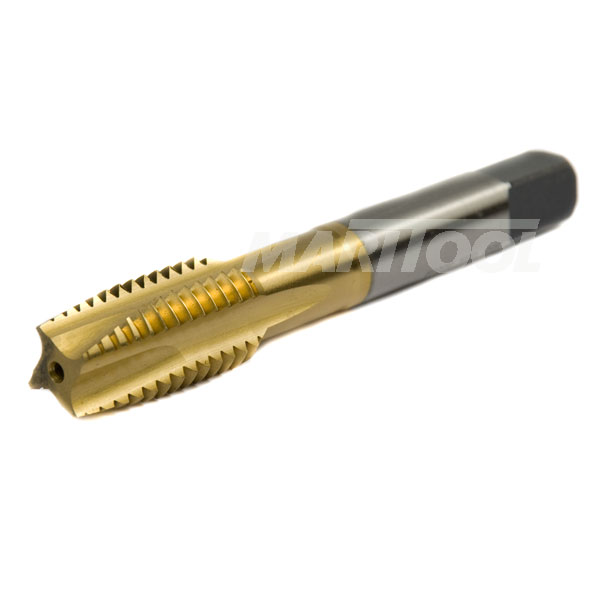

8-32 Spiral Point Plug Tap TiN Coated H5 class
Click to enlarge
Item No. 3300-8-32-H5-TiN
Price: $15.65
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate

Product Info

View complete catalog page

  • Taps made from premium high speed steel
  • Primarily designed for tapping through holes
  • Spiral Point forces the chips ahead of the tap
  • Plug style, chamfer is 5-7 thread pitches long
  • TiN Coating increases hardness and lubricity for improved thread quality, higher speeds and longer tool life
  • Great for high volume tapping in carbon steels up to 38 Rc and stainless steels up to 35 Rc

Product Specifications
Coating:  TiN
End Style:  Semi Bottoming
Neck Length:  .375
Number of Flutes:  3
Shank Size:  .140
Size:  8-32 H5
Square Drive (behind round shank):  .110 square
Thread Length:  .375
Total Length:  2.125
