SOLID CARBIDE BORING BAR .3125 $97.25

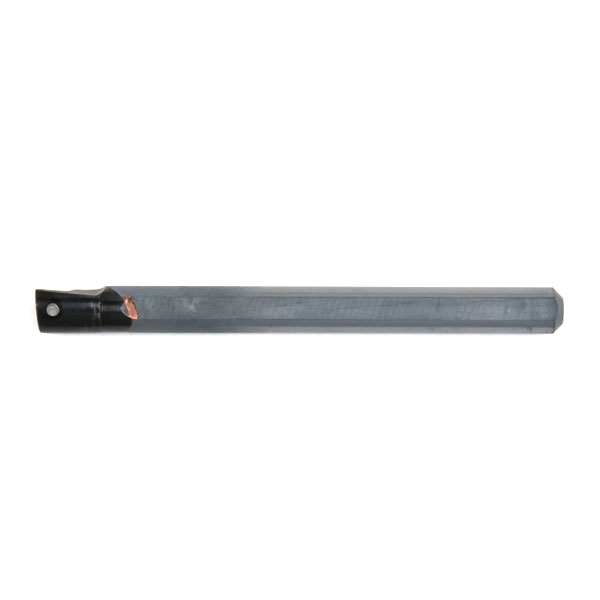

SOLID CARBIDE BORING BAR .3125
Click to enlarge

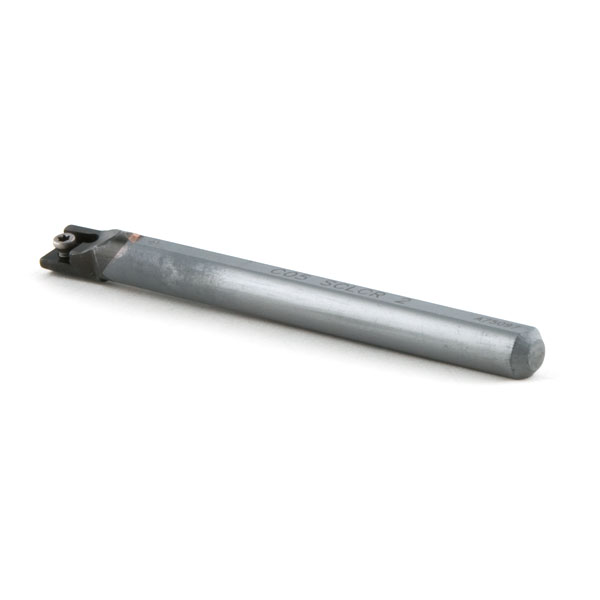

SOLID CARBIDE BORING BAR .3125
Click to enlarge

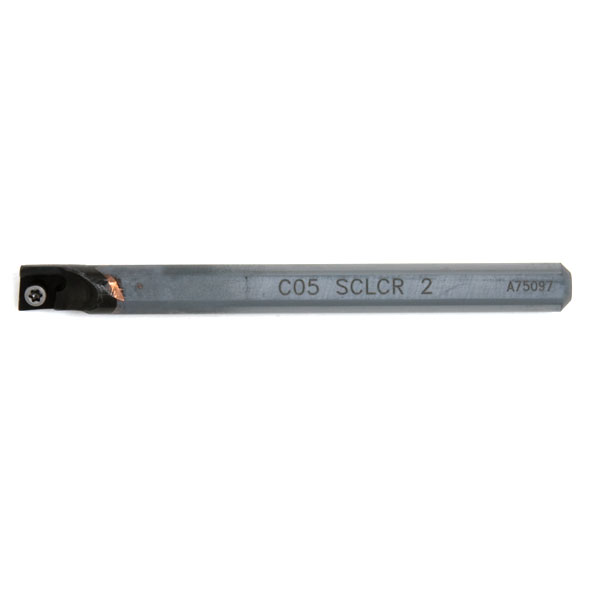

SOLID CARBIDE BORING BAR .3125
Click to enlarge
Item No. C05-SCLCR2
Price: $97.25
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Product Info

View complete catalog page

  • Shank diameter is .3125 , Bar length is 3.0 inches
  • Minimum bore diameter of .37 inches
  • Bars have a flat on the top and bottom for easy alignment
  • Proprietary cobalt percentage in the carbide allows deep boring without chatter
  • Extension ratios of over 10 to 1 are possible even in steel
  • Boring bar includes 2 insert screws (1 spare)
  • Insert is not included
  • Torque insert screws to 7 in/lbs
  • Uses series CCMT 21.5XXXX and CCMT 0602XXXX insert
  • Also uses CCGT and CCET inserts, insert tolerance is the only difference
  • 5 deg lead angle allows you to profile up to a 90 deg shoulder
  • MariTool Part# is C05-SCLCR-2
