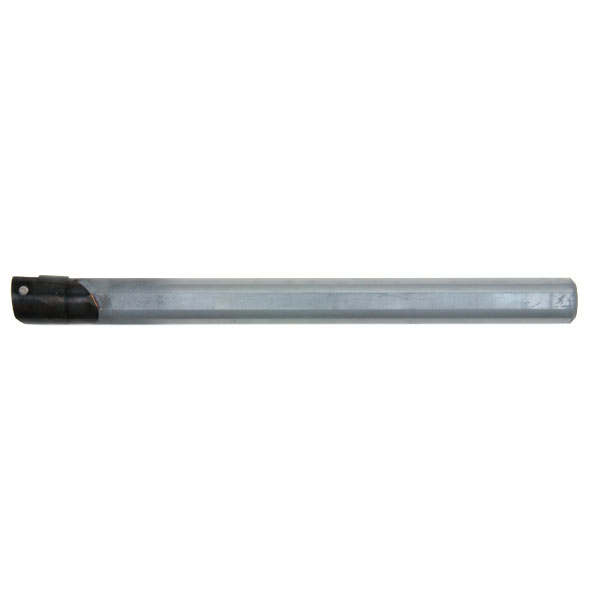

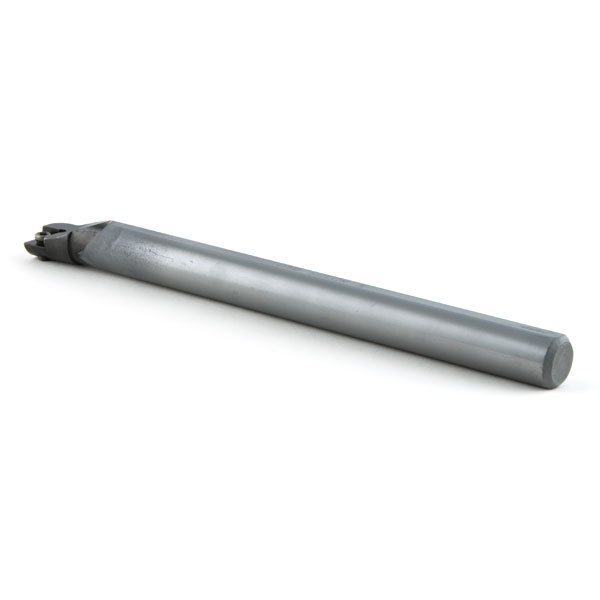

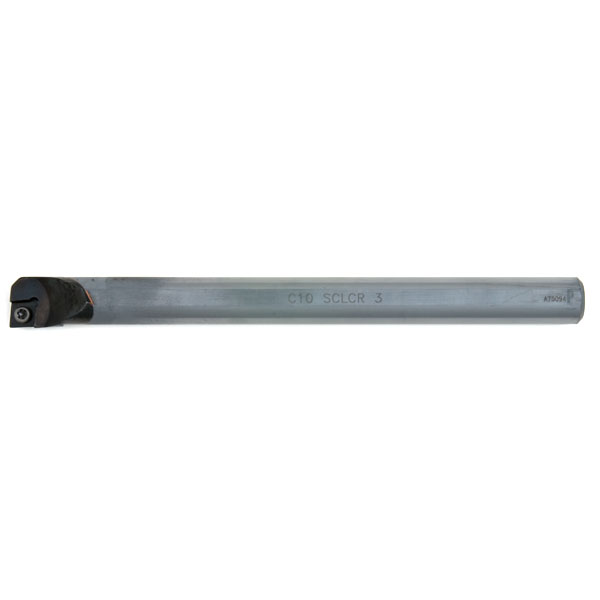

SOLID CARBIDE BORING BAR .625 $199.45
SOLID CARBIDE BORING BAR .625
Click to enlarge


SOLID CARBIDE BORING BAR .625
Click to enlarge
SOLID CARBIDE BORING BAR .625
Click to enlarge
Item No. C10-SCLCR3
Price: $199.45
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Product Info

View complete catalog page

  • Shank diameter is .625 , Bar length is 7.5 inches
  • Minimum bore diameter of .720 inches
  • Bars have a flat on the top and bottom for easy alignment
  • Proprietary cobalt percentage in the carbide allows deep boring without chatter
  • Extension ratios of over 10 to 1 are possible even in steel
  • Boring bar includes 2 insert screws (1 spare)
  • Insert is not included
  • Torque insert screws to 40 in/lbs
  • Uses series CCMT 32.5XXXX and CCMT 09T3XXXX insert
  • Also uses CCGT and CCET inserts, insert tolerance is the only difference
  • 5 deg lead angle allows you to profile up to a 90 deg shoulder
  • MariTool Part# is C10-SCLCR-3
