BT40 ER16 160 TAPERED NOSE MINI NUT COLLET CHUCK TOOL HOLDER $134.75

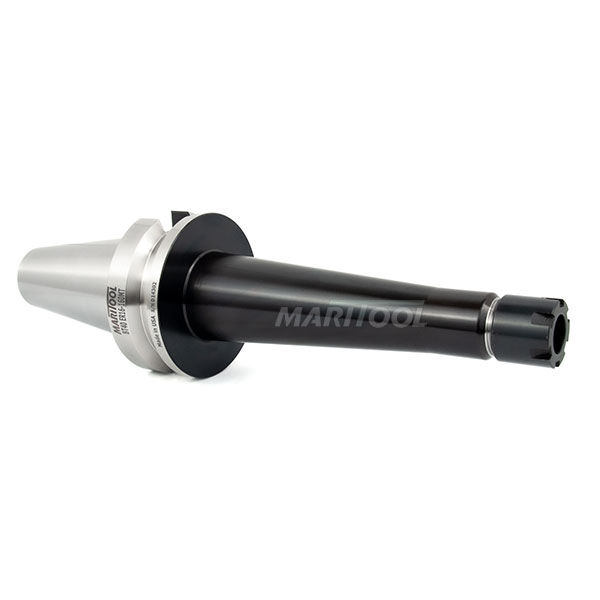

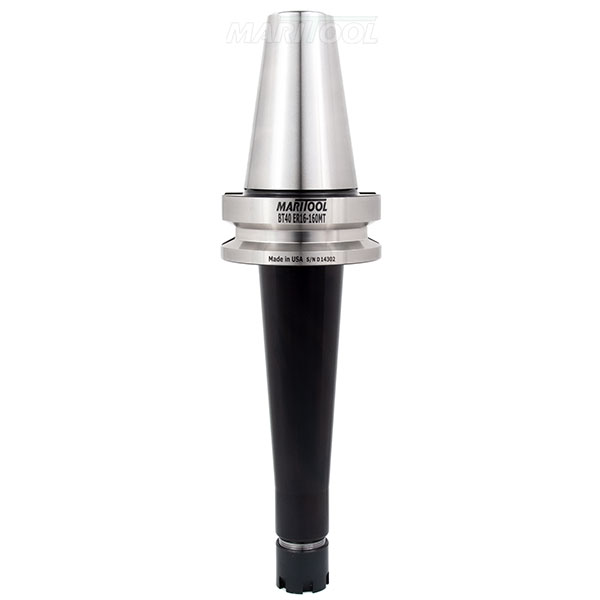

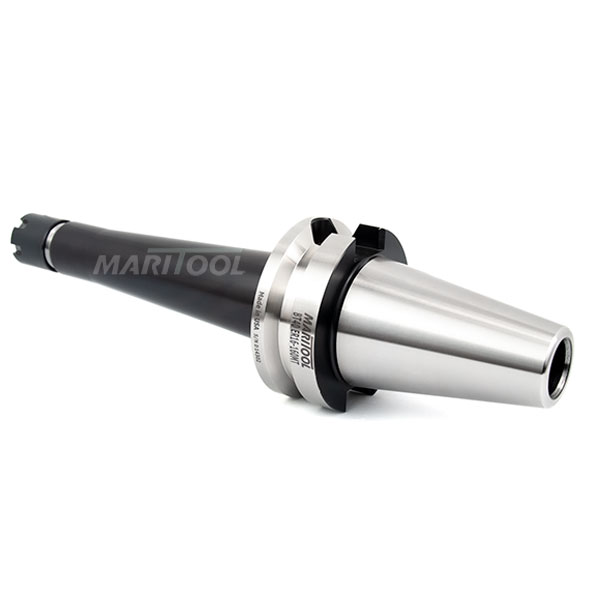

BT40 ER16 160 TAPERED NOSE MINI NUT COLLET CHUCK TOOL HOLDER
Click to enlarge

BT40 ER16 160 TAPERED NOSE MINI NUT COLLET CHUCK TOOL HOLDER
Click to enlarge 		BT40 ER16 160 TAPERED NOSE MINI NUT COLLET CHUCK TOOL HOLDER
Click to enlarge
BT40 ER16 160 TAPERED NOSE MINI NUT COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. BT40-ER16-160MT
Price: $134.75
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Accepts all ER16 collets
  • Threaded for stop screw type 1 (not included)
  • Made from hardened alloy steel
  • Balanced to G2.5 at 20,000 rpms
  • Concentricity is less than .0001 at collet face
  • All critical surfaces precision ground
  • Coolant through capability
  • Gage length is 160mm (6.3 inches)

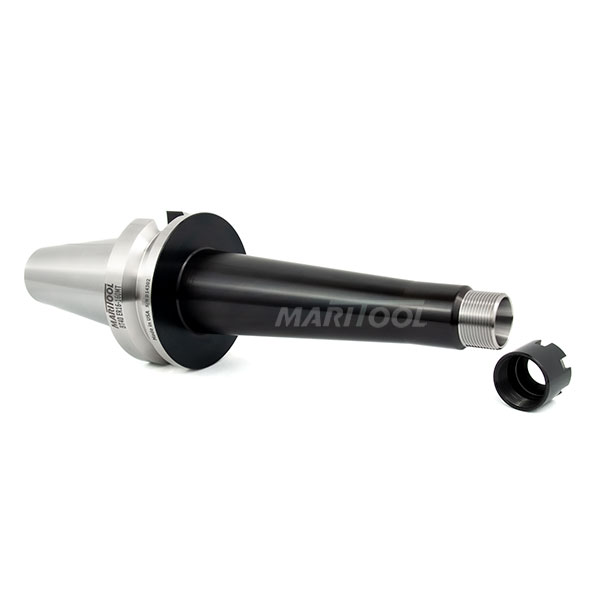

  • Collet nut is included
  • Rear thread for pull stud is M16 X 2.0
  • MariTool Part# is BT40-ER16-160MT
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .020-.4375 inches
Collet Size:  ER 16
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  160mm Tapered
Material:  Hardened Alloy Steel
Rear Thread:  M16 X 2.0
Taper:  BT40
Weight:  3.0
