HSK63A Drill Chuck Tool Holder 13mm $247.50

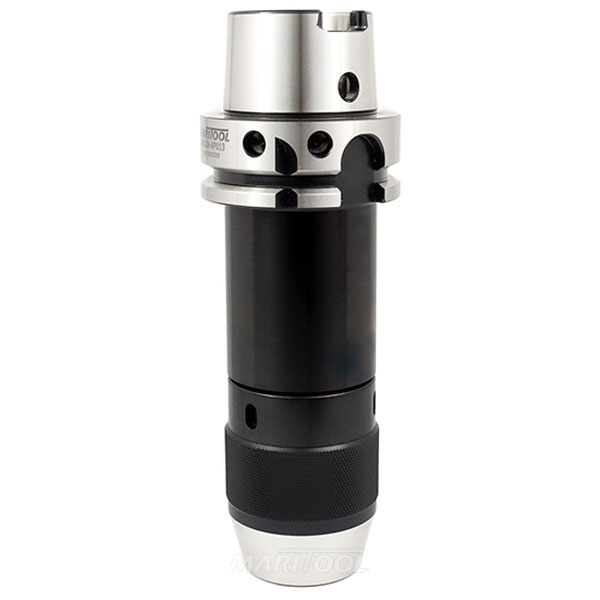

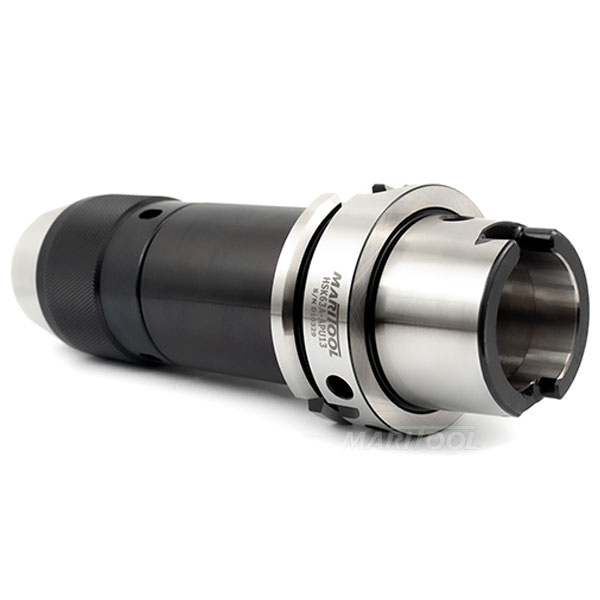

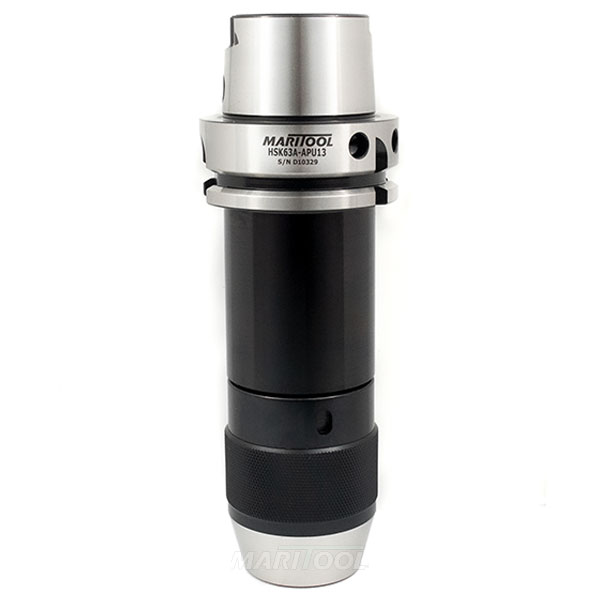

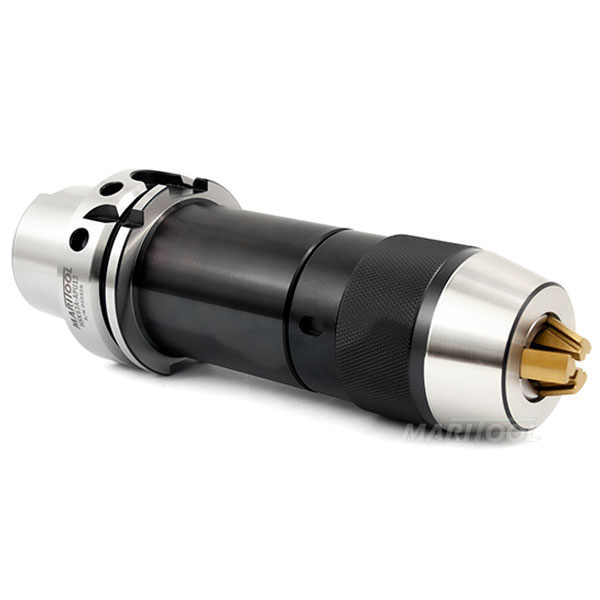

HSK63A Drill Chuck Tool Holder 13mm
Click to enlarge


HSK63A Drill Chuck Tool Holder 13mm
Click to enlarge
HSK63A Drill Chuck Tool Holder 13mm
Click to enlarge
HSK63A Drill Chuck Tool Holder 13mm
Click to enlarge
HSK63A Drill Chuck Tool Holder 13mm
Click to enlarge
Item No. HSK63A-APU13
Price: $247.50
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Product Info

View complete catalog page

  • Works on all HSK63A machines
  • Drill Chuck is screwed from the back to ensure it does not come out during high cutting loads
  • All critical tool holder surfaces precision ground
  • Made from hardened alloy steel
  • Balanced to G2.5 @ 20,000 rpm, but rated safe operation speed is 7000 rpm
  • Gage length is 6.4 Inches
  • Body diameter of chuck is 2.0 Inches
  • This Drill Chuck can hold shanks from .019-.511 (.5-13mm)
  • Max runout is .0015"
  • Wrench is not included, but is available here
  • Not coolant thru capable
  • Max drill depth when clamping min diameter drill is 1.145"
  • Max drill depth when clamping max diameter drill is 1.38"
  • MariTool Part# is HSK63A-APU13

Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  < .0015
Coolant Thru:  No
Finish:  Black Oxide
Gage Length:  6.4
Material:  Hardened Alloy Steel
Taper:  HSK63A
Weight:  5.0
