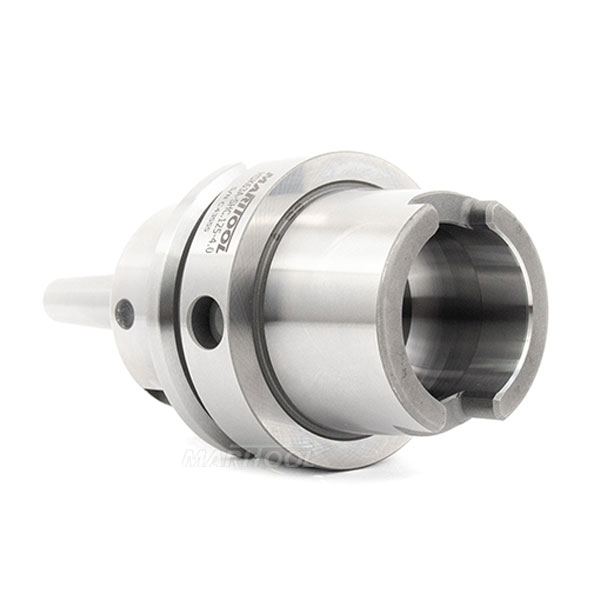

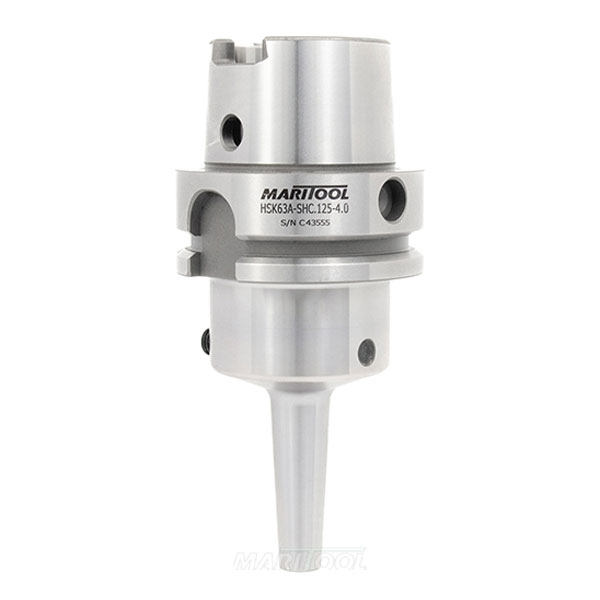

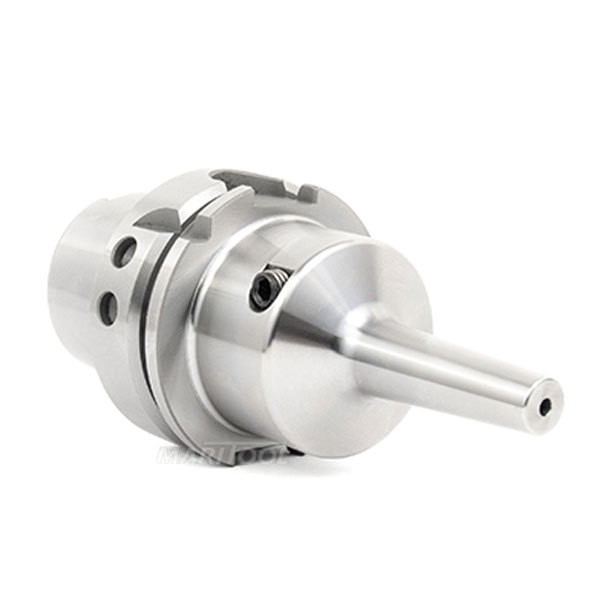

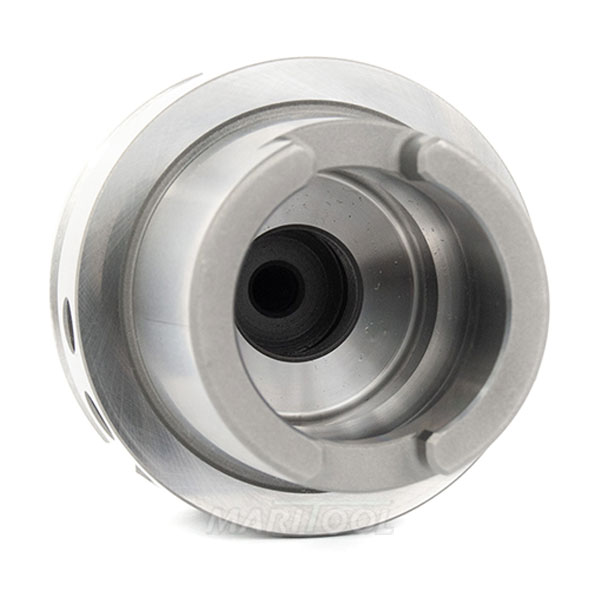

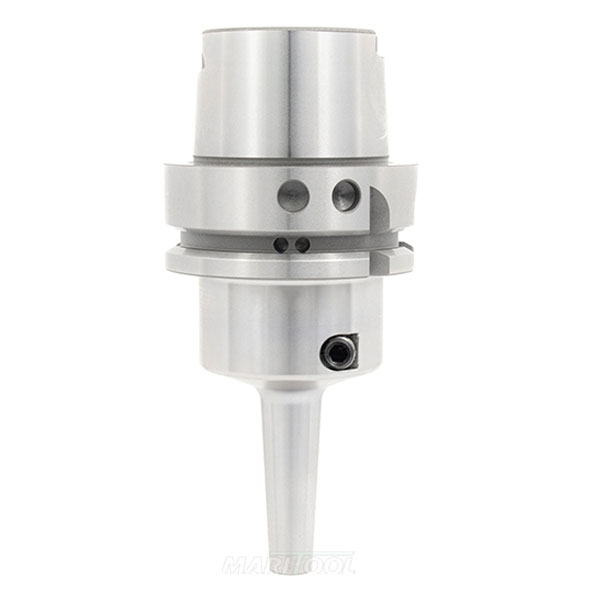

HSK63A Slim Hydraulic Chuck .125-4.0 $579.00
HSK63A Slim Hydraulic Chuck .125-4.0
Click to enlarge

HSK63A Slim Hydraulic Chuck .125-4.0
Click to enlarge 		HSK63A Slim Hydraulic Chuck .125-4.0
Click to enlarge
HSK63A Slim Hydraulic Chuck .125-4.0
Click to enlarge 		HSK63A Slim Hydraulic Chuck .125-4.0
Click to enlarge
Item No. HSK63A-SHC.125-4.0
Price: $579.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for HSK63A-SHC.125-4.0
PDF file  DXF file  DWG file
Product Info

View complete catalog page

Hydraulic Holders have the best dampening abilities of all holders resulting in....

  • Minimal noise emissions
  • Increased tool life
  • Improved surface finish and less chatter
  • Less chipping of sharp corner tooling

Product Details

  • Works on all HSK63A machines
  • These holders are maintenance free
  • Fast tool change, simply insert tool and tighten screw until it stops
  • This Tool Holder has a thru hole, coolant thru capable
  • Maximum operating temperature 120 deg Fahrenheit
  • Super accurate .0001 TIR or less at 4x diameter
  • Balanced to G2.5 @ 25,000 rpms
  • For .125 shank tooling only
  • Unlimited shank depth, this tool holder does not have a rear stop
  • 4mm allen key is not included but available here
  • Gage length is 4.0 Inches
Product Specifications
Balance Spec:  G2.5 @ 25,000 rpms
Concentricity:  < .0001
Coolant Thru:  Yes
Gage Length:  4.0
Hydraulic Type:  SHC
Material:  Hardened Alloy Steel
Shank Size:  .125
Taper:  HSK63A
