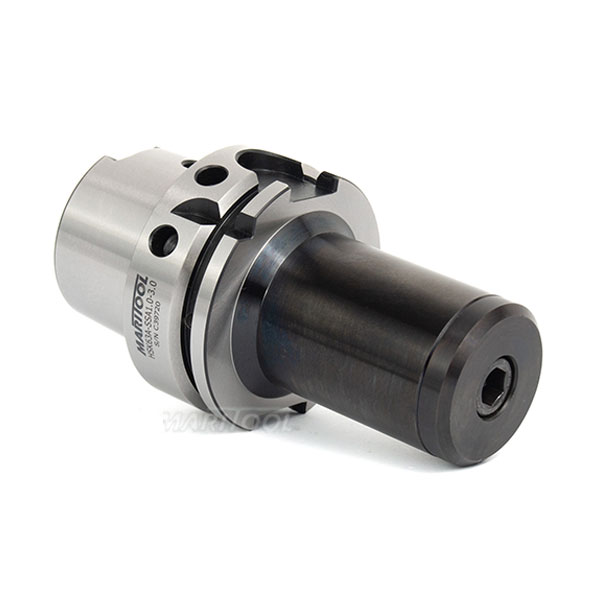

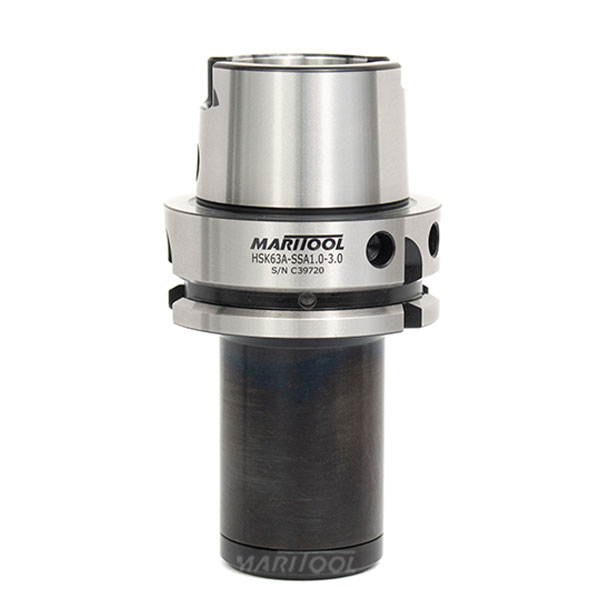

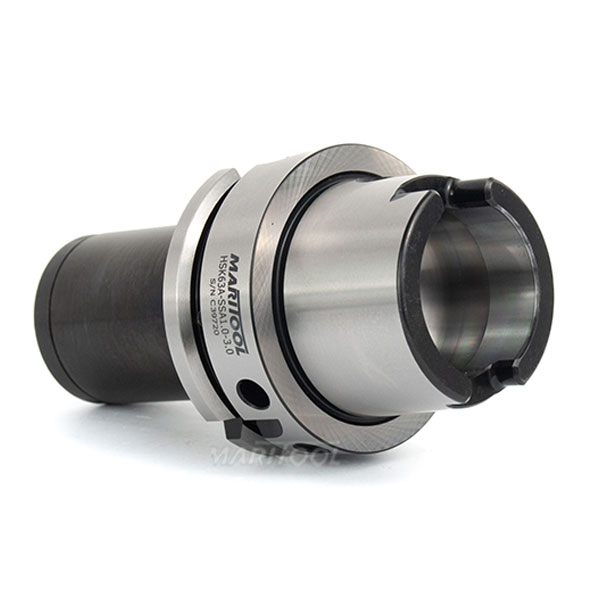

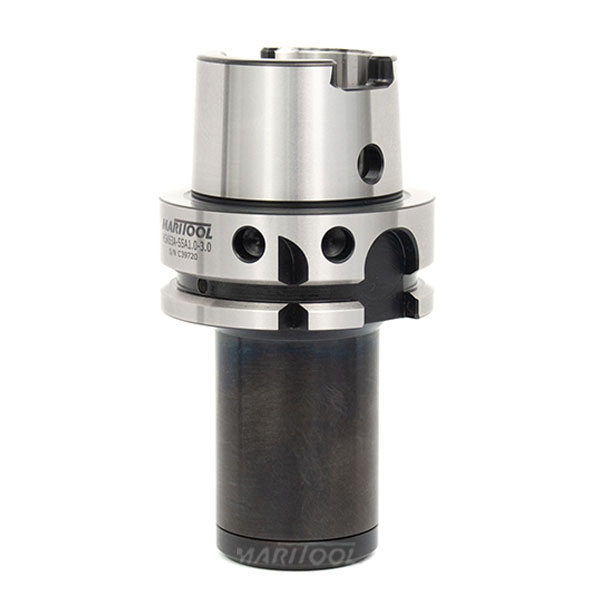

HSK63A Slitting Saw Arbor Holder 1.0-3.0
$215.75
Item No.
HSK63A-SSA1.0-3.0
Price:
$215.75
Shipping:
Contact us
Quantity:
Add to Cart
Please
contact us
for a Shipping Estimate
Available Downloads for HSK63A-SSA1.0-3.0
Product Info
View complete catalog page
Keyless slitting saw holder, for saws with 1.0" arbor hole
Concentricity is less than .0001 at arbor hole
Balanced to G2.5 at 25,000 rpms
Gage length is 3.0 inches

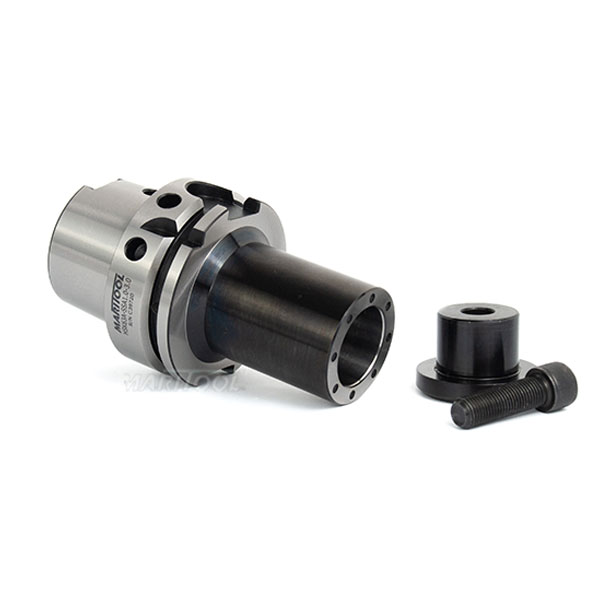

End of saw holder has small holes or grooves, this is for optionally applying loc tite to secure saw to holder. Cap must still be used and torqued
Screw for cap is 3/8-24 X 1-1/4 long
Saw cap is .281 Inches thick and .9999 diameter boss is .700 long
Nose dia and saw cap is 1.5 Inches diameter
Replacement cap is available
SSA1.0-cap
Tool holder is coolant thru compatible
Coolant tube not included but
available here
Coolant tube wrench not included but
available here
MariTool Part# is HSK63A-SSA1.0-3.0
Product Specifications
Arbor Diameter:
1.0
Balance Spec:
G2.5 @ 25,000 rpms
Concentricity:
< .0001 at Arbor Hole
Finish:
Black Oxide
Gage Length:
3.0
Material:
Hardened Alloy Steel
Nose Diameter:
1.5
Taper:
HSK63A
