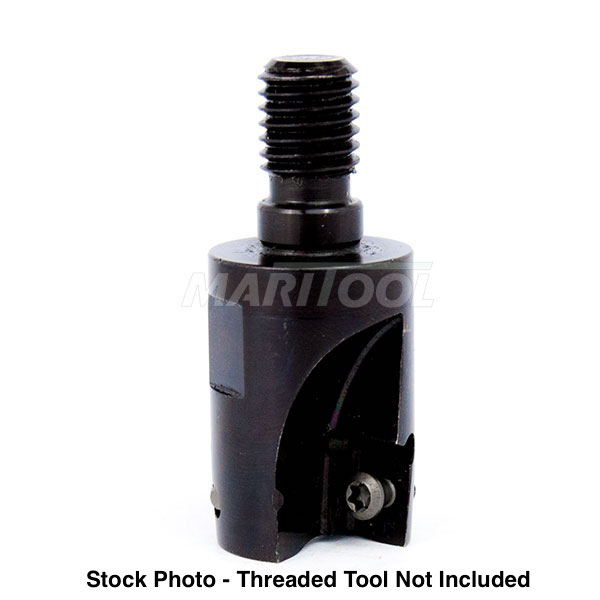

- This tool holder accepts all 16mm threaded screw-in indexable cutters
- Cutters are often called Modular tooling, Screw in, or Threaded Shank Cutters
- Click here for list of cutters and terminology used by different manufacturers
- Ground pilot diameter is 17mm X 10mm deep, internal thread is M16 X 2.0 X 27mm deep
- Nose diameter is 1.22 Inches
- Tool holder works on all HSK63A machines
- All critical tool holder surfaces precision ground
- Made from alloy steel hardened to 54 - 56rc
- Balanced to G2.5 at 25,000 rpms
- Gage length is 4.0 inches
- Concentricity is less than .0001 at pilot bore
- Coolant thru capability
- Coolant tube not included but available here
- Coolant tube wrench not included but available here

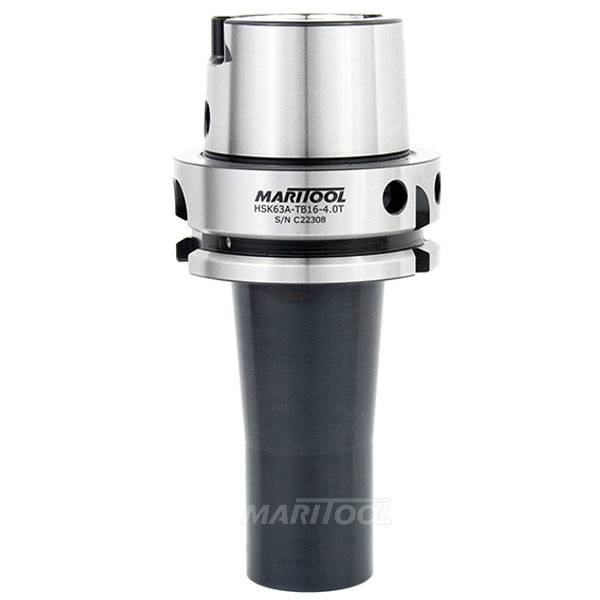

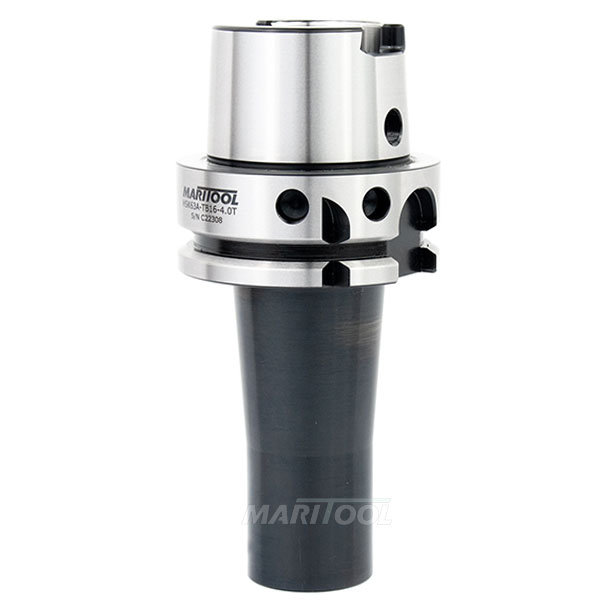

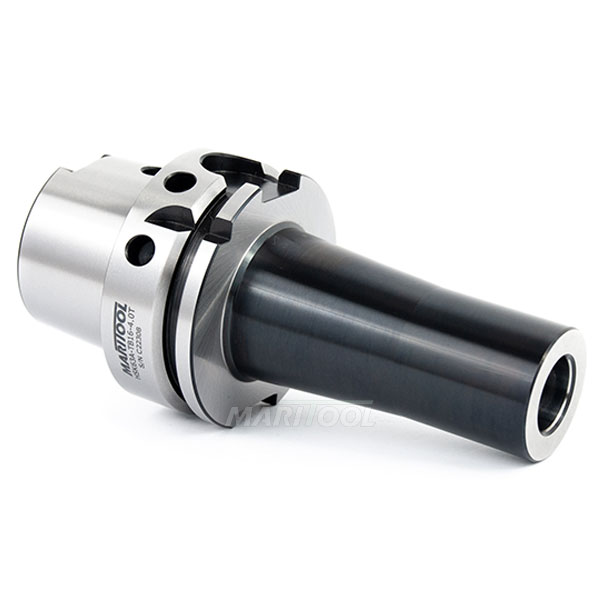

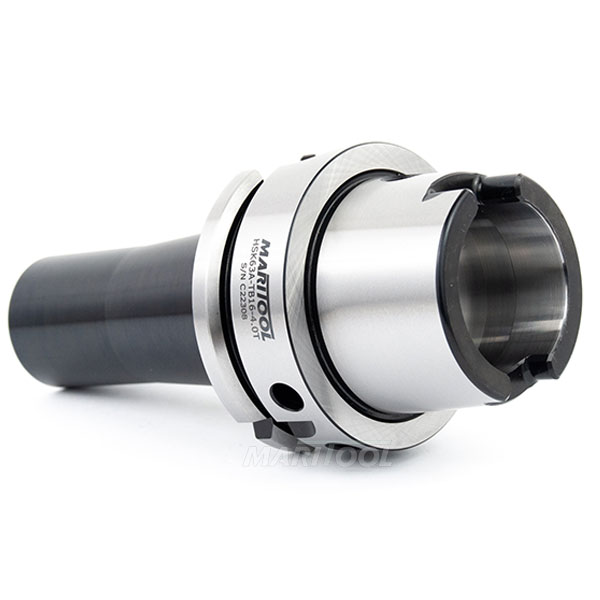

- MariTool Part# is HSK63A-TB16-4.0T
