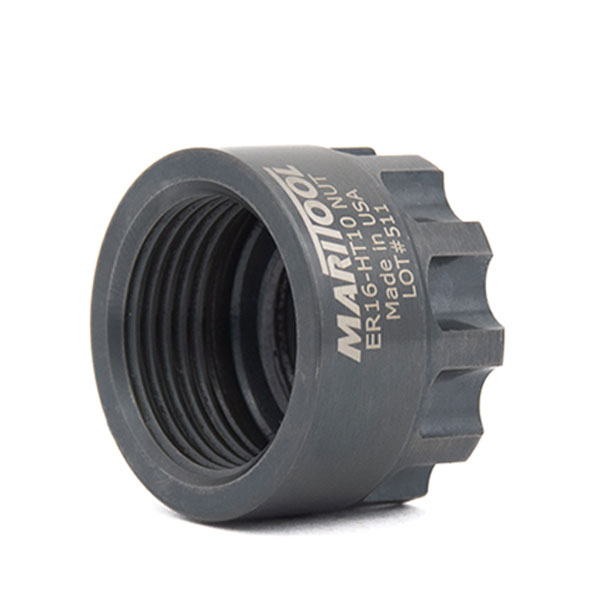

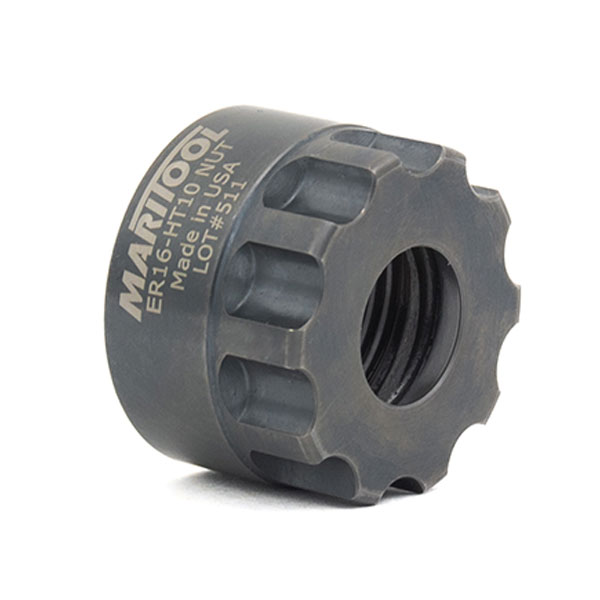

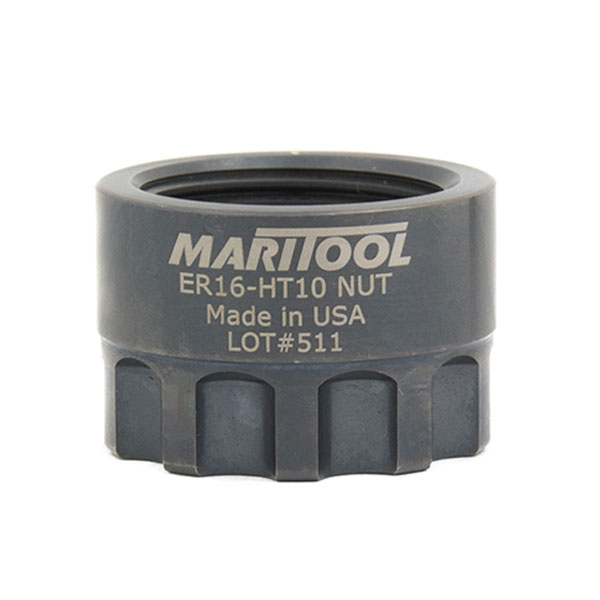

ER16 HIGH TORQUE COLLET NUT $27.10
ER16 HIGH TORQUE COLLET NUT
Click to enlarge

ER16 HIGH TORQUE COLLET NUT
Click to enlarge 		ER16 HIGH TORQUE COLLET NUT
Click to enlarge
Item No. ER16-HT10-NUT
Price: $27.10
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Holds all ER16 collets
  • Works with all MariTool ER16 tool holders
  • These nuts clamp the ER16 collet harder than the standard ER16 nuts
  • Allows deeper depths of cut and higher feedrates without shank slipping
  • Made from hardened alloy steel
  • Has an internal thread of 22mm X 1.5 pitch
  • Outside diameter is 1.1 inches (28mm)
  • Tungsten Disulfide WS2 ultra low friction coating
  • Proprietary HT10 wrench connection allows high torque without stripping or nut deformation
  • Uses HT10-TWA torque wrench adaptor (not included)
  • Torque Ratings for ER16 Collet Nuts can be found here
  • MariTool Part# ER16-HT10-NUT
