ER25 1.0-2.0F STRAIGHT SHANK COLLET CHUCK With Flat $82.45

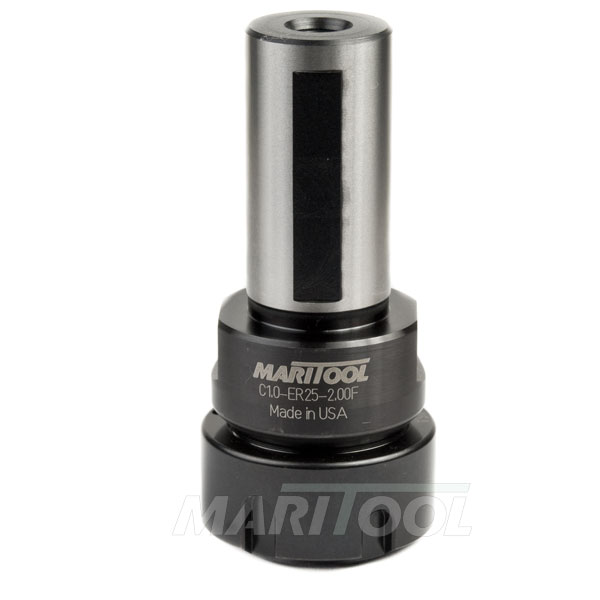

ER25 1.0-2.0F STRAIGHT SHANK COLLET CHUCK With Flat
Click to enlarge

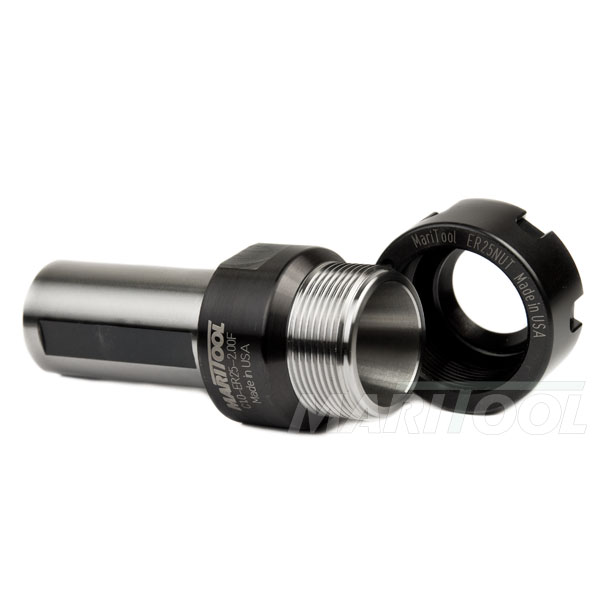

ER25 1.0-2.0F STRAIGHT SHANK COLLET CHUCK With Flat

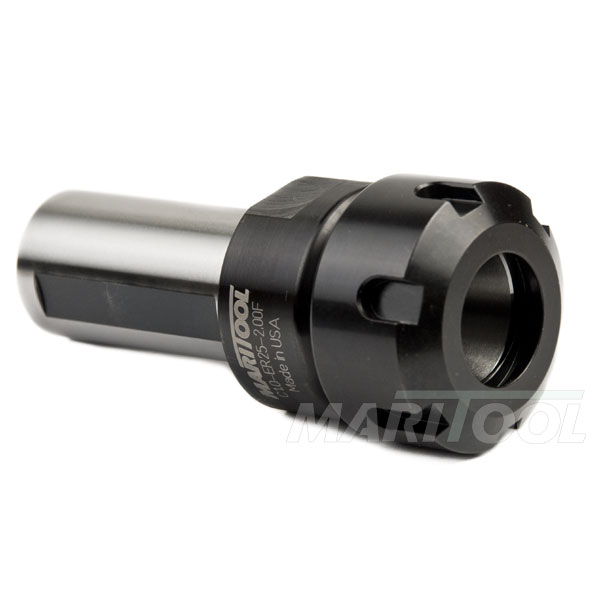

Click to enlarge 		ER25 1.0-2.0F STRAIGHT SHANK COLLET CHUCK With Flat
Click to enlarge

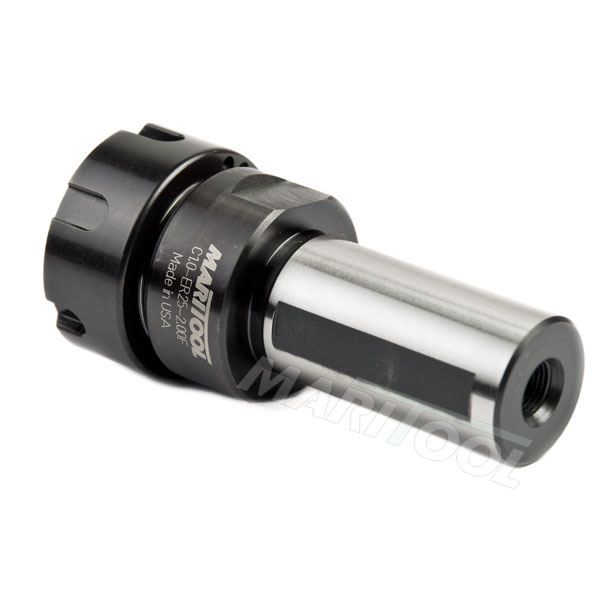

ER25 1.0-2.0F STRAIGHT SHANK COLLET CHUCK With Flat
Click to enlarge 		ER25 1.0-2.0F STRAIGHT SHANK COLLET CHUCK With Flat
Click to enlarge
Item No. C1.0-ER25-2.0F
Price: $82.45
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for C1.0-ER25-2.0F
PDF file  DWG file  STP file  DXF file
Product Info

View complete catalog page

  • This tool holder accepts all ER25 collets
  • Threaded for stop screw type 2 (not included)
  • Straight shank is 1.00" diameter 2.00" long
  • Shank has flat
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Coolant through capability with NPT tapped in rear
  • Collet nut is included
  • A dimension-- 1.0 dia. straight shank
  • B dimension-- 2.00 shank length
  • C dimension-- 1.80 gage length
  • D dimension-- 1.50 body diameter
  • Flats on body are 1.374 inches apart
  • E note-- collet nut is 1.650 dia. and uses wrench part number ER25-WRENCH
  • Wrench is not included. Link is provided below
  • MariTool Part# is C1.0-ER25-2.0F
Product Specifications
Body Diameter:  1.50
Collet Nut:  ER25
Collet Nut Outside Diameter:  1.650
Collet Size:  ER25
Coolant Thru:  Yes
Flat on Shank:  Yes
Gage Length:  1.8
Material:  Hardened Alloy Steel
Rear of Shank Threaded:  Yes 1/8-27 NPT
Shank Size:  1.00 dia x 2.00 long
Wrench:  ER25-WRENCH
