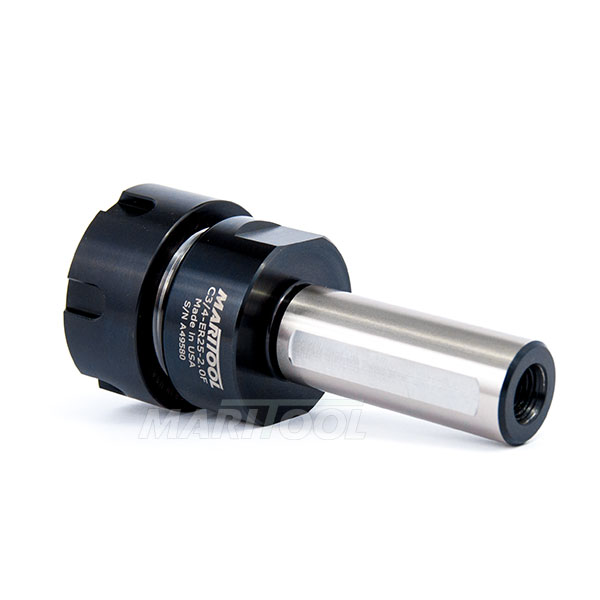

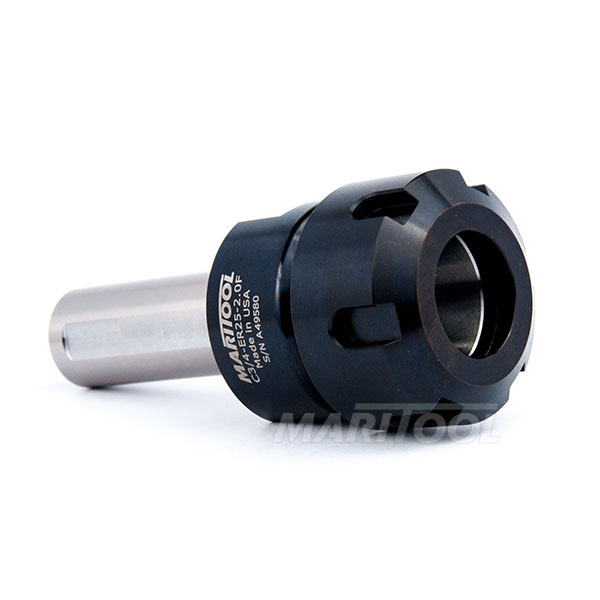

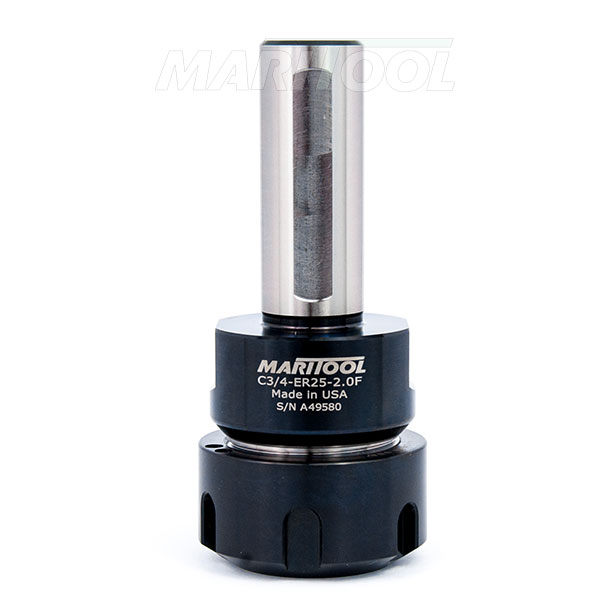

ER25 3/4-2.0 STRAIGHT SHANK COLLET CHUCK With Flat

Click to enlarge

ER25 3/4-2.0 STRAIGHT SHANK COLLET CHUCK With Flat

Item No.	C.750-ER25-2.0F
Price:	$83.25
Shipping:	In Stock - Ships Same Day *
Quantity:
* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

STP file

DWG file

DXF file

PDF file

View complete catalog page

This tool holder accepts all ER25 collets
Threaded for stop screw type 2 (not included)
Straight shank is .750" diameter 2.00" long
Shank has flat
All critical tool holder surfaces precision ground
Concentricity between shank and collet taper is .0002 or less
Made from alloy steel hardened to 54 - 56rc
Coolant through capability with 1/8-27 NPT in rear

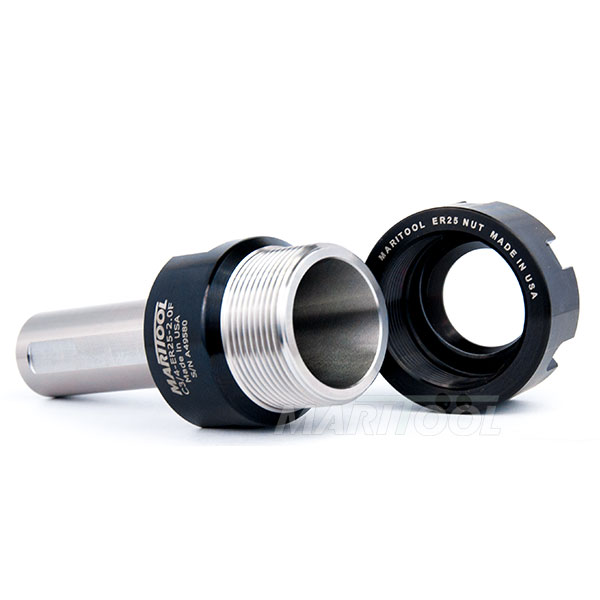

Collet nut is included
Distance between flats on body are 1.373 Inches apart
A dimension-- .750 dia. straight shank with flat
B dimension-- 2.00 shank length
C dimension-- 1.80 gage length
D dimension-- 1.50 body diameter
E note-- collet nut is 1.650 dia. and uses wrench part number ER25-WRENCH
Wrench is not included. Link is provided below
MariTool Part# is C3/4-ER25-2.0F

Body Diameter:	1.50
Collet Nut:	ER25
Collet Nut Outside Diameter:	1.650
Collet Size:	ER25
Coolant Thru:	Yes
Flat on Shank:	Yes
Gage Length:	1.80
Material:	Hardened Alloy Steel
Rear of Shank Threaded:	Yes 1/8-27 NPT
Shank Size:	.750 dia x 2.00 long
Wrench:	ER25-WRENCH
