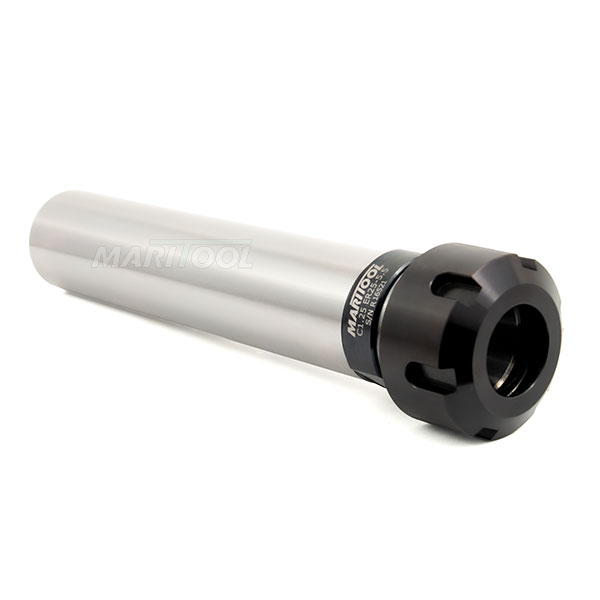

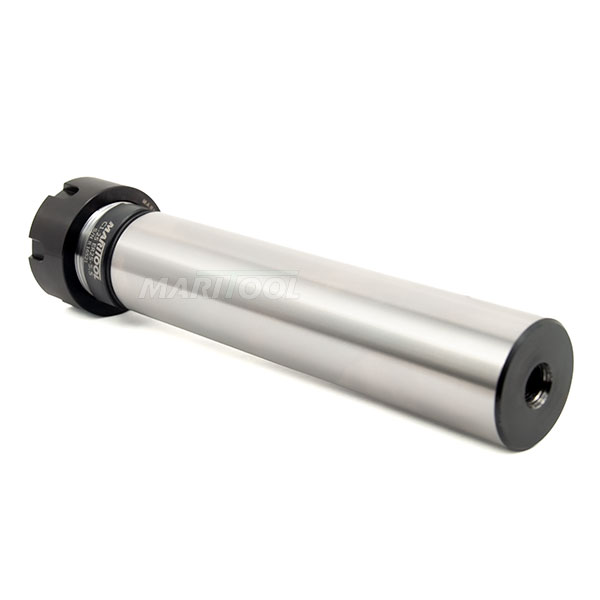

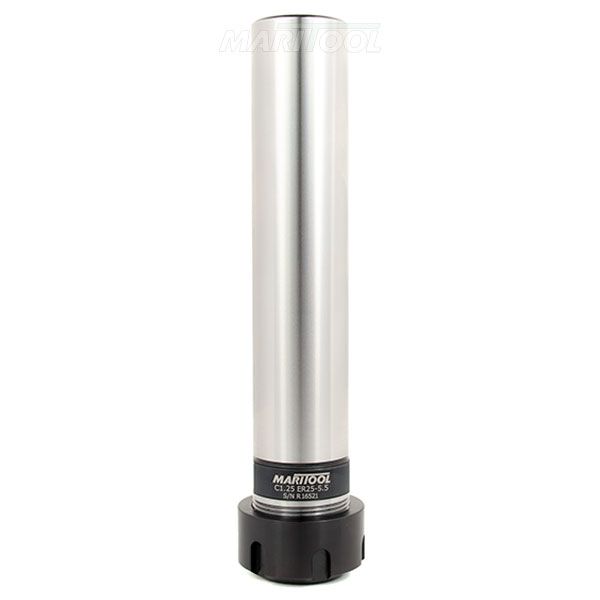

ER25 1.25-5.5 STRAIGHT SHANK COLLET CHUCK $138.75
ER25 1.25-5.5 STRAIGHT SHANK COLLET CHUCK
Click to enlarge

ER25 1.25-5.5 STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER25 1.25-5.5 STRAIGHT SHANK COLLET CHUCK
Click to enlarge
ER25 1.25-5.5 STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER25 1.25-5.5 STRAIGHT SHANK COLLET CHUCK
Click to enlarge
Item No. C1.25-ER25-5.5
Price: $138.75
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for C1.25-ER25-5.5

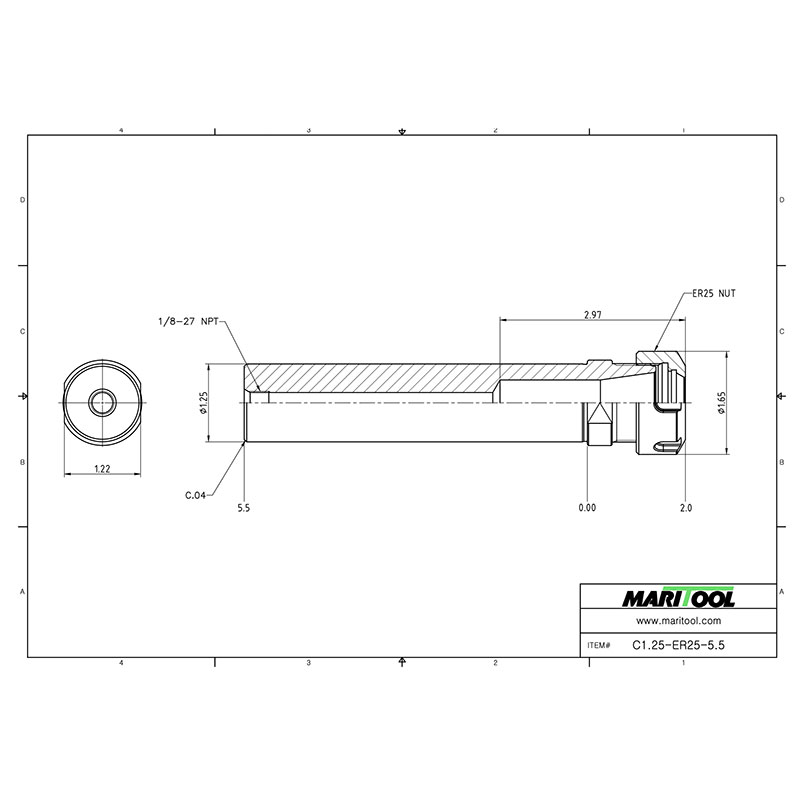

PDF file  DWG file  DXF file
Product Info

View complete catalog page

  • This tool holder accepts all ER25 collets
  • Threaded for stop screw type 2 (not included)
  • Straight shank is 1.25" diameter 5.5" long
  • Concentricity is less than .0002 inches
  • All critical tool holder surfaces precision ground
  • Made from hardened alloy steel
  • Coolant through capability with 1/8-27 NPT thread in rear

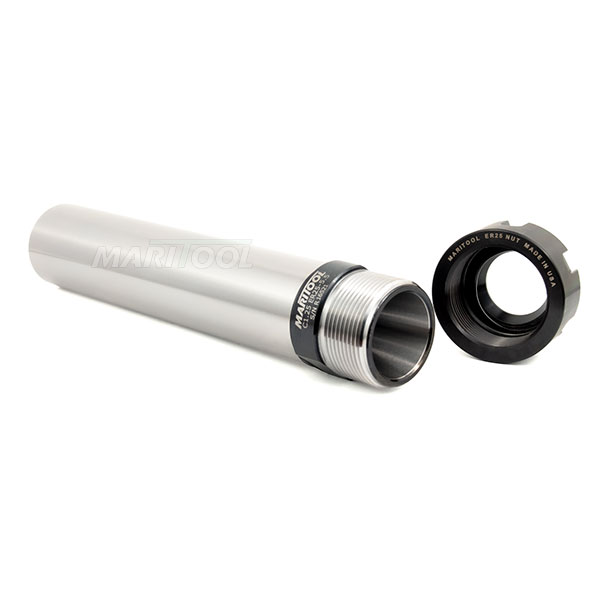

  • Collet nut is included
  • Collet nut is 1.650 dia. and uses wrench part number ER25-WRENCH
  • Wrench flats on body are 1.22 inches apart
  • Wrench is not included
  • MariTool Part# is C1.25-ER25-5.5
Product Specifications
Body Diameter:  1.375
Collet Nut:  ER25
Collet Nut Outside Diameter:  1.650
Collet Size:  ER25
Coolant Thru:  Yes
Flat on Shank:  No
Gage Length:  2.00
Material:  Hardened Alloy Steel
Rear of Shank Threaded:  Yes 1/8-27 NPT
Shank Size:  1.25 dia x 5.5 long
Weight:  2.0
Wrench:  ER25-WRENCH
