ER32 1.0-2.0F STRAIGHT SHANK COLLET CHUCK with FLAT $92.10

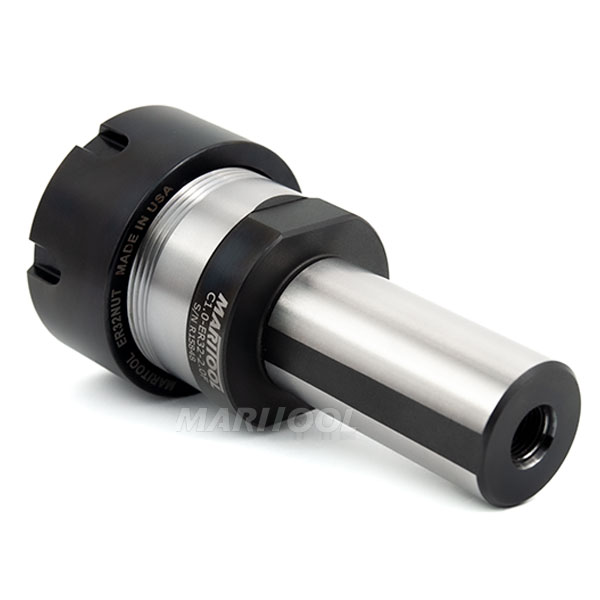

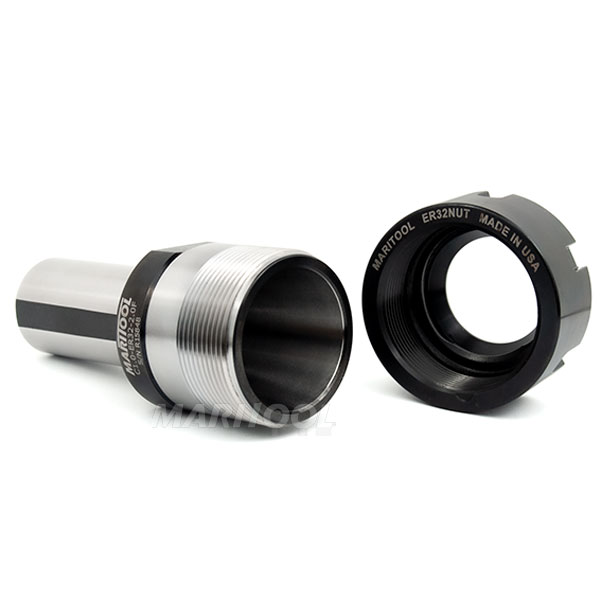

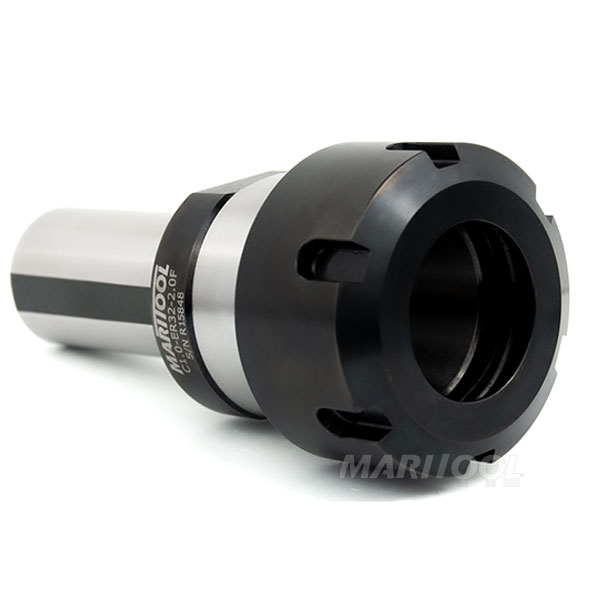

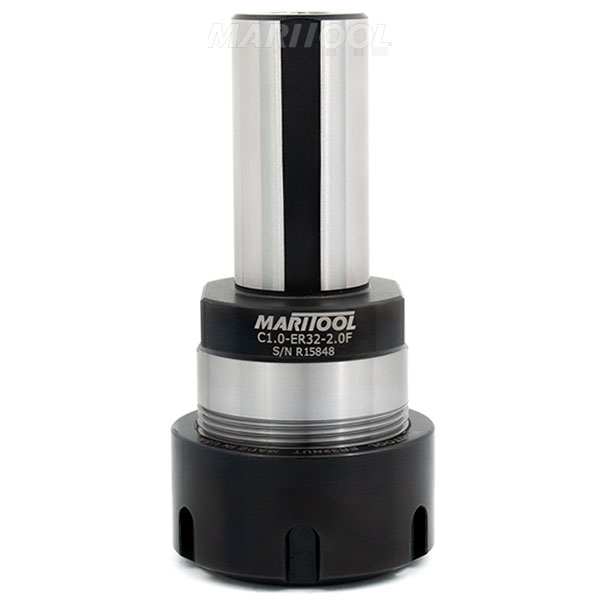

ER32 1.0-2.0F STRAIGHT SHANK COLLET CHUCK with FLAT
Click to enlarge

ER32 1.0-2.0F STRAIGHT SHANK COLLET CHUCK with FLAT
Click to enlarge 		ER32 1.0-2.0F STRAIGHT SHANK COLLET CHUCK with FLAT
Click to enlarge
ER32 1.0-2.0F STRAIGHT SHANK COLLET CHUCK with FLAT
Click to enlarge 		ER32 1.0-2.0F STRAIGHT SHANK COLLET CHUCK with FLAT
Click to enlarge
Item No. C1.0-ER32-2.0F
Price: $92.10
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for C1.0-ER32-2.0F
DWG file  PDF file  DXF file
Product Info

View complete catalog page

  • This tool holder accepts all ER32 collets
  • Threaded for stop screw type 2 (not included)
  • Shank is 1.00" diameter 2.0" long
  • Shank has flat
  • All critical tool holder surfaces precision ground
  • Concentricity from shank to collet ID is .0002 or less
  • Made from hardened alloy steel
  • Coolant through capability with rear 1/8-27 NPT thread
  • Wrench flats on body are 1.48 Inches apart
  • Collet nut is included

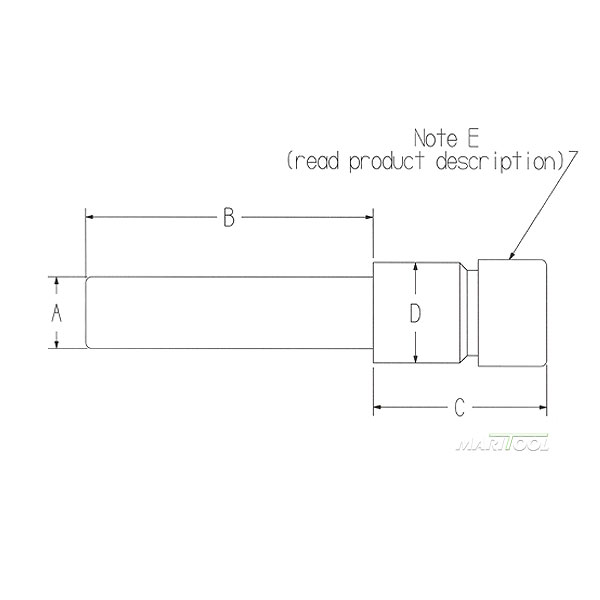

  • A dimension-- 1.00 dia. straight shank
  • B dimension-- 2.00 shank length
  • C dimension-- 2.00 gage length
  • D dimension-- 1.62 body diameter
  • E note-- collet nut is 1.968 dia. and uses wrench part number ER32-WRENCH
  • Wrench is not included.
  • MariTool Part# is C1.0-ER32-2.0F
Product Specifications
Body Diameter:  1.62
Collet Nut:  ER32
Collet Nut Outside Diameter:  1.968
Collet Size:  ER32
Coolant Thru:  Yes
Flat on Shank:  Yes
Gage Length:  2.0
Material:  Hardened Alloy Steel
Rear of Shank Threaded:  Yes 1/8-27 NPT
Shank Size:  1.00 dia x 2.00 long
Wrench:  ER32-WRENCH
