Ball Coupler - Ball Receiver Kit (One Each) $206.00
Ball Coupler - Ball Receiver Kit (One Each)
Click to enlarge


Item No. OV-100-BCBR-KIT
Price: $206.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Product Info

View complete catalog page

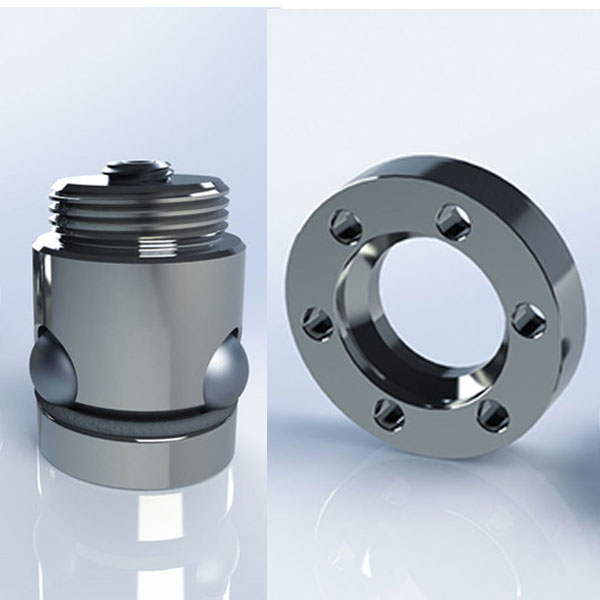

Kit includes 1x - Orange Vise Ball Coupler and 1x - Orange Vise Ball Receiver

  • Precision machined from hardened stainless steel with a patented design, our quick-change Orange Ball Couplers™ unlock unseen productivity and potential in most machine shops.
  • Couplers thread into the underside of a fixture plate or Orange Vise™, just like the pull studs of a zero-point system, simplifying preparation by only requiring one-side machining.
  • Couplers remain semi-permenantly attached to the fixture for higher accuracy and are self-compensating for preparation error and fixture thickness.
  • The idea behind our low cost system isn't just to save you money, but also to provide financially-feasible way to implement a universal quick-change system across your entire shop.
  • Nominal Diameter: 1.5"
  • Thread Size: 1.25"-12 tpi
  • Bore Depth: 0.375"
  • Thread Depth: 0.8125"
  • Lower Hex Size: 3/4"
  • Mounting Torque: 60 ft-lbs
  • Usage Notes: Do not exceed 15 lbs-ft when tightening the coupler
Note: Actual product appearance may differ slightly from photo.
