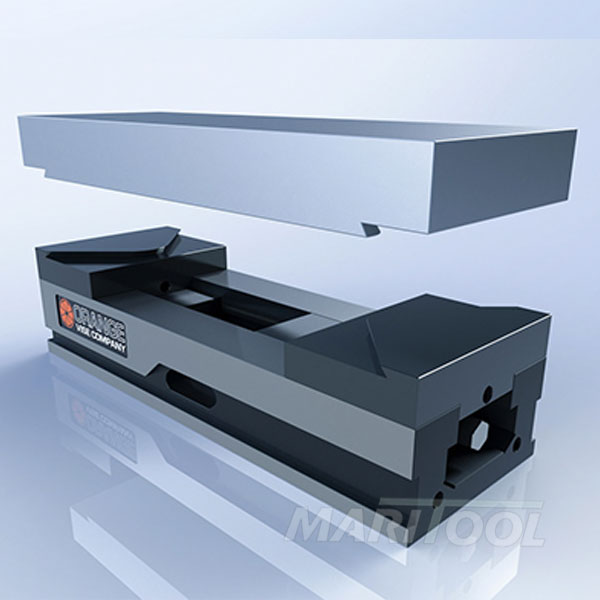

Introducing the Twin-Delta™ vise pallet system by Orange Vise. Patent Pending.

Compatible with all 6" Orange Vises ever made. Pallet dimensions: 17.5" x 6" x 2" (nominal)

Speed, precision, or low cost. Pick any three. Swap out pallets in seconds with tenths repeatability. Alignment is virtually effortless, significantly reducing physical effort when leaning into a VMC. Just make sure everything is clean before reinstalling! Torque the vise to 40 ft lbs.

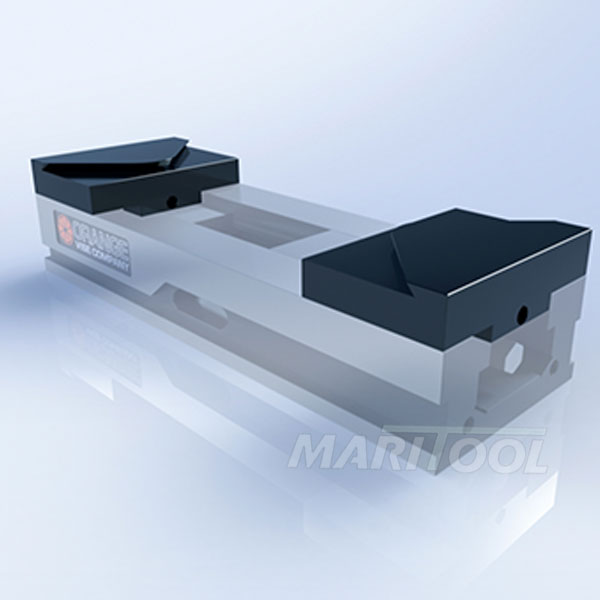

Type III hard-anodized master jaws are required for use and are sold separately.

Pallets are not anodized, but you can send your pallets out to your local anodizer yourself. We recommend doing this after all machining has been completed so that the working surfaces will be coated. Dimensional change of the Delta interface due to anodizing will not affect operation - absolute position will change, but repeatability will not. If you use steel inserts for your fixture clamps, make sure to install them after anodizing, and not before.
