Orange Vise Vise Base Plugs - Plain $29.95

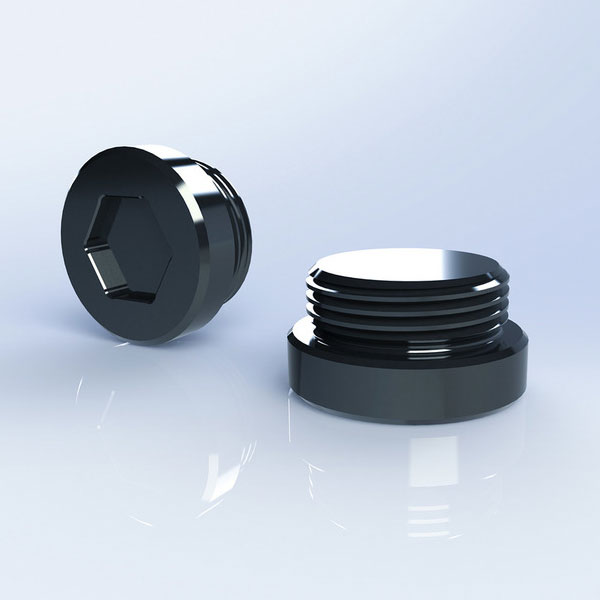

Orange Vise Vise Base Plugs - Plain
Click to enlarge


Item No. OV-100-907
Price: $29.95
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Product Info

View complete catalog page

Plain vise plugs prevent chips from building up the holes.

Counterbored vise base plugs allow you to use a 1/2"-13 button head cap screw to secure your vise directly to the table. The base of the counterbore sits 1/2" above the base of the vise. Add 1/2" to the depth of your T-slot, subtract 1/8-1/4", and that's the length of screw you need. Make sure the screw doesn't bottom out on the T-slot, or the vise will come loose during machining.

Both types of plugs are made of low carbon steel with a black oxide coating. Plugs are secured from the bottom using a 3/4" allen. You can alternatively use 3/4" hex stock, or an appropriately sized hex nut, torqued with a 3/4" socket.

Sold in pairs.

Made in USA
