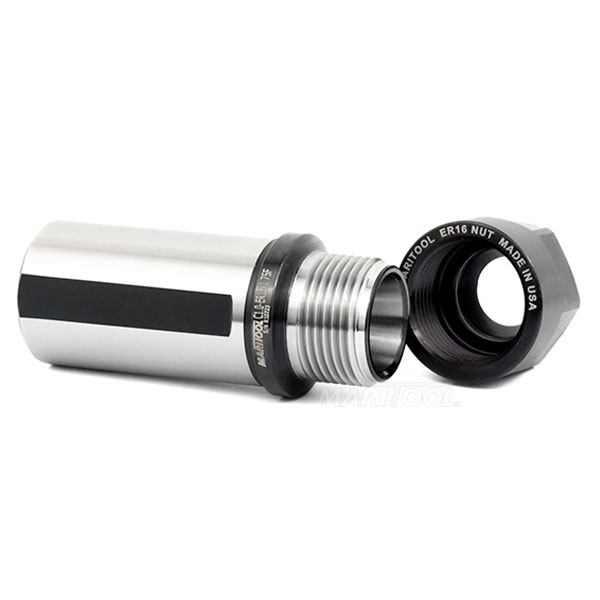

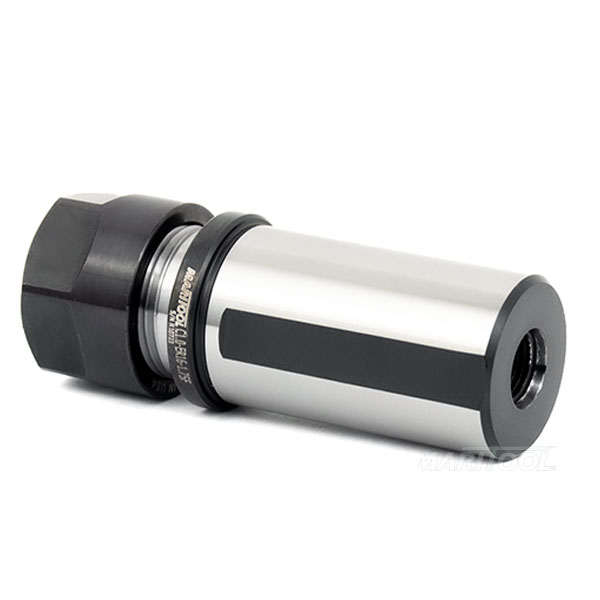

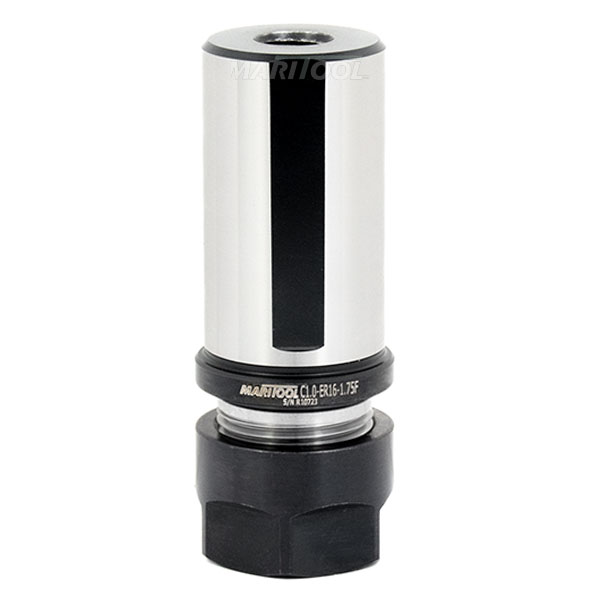

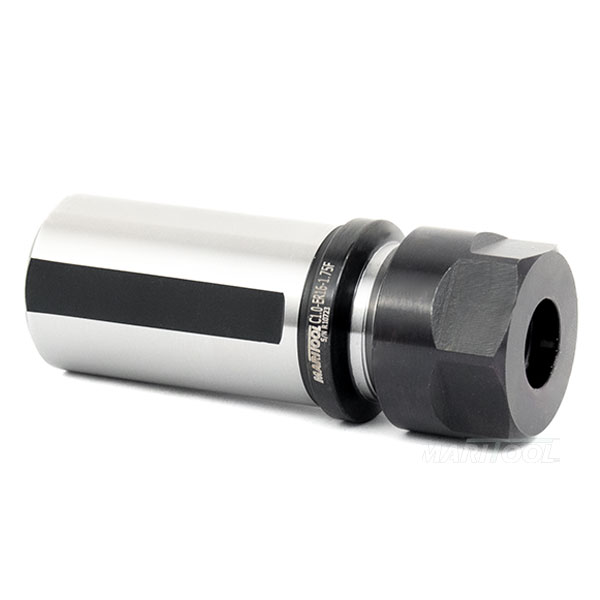

ER16 1.0-1.75 STRAIGHT SHANK COLLET CHUCK With FLAT
$72.00
Item No.
C1.0-ER16-1.75F
Price:
$72.00
Shipping:
Contact us
Quantity:
Add to Cart
Please
contact us
for a Shipping Estimate
Available Downloads for C1.0-ER16-1.75F
Product Info
View complete catalog page
This tool holder accepts all ER16 collets
Threaded for
stop screw type 1
(not included)
Straight shank is 1.0" diameter 1.75" long
Shank has flat
Concentricity is less than .0002 inches
All critical tool holder surfaces precision ground
Made from hardened alloy steel
Coolant through capability with 1/8-27 NPT thread in rear
Flat on shank makes this holder ideal for lathe application
Collet nut is included
MariTool Part# is C1.0-ER16-1.75F
Product Specifications
Body Diameter:
1.10
Collet Nut:
ER16
Collet Nut Outside Diameter:
1.10
Collet Size:
ER16
Coolant Thru:
Yes
Flat on Shank:
Yes
Gage Length:
1.18
Material:
Hardened Alloy Steel
Rear of Shank Threaded:
Yes 1/8-27 NPT
Shank Size:
1.00 dia x 1.75 long
Wrench:
ER16-WRENCH
