ER16 5/8-1.5 STRAIGHT SHANK COLLET CHUCK With FLAT $70.50

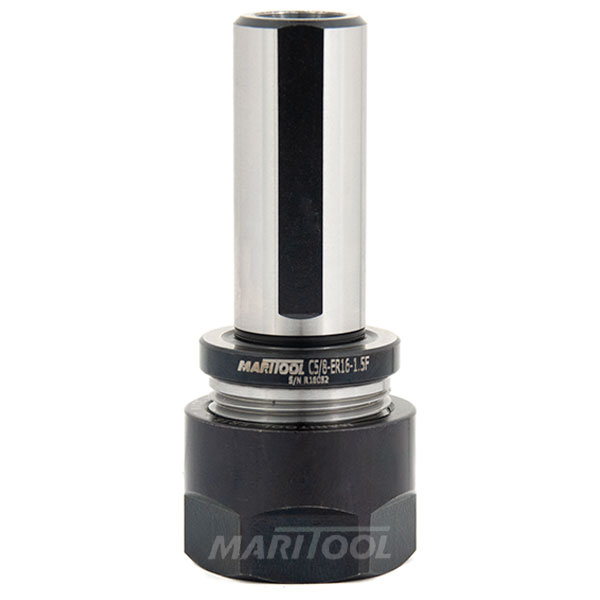

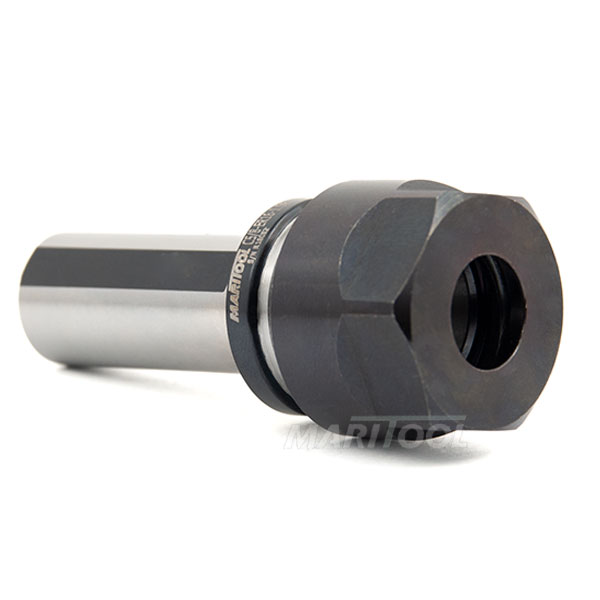

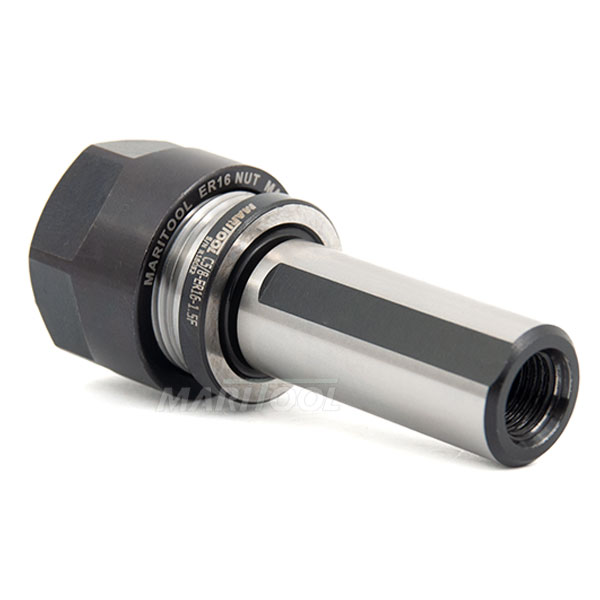

ER16 5/8-1.5 STRAIGHT SHANK COLLET CHUCK With FLAT
Click to enlarge

Item No. C5/8-ER16-1.5F
Price: $70.50
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for C5/8-ER16-1.5F
PDF file  DWG file  DXF file
Product Info

View complete catalog page

  • This tool holder accepts all ER16 collets
  • Threaded for stop screw type 1 (not included)
  • Straight shank is .625" diameter 1.5" long
  • Shank has flat
  • Concentricity is less than .0002 inches
  • All critical tool holder surfaces precision ground
  • Made from hardened alloy steel
  • Coolant through capability
  • Flat on shank makes this holder ideal for lathe application

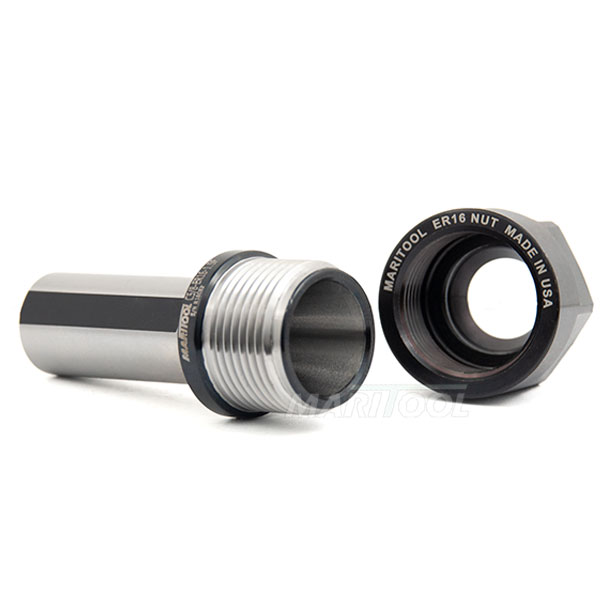

  • Collet nut is included
  • MariTool Part# is C5/8-ER16-1.5F
Product Specifications
Collet Nut:  ER16
Collet Nut Outside Diameter:  1.10
Collet Size:  ER16
Coolant Thru:  Yes
Flat on Shank:  Yes
Gage Length:  1.10
Material:  Hardened Alloy Steel
Rear of Shank Threaded:  Yes 1/8-27 NPT
Shank Size:  .625 dia x 1.5
Wrench:  ER16-WRENCH
