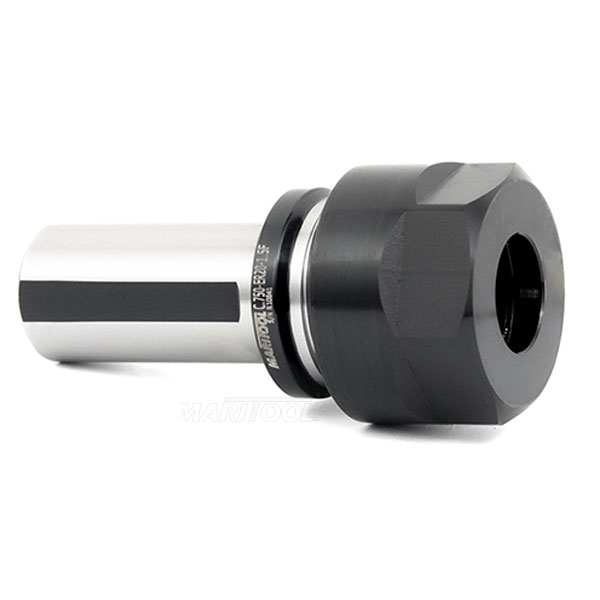

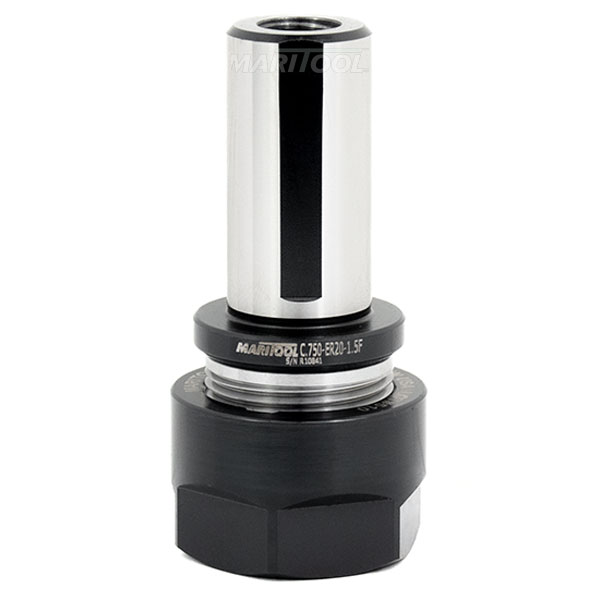

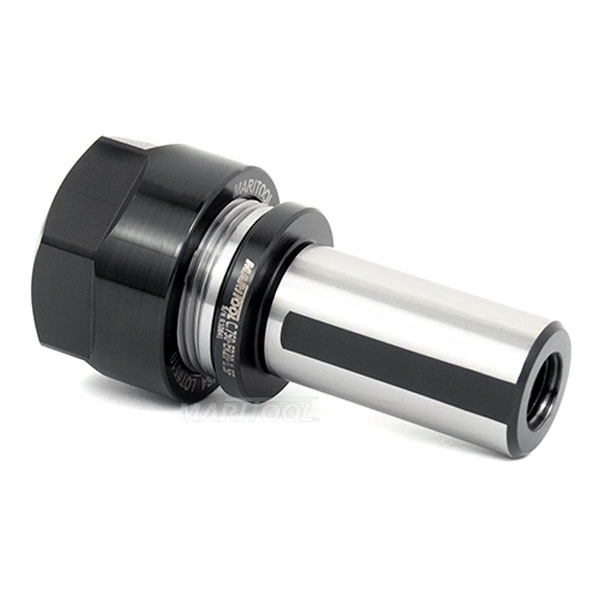

ER20 3/4-1.5 STRAIGHT SHANK COLLET CHUCK With FLAT

Click to enlarge

ER20 3/4-1.5 STRAIGHT SHANK COLLET CHUCK With FLAT

Item No.	C.750-ER20-1.5F
Price:	$69.20
Shipping:	In Stock - Ships Same Day *
Quantity:
* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

DXF file

PDF file

DWG file

View complete catalog page

This tool holder accepts all ER20 collets
Threaded for stop screw type 1 (not included)
Straight shank is .750" diameter 1.5" long
Shank has flat
Concentricity is less than .0002 inches
All critical tool holder surfaces precision ground
Made from hardened alloy steel
Coolant through capability with 1/8-27 NPT thread in rear
Flat on shank makes this holder ideal for lathe application

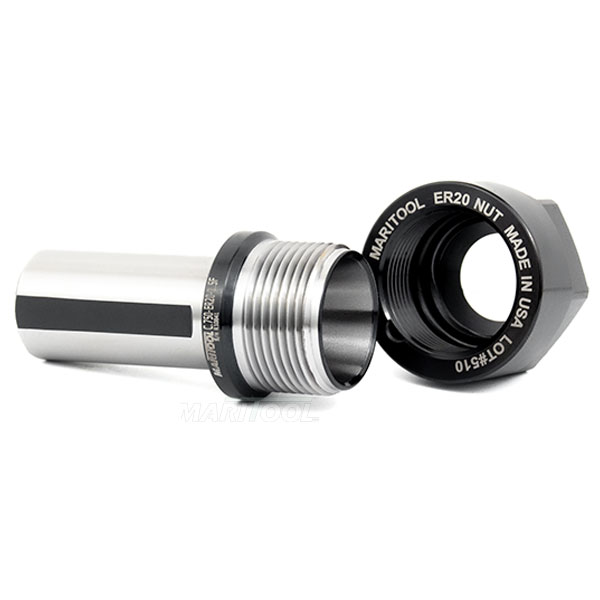

Collet nut is included
MariTool Part# is C.750-ER20-1.5F

Body Diameter:	1.10
Collet Nut:	ER20
Collet Nut Outside Diameter:	1.340
Collet Size:	ER20
Coolant Thru:	Yes
Flat on Shank:	Yes
Gage Length:	1.24
Material:	Hardened Alloy Steel
Rear of Shank Threaded:	Yes 1/8-27 NPT
Shank Size:	.750 dia x 1.5 long
Wrench:	ER20-WRENCH
